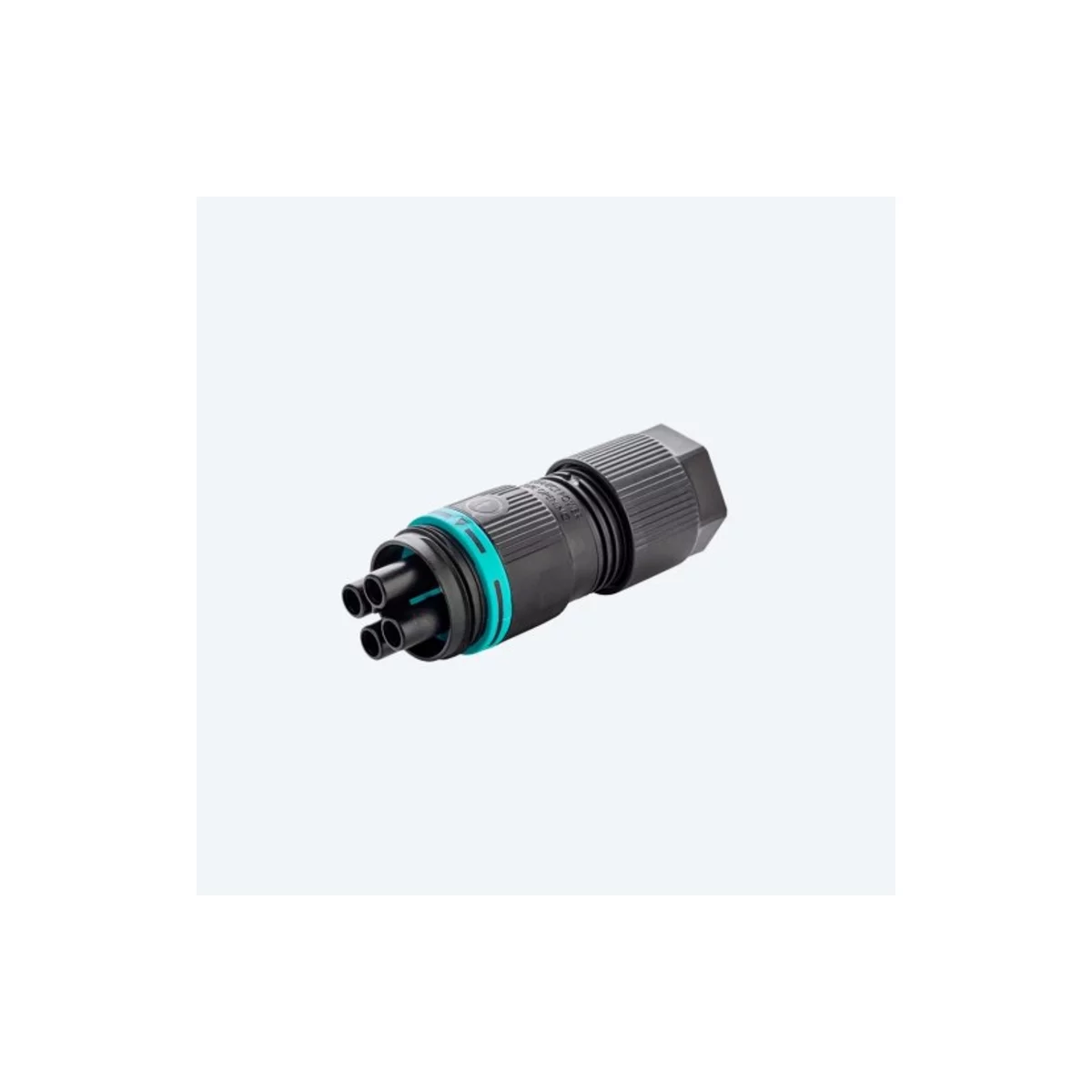

Mini socket connector, Screw
GRD IP66/IP68

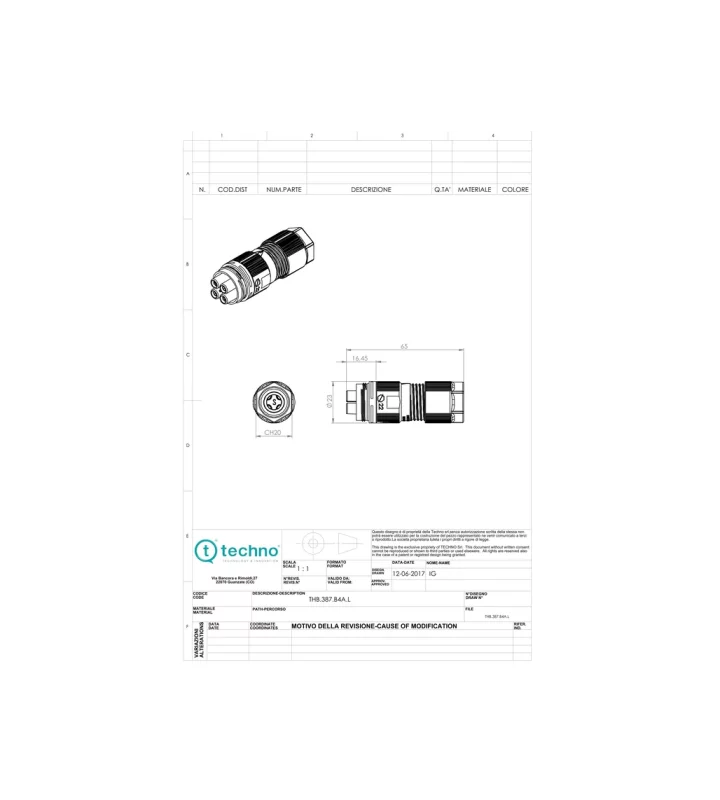

THB.387.B4E.L
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH387 |
| Number of contacts | 4 |
| Gender | Female |
| Contact terminals | Screw |
| Cable section | 0,5 - 1,5 mm² |
| Min-max cable diameter | 7,0 - 13,5 mm |
| Protection degree | IP66/IP68 |
| Protection degree details | 3 bar (30m / 3h) |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Standards | EN61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 17.5 A |
|---|---|
| Rated voltage | 500 V |
| Impulse withstand voltage | 4 kV |
Material
| Impulse withstand category | II |
|---|---|
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 UL94 V2 |
| Grommets | TPE |
| Co-moulded seals | TPE |
| Contact screw terminals | Brass |
| Standard/Piercing screws | Steel |
Varianten
| Art. number | Number of contacts | Cable section | Min-max cable diameter |
|---|---|---|---|
| THB.387.B3E | 3 | 0,5 - 2,5 mm² | 7,0 - 12,0 mm |
| THB.387.B4E | 4 | 0,5 - 1,5 mm² | 7,0 - 12,0 mm |
| THB.387.B5E | 5 | 0,25 - 1,5 mm² | 7,0 - 12,0 mm |
| THB.387.B3E.L | 3 | 0,5 - 2,5 mm² | 7,0 - 13,5 mm |
| THB.387.B5E.L | 5 | 0,25 - 1,5 mm² | 7,0 - 13,5 mm |
