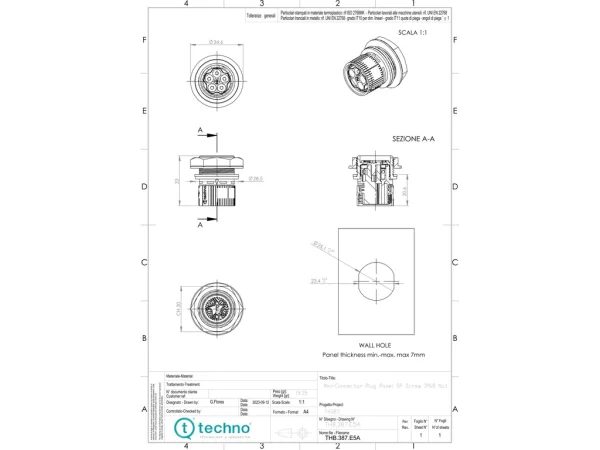

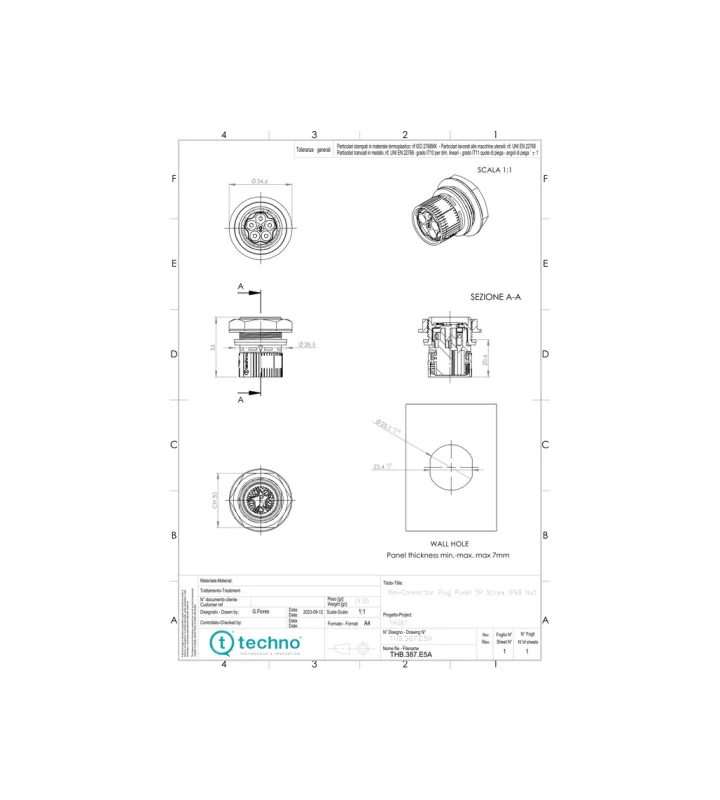

Mini plug connector
Fixing nut included, IP66/IP68
THB.387.E4A
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH387 |
| Number of contacts | 4 |
| Gender | Male |
| Contact terminals | Contact screw terminals. For cable section < 1.0 mm² |
| Cable section | 0,5 - 2,5 mm² |
| Min-max cable diameter | 7,0 - 12,0 mm |
| Protection degree | IP66/IP68 |
| Protection degree details | 3 bar (30m / 3h) |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Note | Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. |
| Standards | EN61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 17.5 A |
|---|---|
| Rated voltage | 500 V |
| Impulse withstand voltage | 4 kV |
Material
| Impulse withstand category | II |
|---|---|
| Cable glands | PA66 UL94 V2 |
| Terminal block housing | PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 |
| Grommets | TPE green |
| Co-moulded seals | TPE green |
| Contact screw terminals | Brass nickel plated |
| Standard/Piercing screws | M3 steel zinc plated |
Varianten
| Art. number | Number of contacts | Contact terminal | Contact terminals | Cable section | Standard/Piercing screws |
|---|---|---|---|---|---|
| THB.387.E2A | 2 | Screw | Contact screw terminals. For cable section < 1.0 mm² | 0,5 - 2,5 mm² | M3 steel zinc plated |
| THB.387.E3A | 3 | Screw | Contact screw terminals. For cable section < 1.0 mm² | 0,5 - 2,5 mm² | M3 steel zinc plated |
| THB.387.E5A | 5 | Screw | Contact screw terminals. For cable section < 1.0 mm² | 0,5 - 1,5 mm² | M3 steel zinc plated |
| THP.387.E2A | 2 | Piercing | Piercing clip terminals max 1,5 mm² | 0,5 - 1,5 mm² | M3 steel zinc brass plated |
