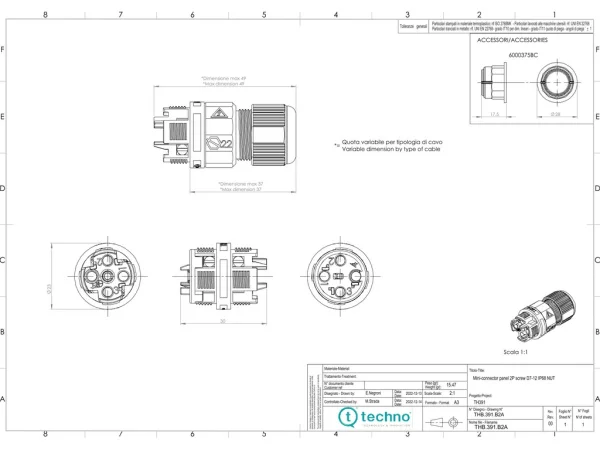

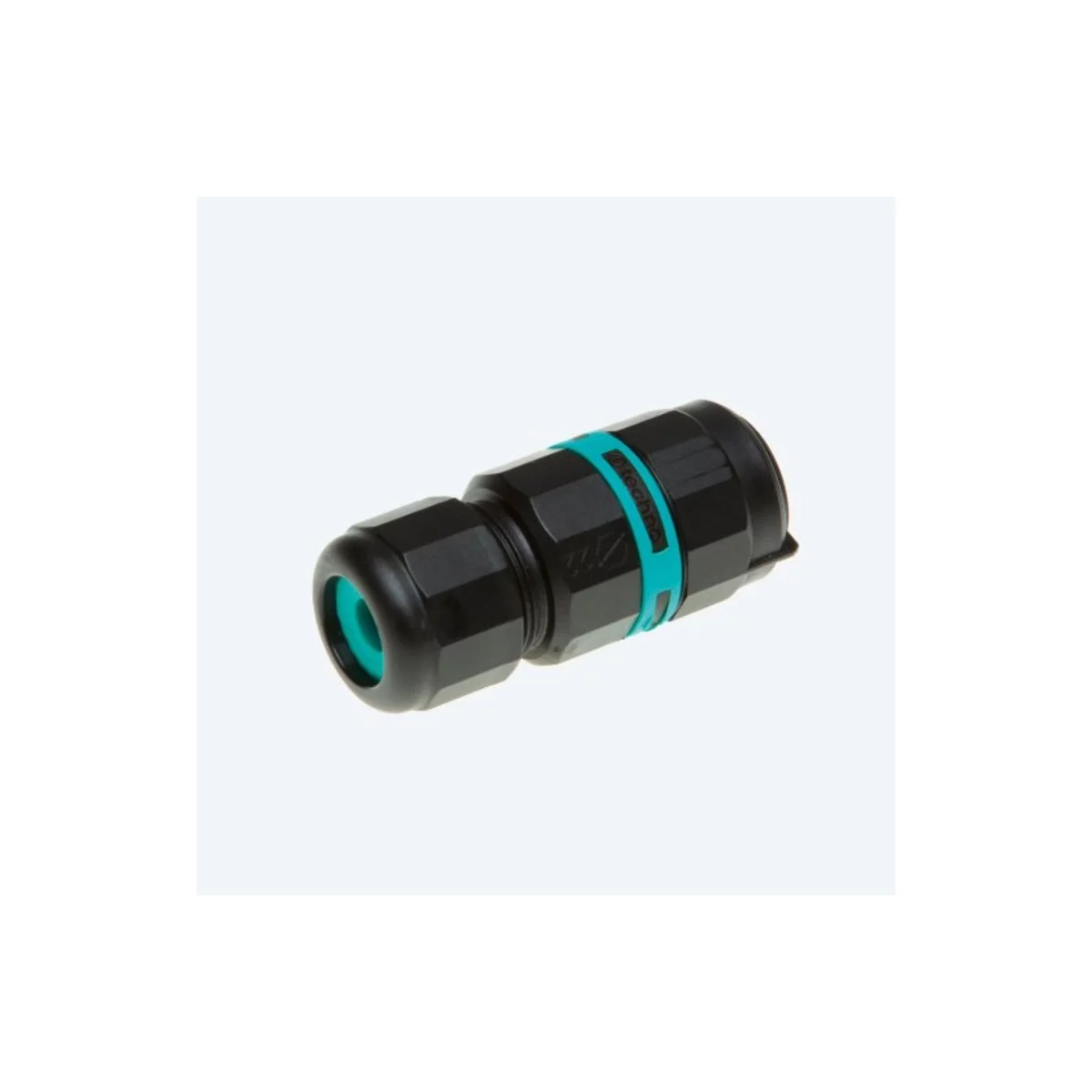

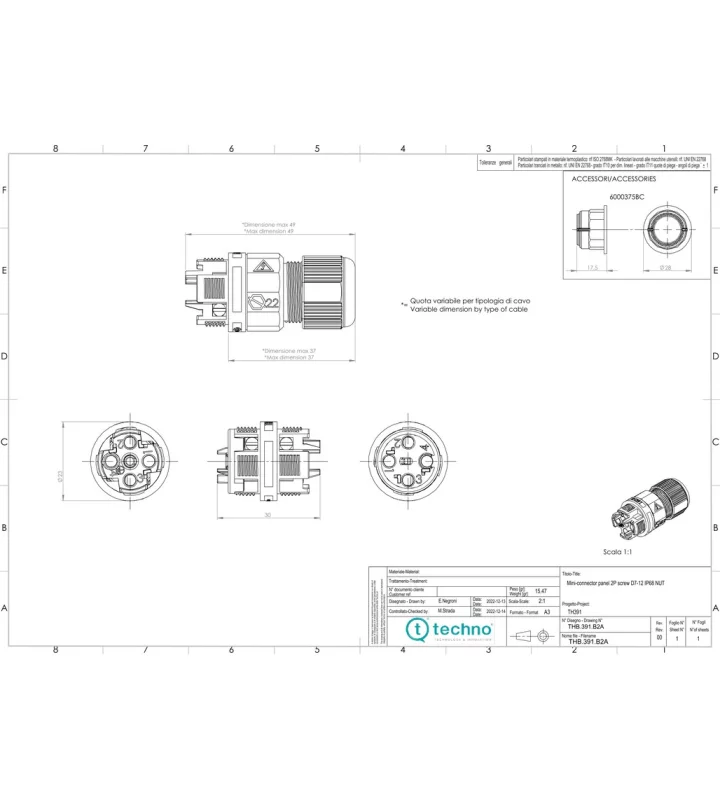

Joint connector panel-mounted NC, Screw
M20, IP68
THB.391.B2A
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEETUBE |
|---|---|
| Subseries | TH391 |
| Number of contacts | 2 |
| Product shape | I |
| Contact terminals | Screw |
| Cable section | 0,5 - 4,0 mm² |
| Min-max cable diameter | 7,0 - 12,0 mm |
| Cable entries/exits | 2 ways |
| Protection degree | IP68 |
| Protection degree details | IP68 (30m/2h) |
| Max. temperature | T85 |
| Tracking index | PTI 250 |
Electrical parameters
| Rated current | 32 A |
|---|---|
| Rated voltage | 450 V |
Material
| Connector housing | PA66 GF UL94 V0 |
|---|---|
| Cable glands | PA66 UL94 V2 |
| Grommets | TPE |
| Co-moulded seals | TPE |
| Contact screw terminals | Brass |
| Standard/Piercing screws | Steel |
Varianten
| Art. number | Number of contacts |
|---|---|
| THB.391.B3A | 3 |
| THB.391.B4A | 4 |
