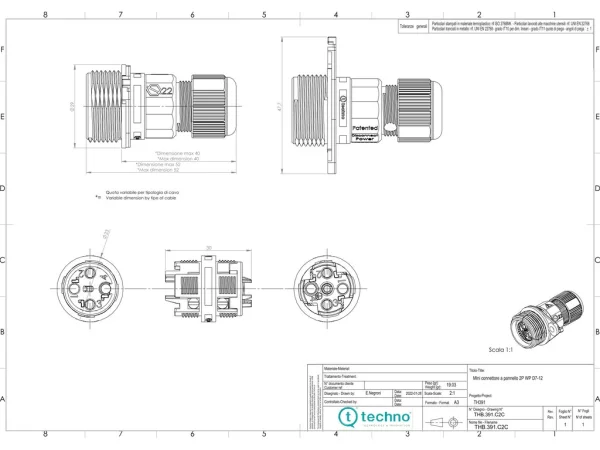

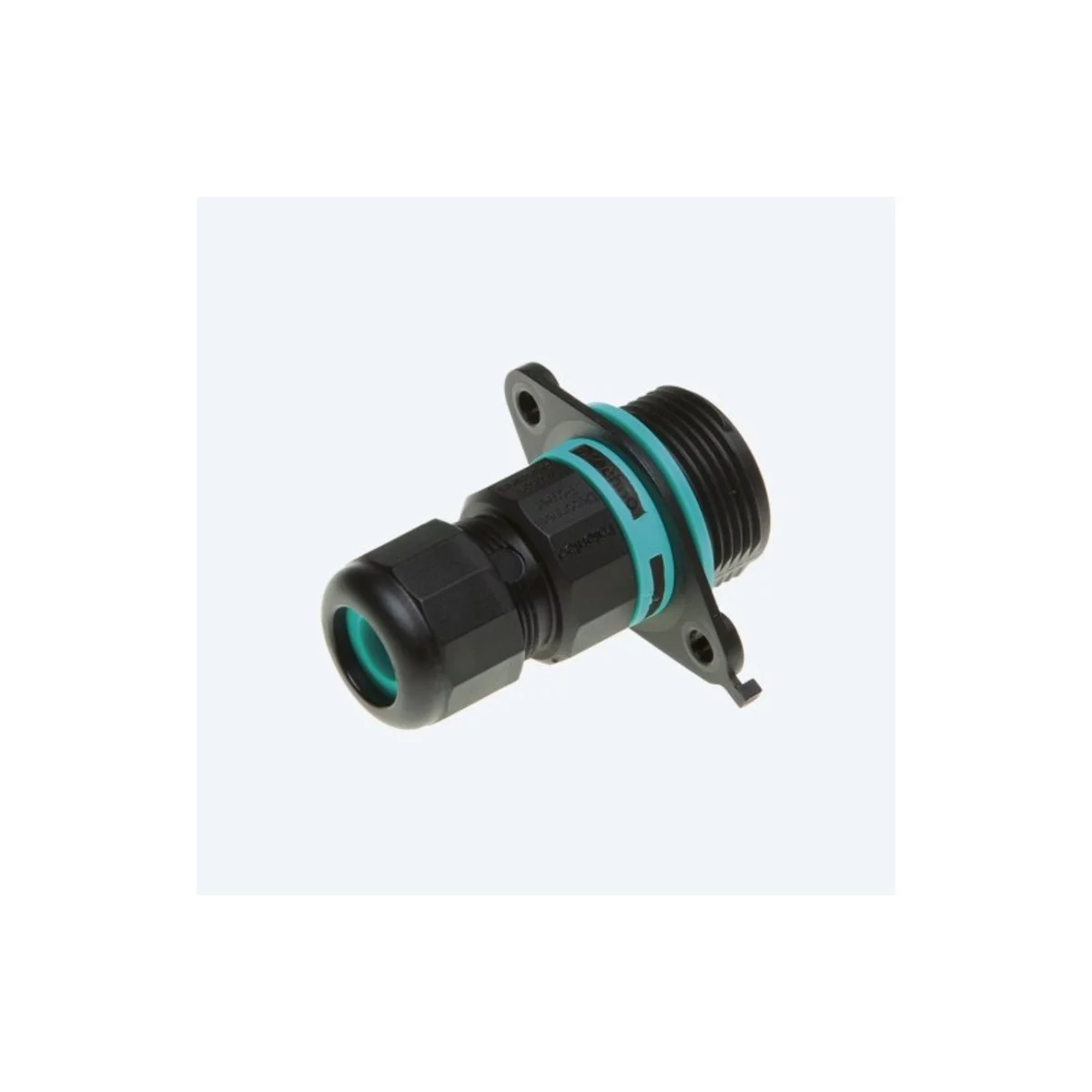

Joint connector panel-mounted, screw with wire protector
M25, IP68
not including fixing nut
THB.391.C3C
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEETUBE |
|---|---|
| Subseries | TH391 |
| Number of contacts | 3 |
| Product shape | I |
| Contact terminals | Scew |
| Cable section | 0,25 - 2,5 mm² |
| Min-max cable diameter | 7,0 - 12,0 mm |
| Cable entries/exits | 2 ways |
| Protection degree | IP68 |
| Protection degree details | IP68 (30m/2h) |
| Max. temperature | T85 |
| Standards | EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004 |
| Tracking index | PTI 250 |
Electrical parameters
| Rated current | 24 A |
|---|---|
| Rated voltage | 450 V |
Material
| Connector housing | PA66 GF UL94 V0 |
|---|---|
| Cable glands | PA66 UL94 V2 |
| Grommets | TPE |
| Co-moulded seals | TPE |
| Contact screw terminals | Brass |
| Standard/Piercing screws | Steel |
Varianten
| Art. number | Number of contacts | Contact terminals |
|---|---|---|
| THB.391.C2C | 2 | Screw |
| THB.391.C4C | 4 | Screw |
