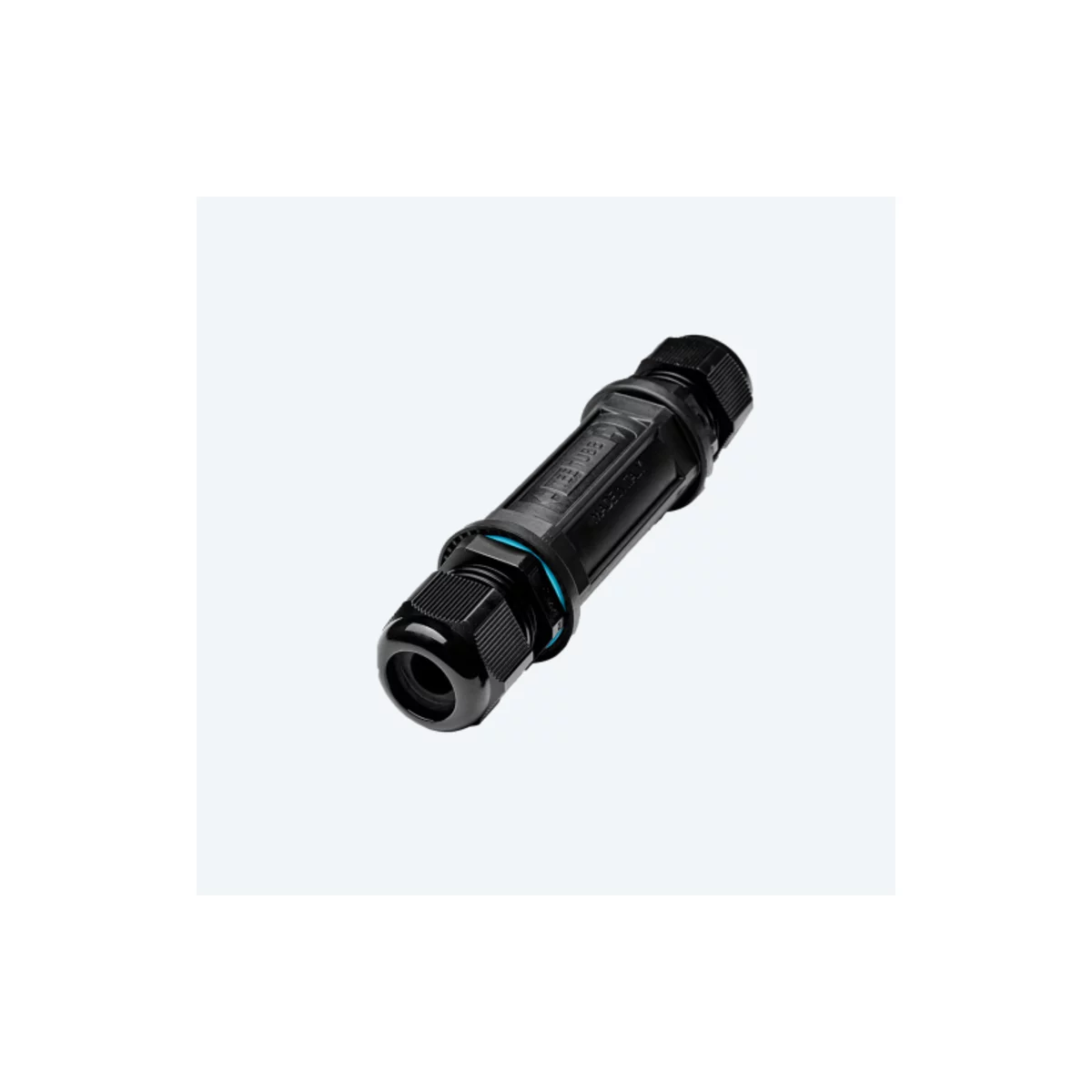

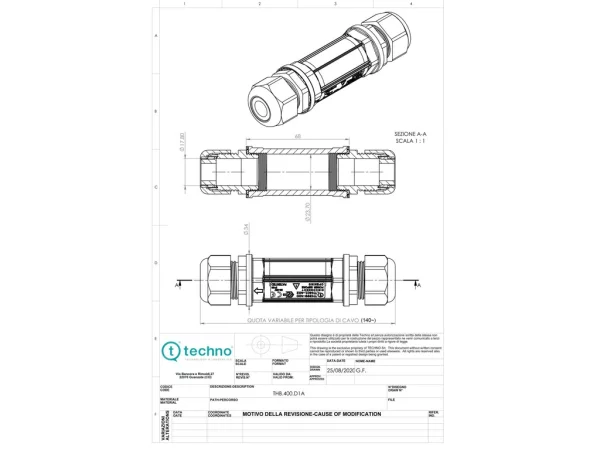

Joint connector, screw with wire protection
IP68
cable Ø 8,0-17,0 mm
THB.400.D3A
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEETUBE |
|---|---|
| Subseries | TH400 |
| Number of contacts | 5 |
| Product shape | I |
| Contact terminals | Screw |
| Cable section | 0,25 - 2,5 mm² |
| Min-max cable diameter | 8,0 - 17,0 mm |
| Cable entries/exits | 2 ways |
| Protection degree | IP68 |
| Protection degree details | IP68 (50m/1h) |
| Max. temperature | T125 |
| Standards | EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004 |
| Tracking index | PTI 250 |
Electrical parameters
| Rated current | 24 A |
|---|---|
| Rated voltage | 450 V |
Material
| Body | PA66GF UL94 V0 |
|---|---|
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | POLYAMIDE PA6 V-2 |
| Grommets | TPE |
| Contact screw terminals | Brass |
| Standard/Piercing screws | Steel |
Varianten
| Art. number | Number of contacts |
|---|---|
| THB.400.D3M | 2 |
| THB.400.D3B | 4 |
| THB.400.D3D | 6 |
| THB.400.D3N | 3 |
