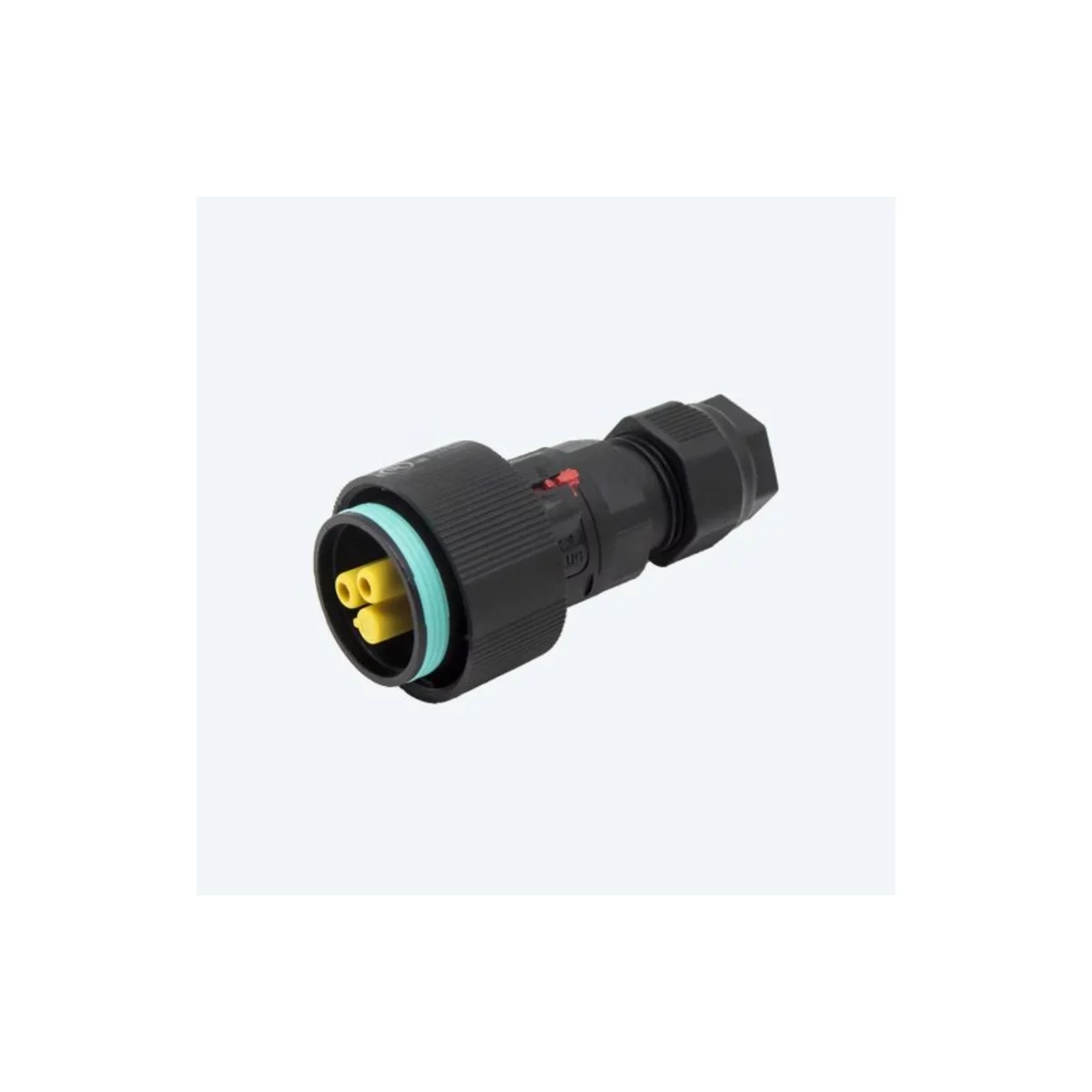

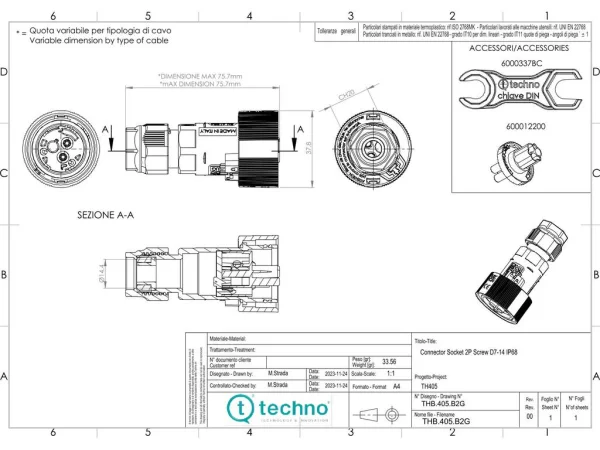

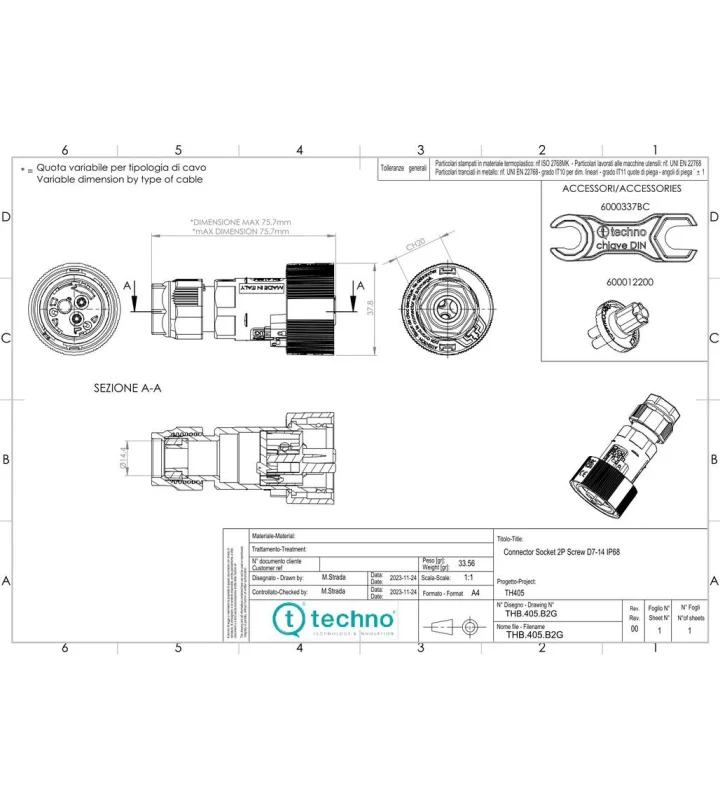

Socket connector screw D7-13.5
IP66/IP68/IP69
THB.405.B2G
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH405 |
| Number of contacts | 2 |
| Gender | Female |
| Contact terminals | Contact screw terminals. For cable section < 1.0 mm² |
| Cable section | max 4,0 |
| Min-max cable diameter | 7,0 - 13,5 mm |
| Protection degree | IP66/IP68/IP69 |
| Protection degree details | IP68 (10m/1h |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Note | Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. |
| Max. temperature | T125 |
| Standards | EN61984:2001 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 25 A |
|---|---|
| Rated voltage | 400 V |
| Impulse withstand voltage | 4 kV |
Material
| Impulse withstand category | II |
|---|---|
| Lock nuts | PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 |
| Connector housing | PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035 |
| Terminal block housing | PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 |
| Grommets | TPE/silicon |
| Seals | TPE/silicon |
| Contact screw terminals | Brass nickel plated OR Brass silver plated (THX.405.XXX.AG) |
| Standard/Piercing screws | M3 steel zinc plated |
Varianten
| Art. number | Rated current | Impulse withstand voltage | Number of contacts | Contact terminal | Nominal current (A) | Contact terminals | Cable section | Standard/Piercing screws |
|---|---|---|---|---|---|---|---|---|
| THB.405.B2A | 17.5 A | 6 kV | 5 | Screw | >10 - ≤20 A | Contact screw terminals. For cable section < 1.0 mm² | max 4,0 | M3 steel zinc plated |
| THB.405.B2B | 25 A | 4 kV | 3 | Screw | >20 - ≤30 A | Contact screw terminals. For cable section < 1.0 mm² | max 4,0 | M3 steel zinc plated |
| THB.405.B2E | 17.5 A | 6 kV | 6 | Screw | >10 - ≤20 A | Contact screw terminals. For cable section < 1.0 mm² | max 4,0 | M3 steel zinc plated |
| THP.405.B2A | 17.5 A | 6 kV | 5 | Piercing | >10 - ≤20 A | Piercing clip terminal max 1,5 mm² | 0,5 - 1,5 mm² | M3 steel zinc brass plated |
