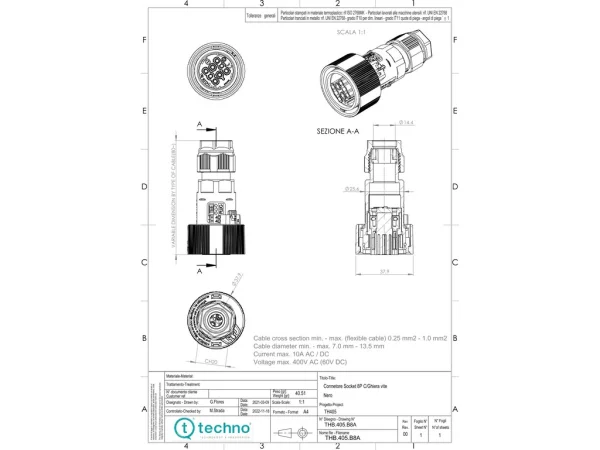

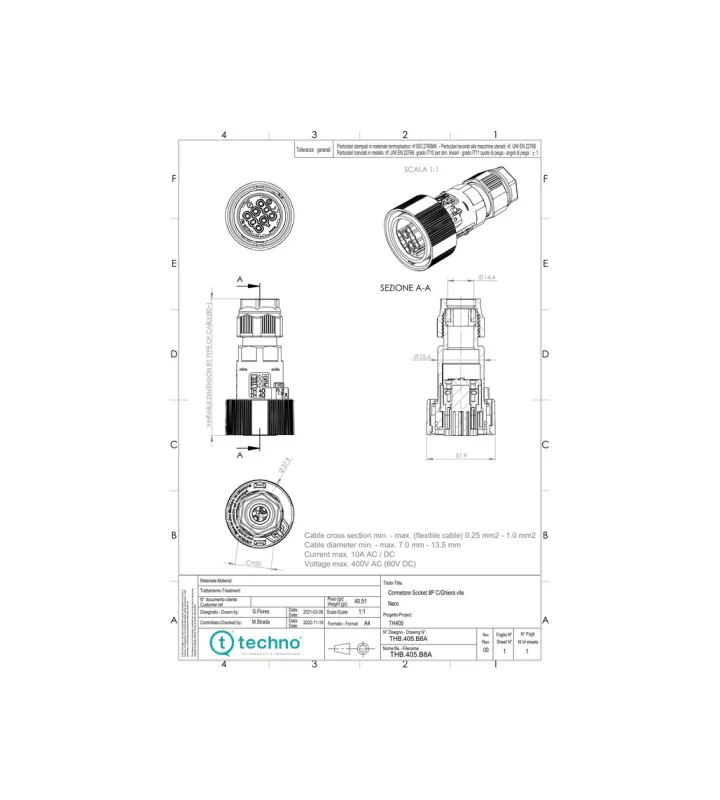

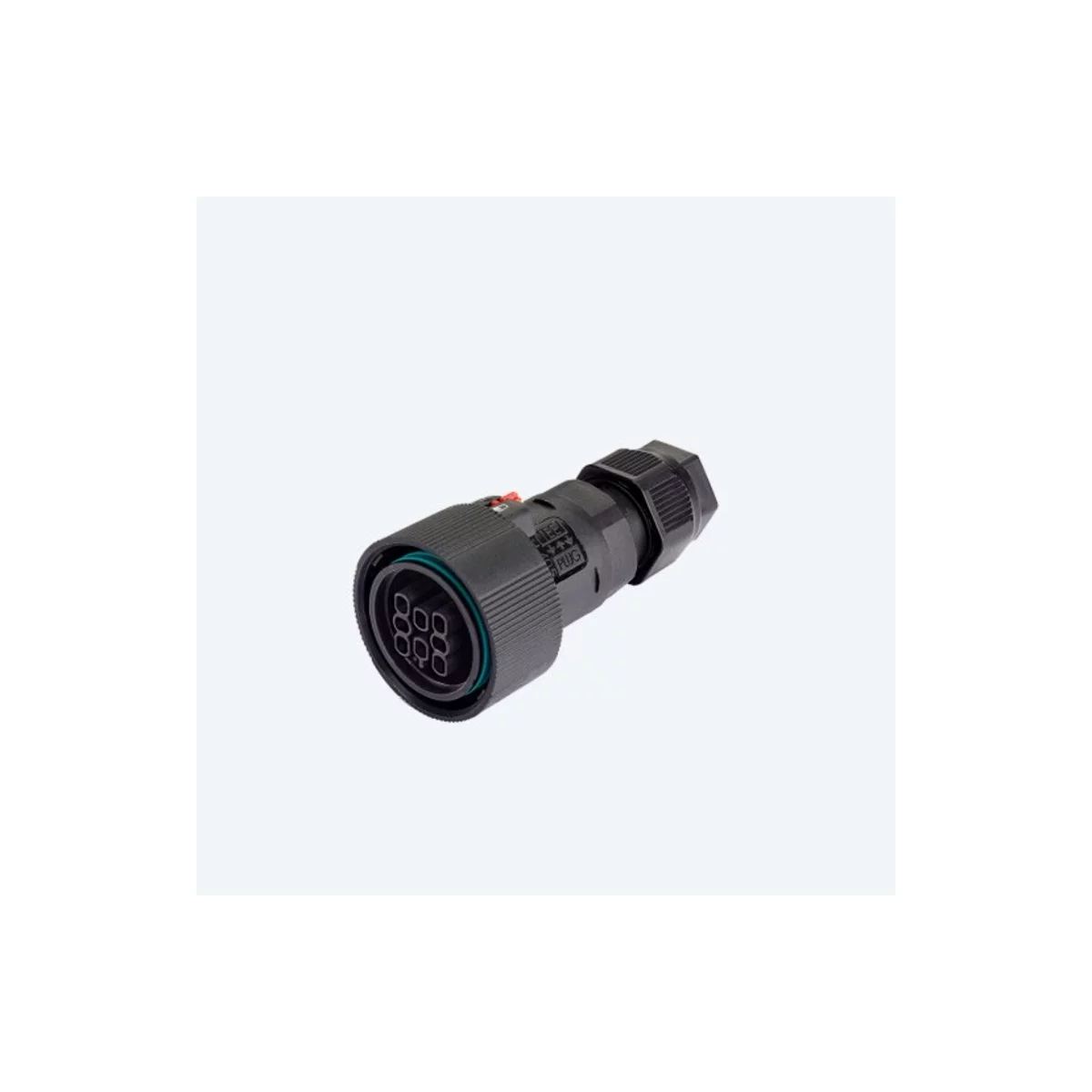

Socket connector 8P screw D7-13.5
IP66/IP68/IP69
With female locking
THB.405.B8A
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH405 |
| Number of contacts | 8 |
| Gender | Female |
| Contact terminals | Contact screw terminals for cable section < 1,0 mm² |
| Cable section | 0,25 - 1,0 mm² |
| Min-max cable diameter | 7,0 - 13,5 mm |
| Protection degree | IP66/IP68/IP69 |
| Protection degree details | 10m/1h |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Standards | EN 61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 10 A |
|---|---|
| Rated voltage | 400 V |
| Impulse withstand voltage | 2.5 kV |
Material
| Impulse withstand category | II |
|---|---|
| Distributor and connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 GF UL94 V2 |
| Seals | TPE |
| Screw | Steel |
