Plug connector, Screw
IP66/IP68/IP69

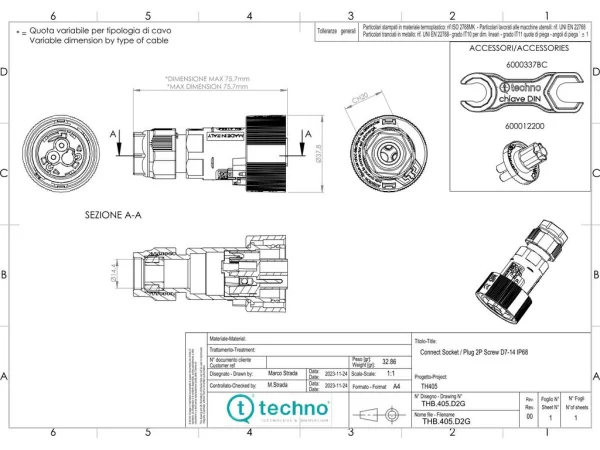

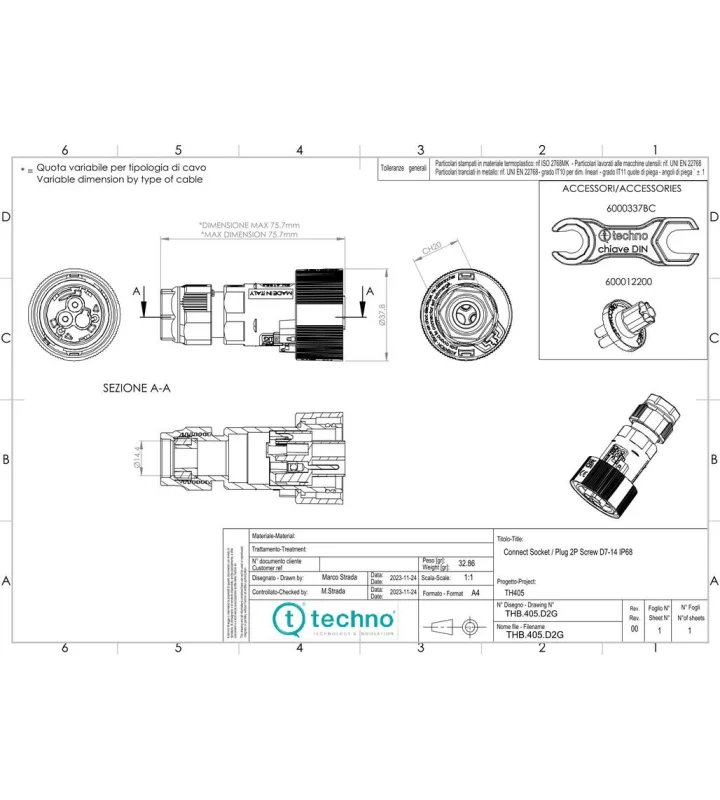

THB.405.D2G
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH405 |
| Number of contacts | 2 |
| Gender | Male |
| Contact terminals | Screw |
| Cable section | 0,5 - 2,5 mm² |
| Min-max cable diameter | 7,0 - 13,5 mm |
| Protection degree | IP66/IP68/IP69 |
| Protection degree details | IP68 (10m/1h) |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Standards | EN61984:2001 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 25 A |
|---|---|
| Rated voltage | 400 V |
| Impulse withstand voltage | 4 kV |
Material
| Body | PA66 UL94 V2 |
|---|---|
| Impulse withstand category | II |
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 UL94 V2 |
| Grommets | TPE |
| Seals | TPE |
| Contact screw terminals | Brass |
| Standard/Piercing screws | Steel |
