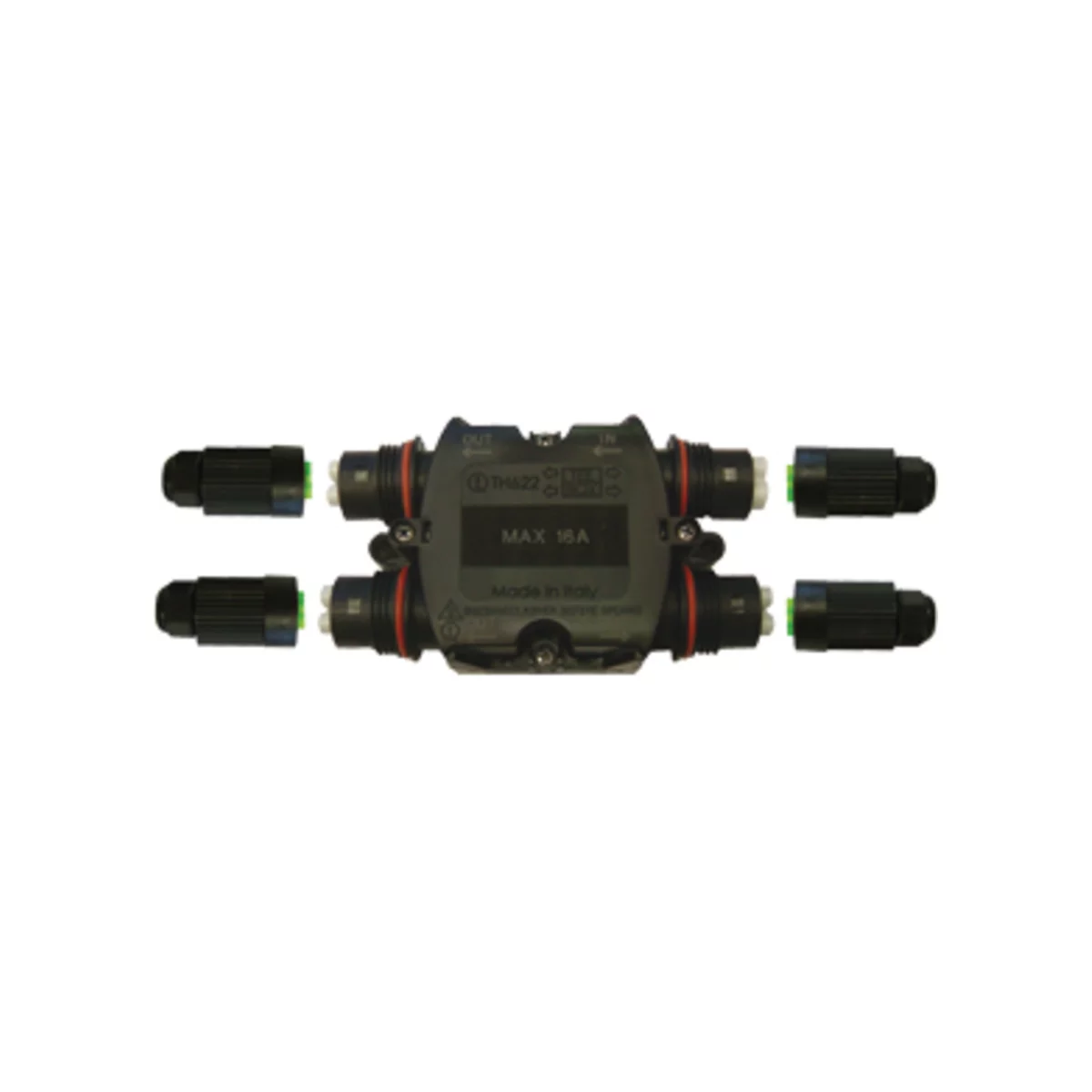

16 A current distributor
IP66/ IP68
4 ways
THH.623.L3A
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEBOX CURRENT DISTRIBUTORS |
|---|---|
| Subseries | TH623 |
| Number of contacts | 3 |
| Plug-socket | 3 output: PLUG THB.384 1 input: SOCKET THB.384 |
| Contact terminals | Contact screw terminals for cable section < 1,0 mm² |
| Min-max cable diameter | 7,0 - 12,0 mm |
| Cable entries/exits | 4 ways |
| Protection degree | IP66/IP68 |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Max. temperature | T85 |
| Standards | EN61984:2001 EN60529:1991+A1:2000 TEST REPORT EN60998-1:2004 HEATING RESISTANCE |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 17.5 A |
|---|---|
| Rated voltage | 400 V |
| Impulse withstand voltage | 4 kV |
Material
| Impulse withstand category | II |
|---|---|
| Distributor and connector housing | PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 |
| Grommets | TPE/SEBS |
| Seals | TPE/SEBS |
| Fixing screws of lid | M3 x 12,0 mm inox stainless steel self-locking screw |
Varianten
| Art. number | Number of contacts |
|---|---|
| THH.623.L2A | 2 |
