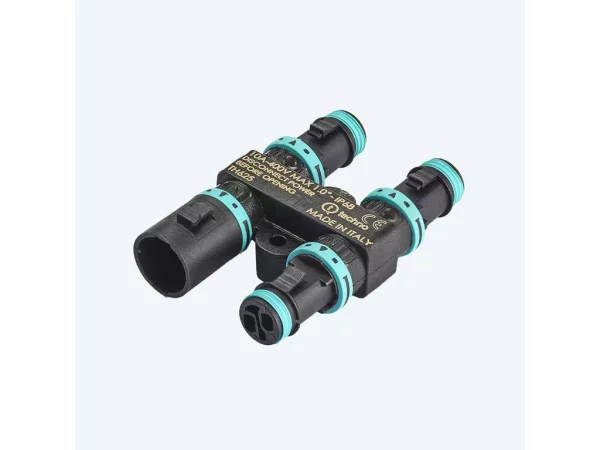

Current distributor Plug & Socket screw
IP66/IP68
Push pull locking
THH.625.A3A
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEBOX CURRENT DISTRIBUTORS |
|---|---|
| Subseries | TH625 |
| Number of contacts | 3 |
| Contact terminals | Screw |
| Cable entries/exits | 4 ways |
| Protection degree | IP66/IP68 |
| Lower temperature | -40 °C |
| Upper temperature | +100 °C |
| Pollution degree | 2 |
| Note | Plug and socket connectors are not included, To be ordered seperately |
| Standards | EN 61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 10 A |
|---|---|
| Rated voltage | 500 V |
Material
| Impulse withstand category | II |
|---|---|
| Distributor and connector housing | PA66 GF UL94 V0 |
| Seals | TPE |
