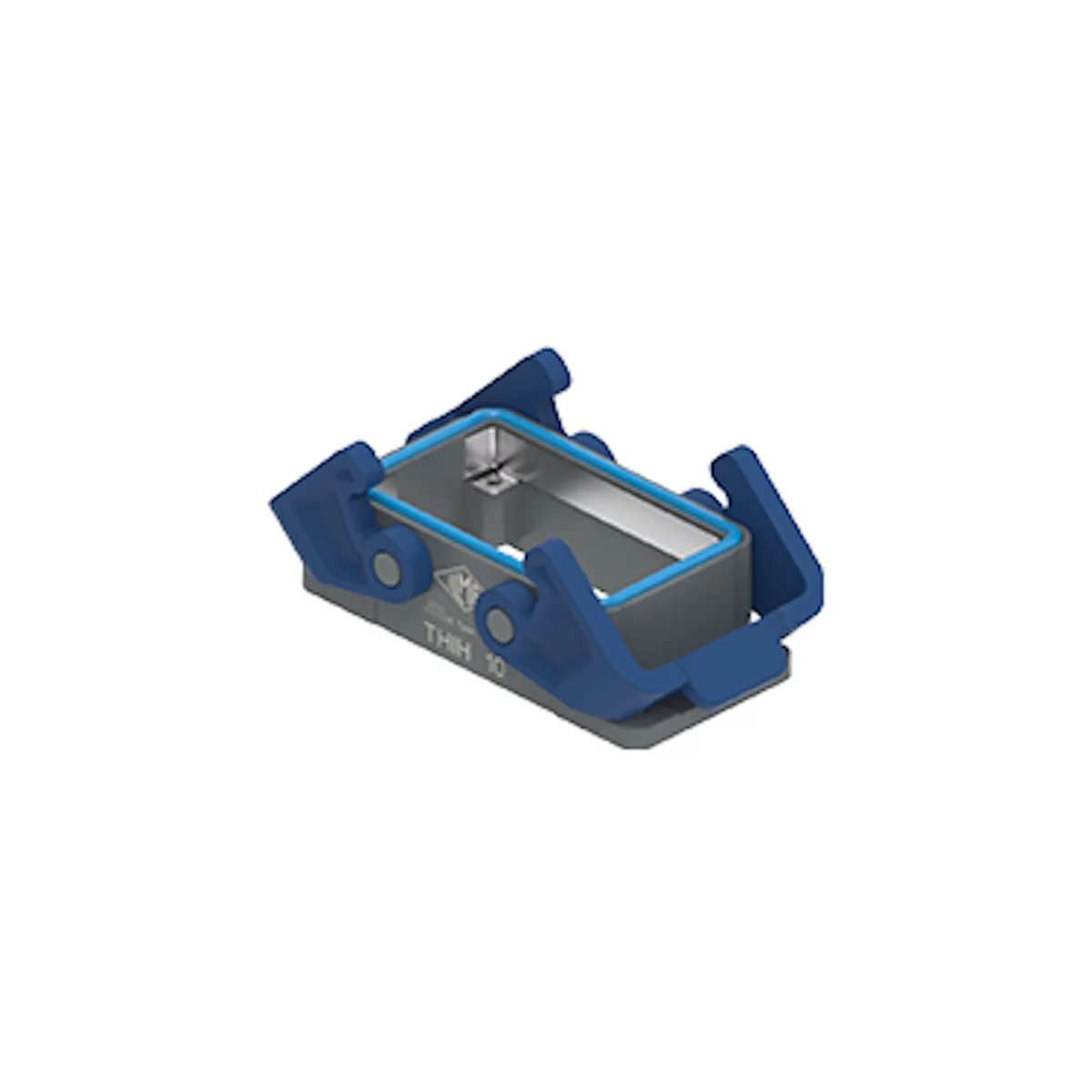

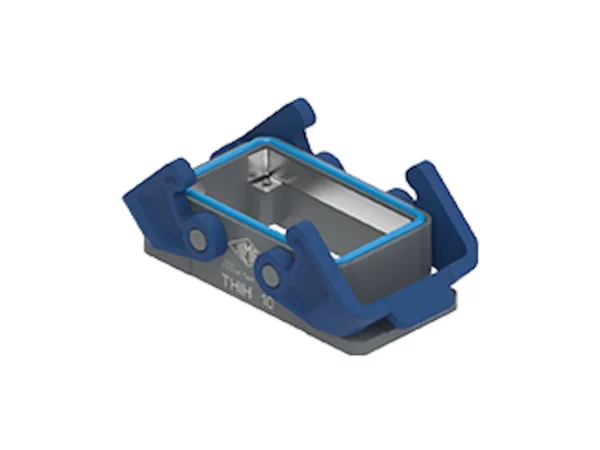

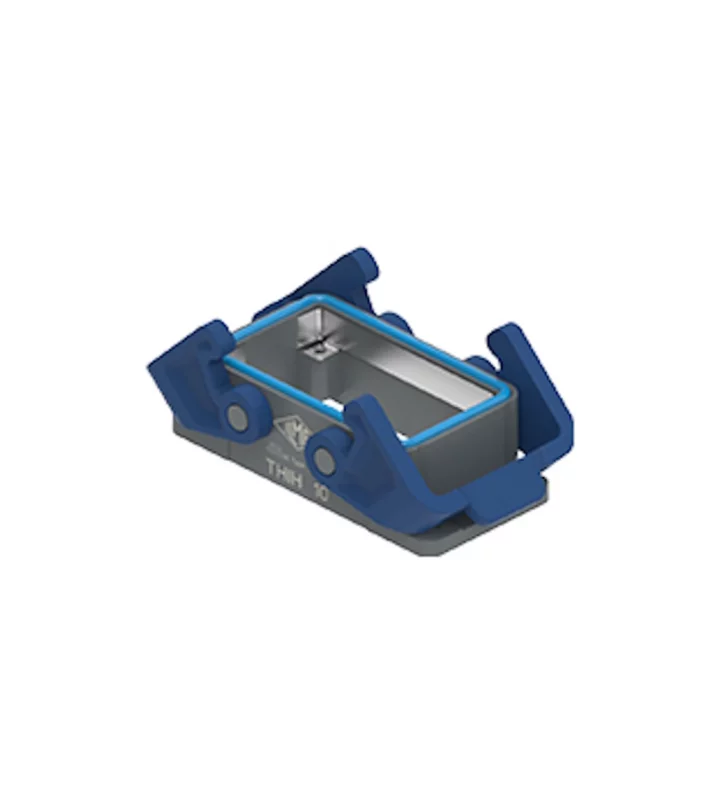

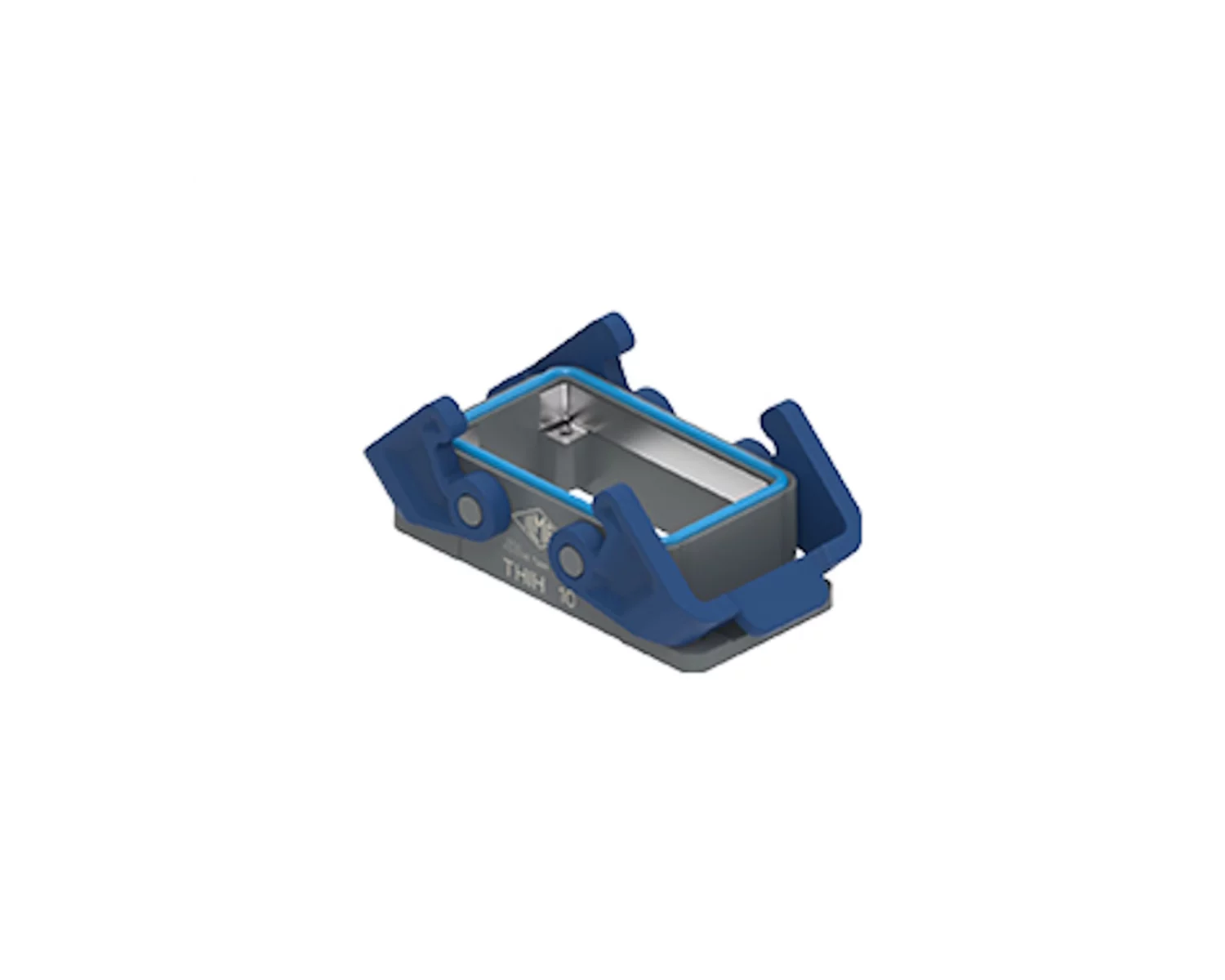

bulkhead mounting housing, size 57.27, T-TYPE /H plastic, 2 levers, PE-jumper
THIH 10 B
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 57.27 |
| Enclosure series | T-TYPE /H |
| Closing type | With 2 levers |
| Locking mechanism | Double locking levers |
| Protection degree | IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 70 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 70 °C |
| Cable entry type | without cable entry |
| Position cable feed | Without cable entry |

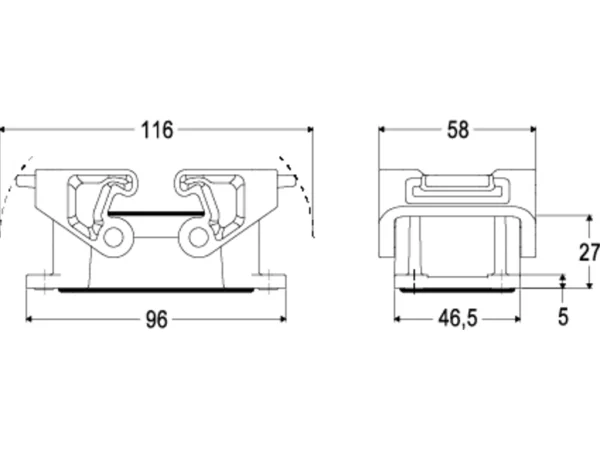

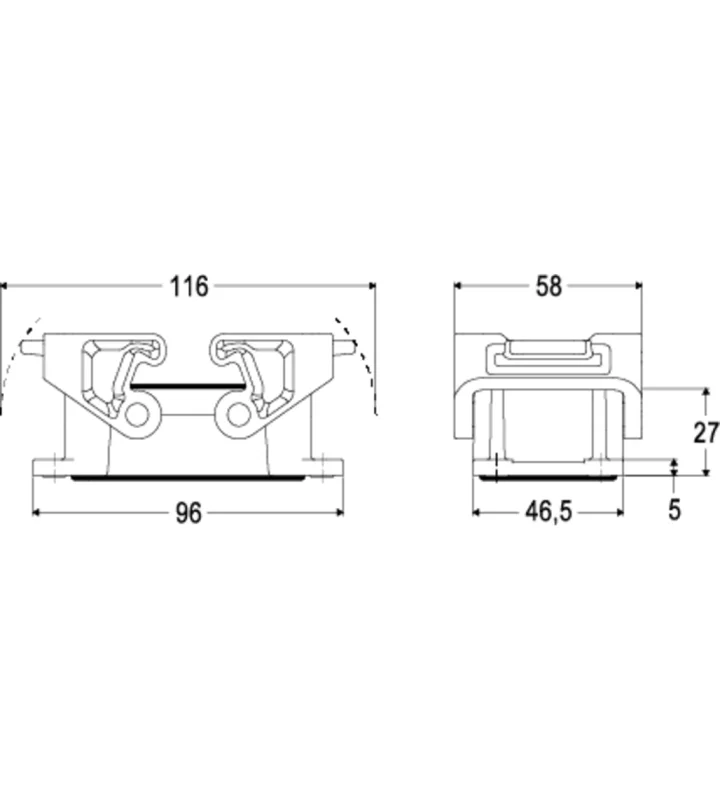

| Height | 27 mm |
| Width | 46.5 mm |
| Length | 96 mm |
Material
| Material housing | Thermoplastic |
|---|---|
| Coating housing | Uncoated |
| Inflammability class of insulation material acc. with UL94 | V0 |
