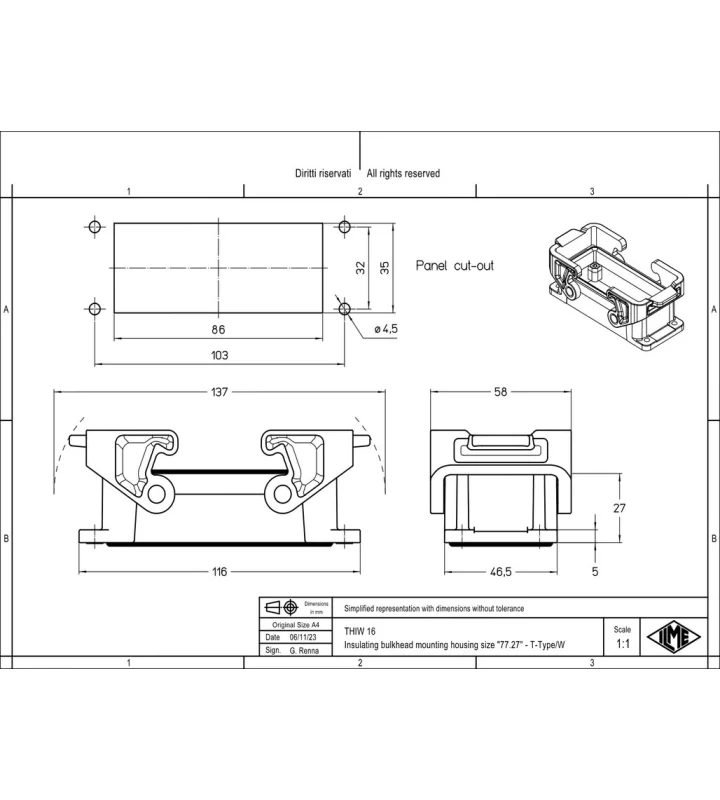

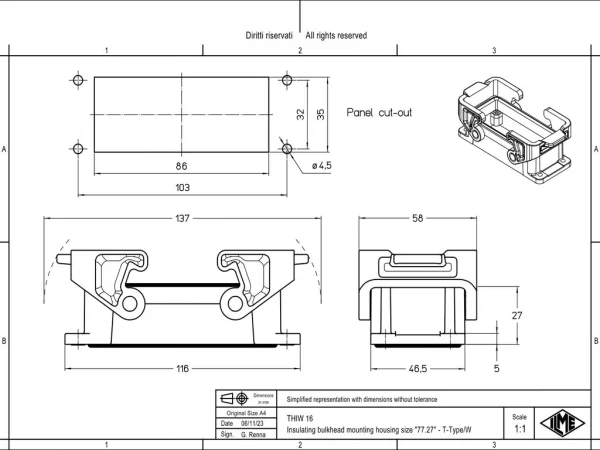

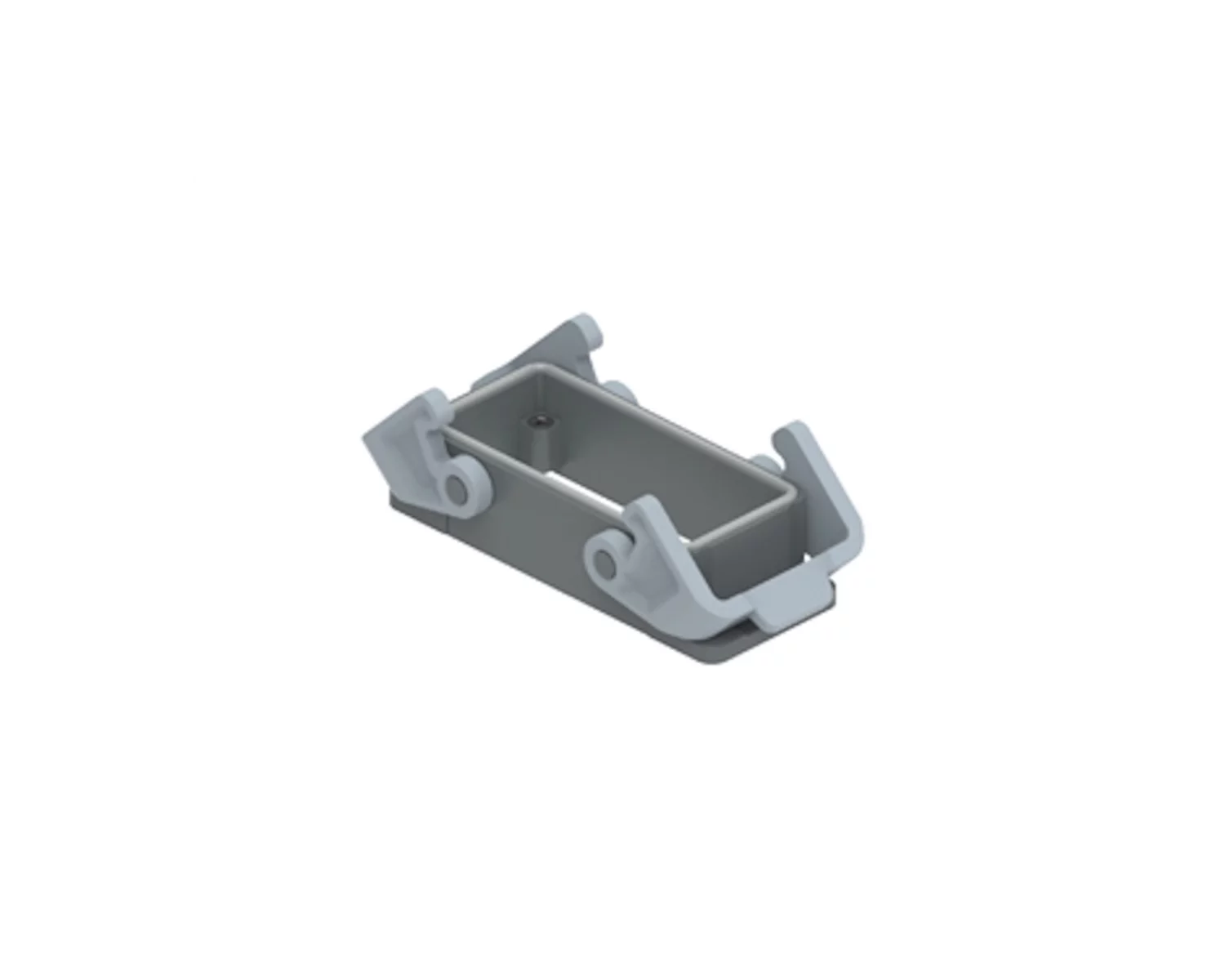

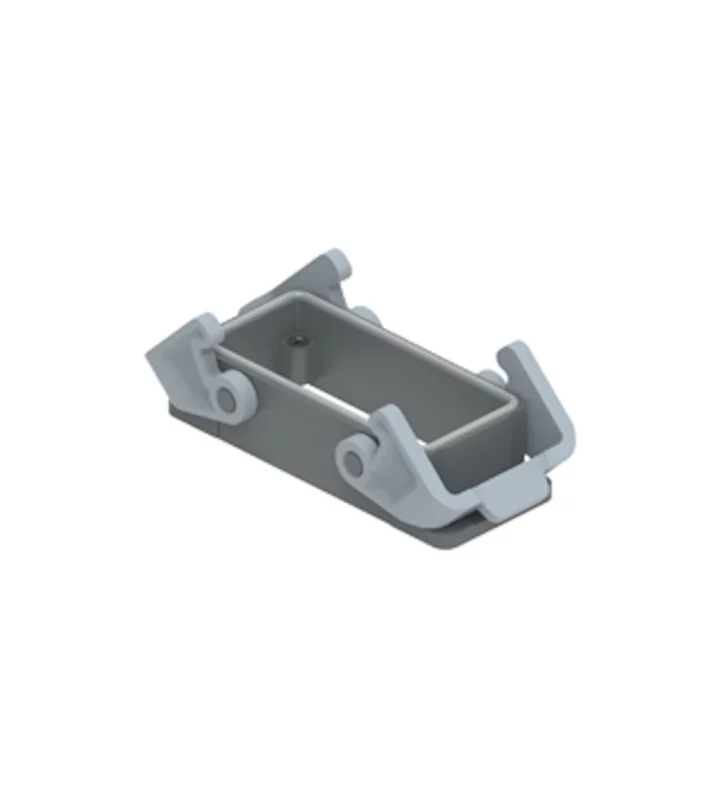

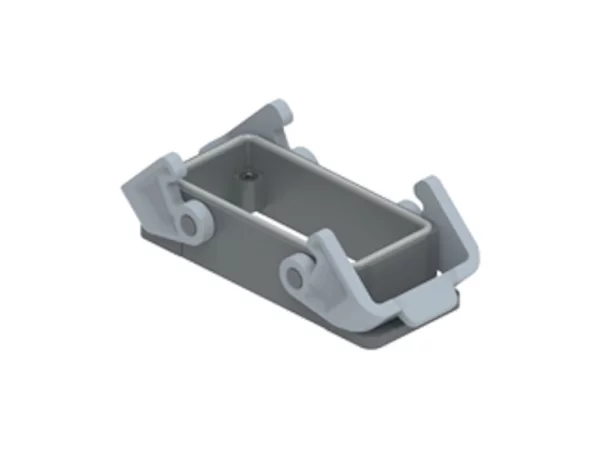

bulkhead mounting housing, size 77.27, T-TYPE /W plastic, 2 levers

THIW 16

Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.

Enclosure type	Bulkhead mounting housing
Size	77.27
Enclosure series	T-TYPE /W
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	90 °C
Operation lower temperature	-40 °C
Operation upper temperature	90 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	27 mm
Width	46.5 mm
Length	133.5 mm

Material housing	Thermoplastic
Coating housing	Uncoated
Inflammability class of insulation material acc. with UL94	V0
Extra information	Corrosion resistant,UV resistant,With interlocking device
