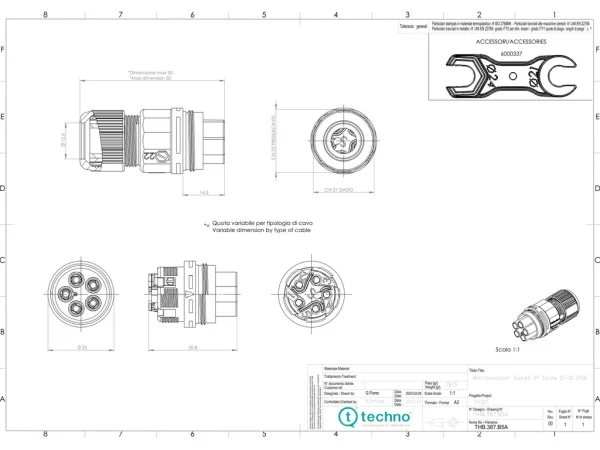

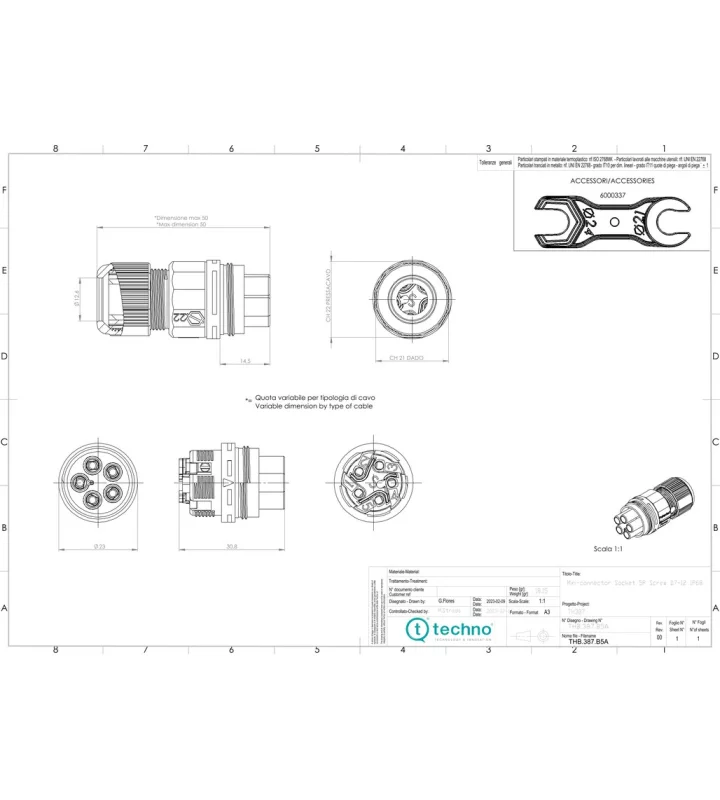

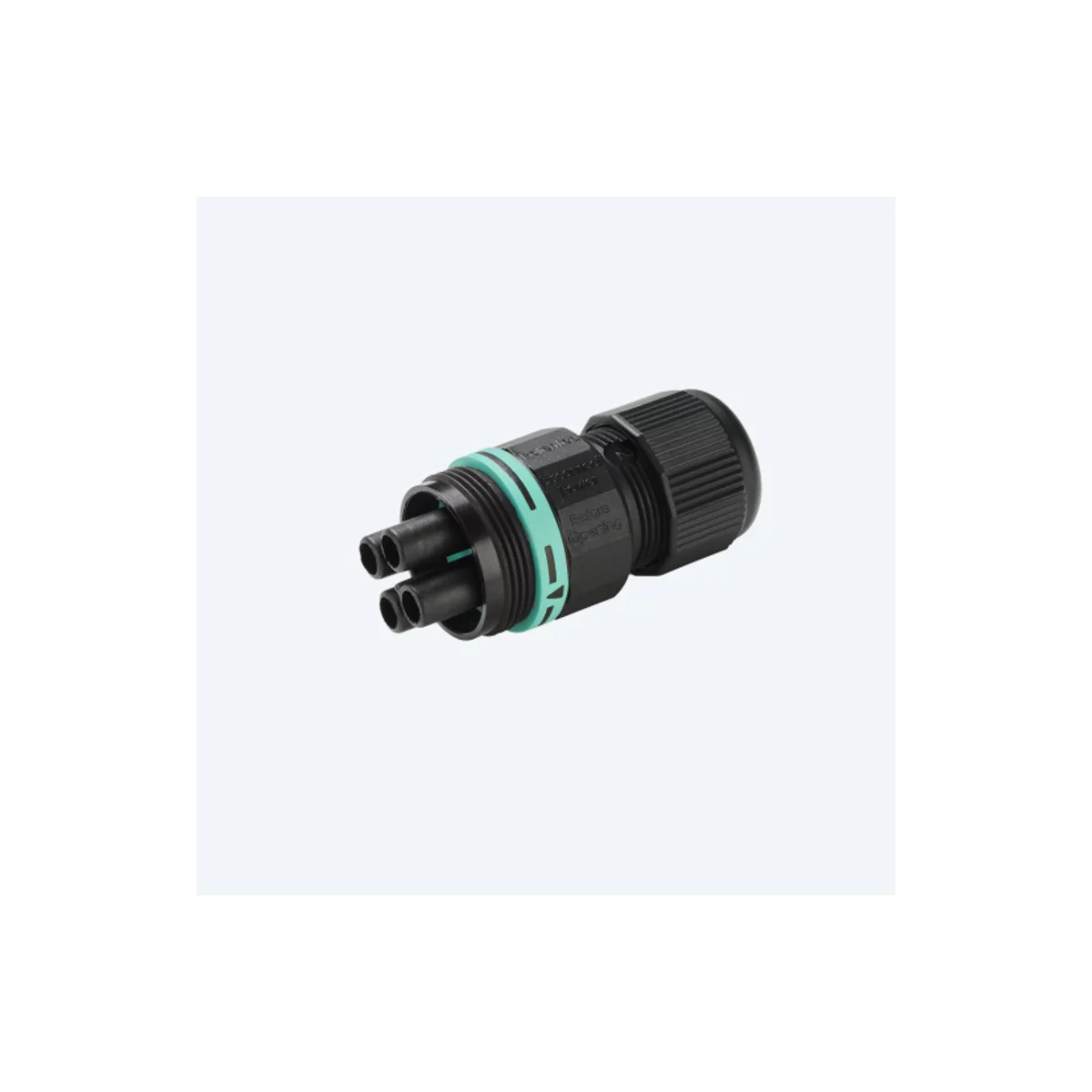

Mini socket connector
IP66/IP68
THP.387.B3A
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH387 |
| Number of contacts | 3 |
| Gender | Female |
| Contact terminals | Piercing clip terminals max 1,5 mm² |
| Cable section | 0,5 - 1,5 mm² |
| Min-max cable diameter | 7,0 - 12,0 mm |
| Protection degree | IP66/IP68 |
| Protection degree details | 3 bar (30m / 3h) |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Note | Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. |
| Standards | EN61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 17.5 A |
|---|---|
| Rated voltage | 500 V |
| Impulse withstand voltage | 4 kV |
Material
| Impulse withstand category | II |
|---|---|
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 UL94 V2 |
| Grommets | TPE |
| Co-moulded seals | TPE |
| Contact screw terminals | Brass |
| Standard/Piercing screws | Steel |
Varianten
| Art. number | Number of contacts | Contact terminal | Contact terminals | Cable section | Min-max cable diameter | Note |
|---|---|---|---|---|---|---|
| THB.387.B4A | 4 | Screw | Contact screw terminals. For cable section < 1.0 mm² | 0,5 - 2,5 mm² | 7,0 - 12,0 mm | Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. |
| THB.387.B2A | 2 | Screw | Contact screw terminals. For cable section < 1.0 mm² | 0,5 - 2,5 mm² | 7,0 - 12,0 mm | Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. |
| THB.387.B3A | 3 | Screw | Contact screw terminals. For cable section < 1.0 mm² | 0,5 - 2,5 mm² | 7,0 - 12,0 mm | Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. |
| THB.387.B5A | 5 | Screw | Screw | 0,25 - 1,5 mm² | 7,0 - 12,0 mm | Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. |
| THB.387.B2A.L | 2 | Screw | Contact screw terminals. For cable section < 1.0 mm² | 0,5 - 2,5 mm² | 7,0 - 13,5 mm | |
| THB.387.B3A.L | 3 | Screw | Contact screw terminals. For cable section < 1.0 mm² | 0,5 - 2,5 mm² | 7,0 - 13,5 mm | |
| THB.387.B4A.L | 4 | Screw | Screw | 0,5 - 1,5 mm² | 7,0 - 13,5 mm | |
| THB.387.B5A.L | 5 | Screw | Screw | 0,25 - 1,5 mm² | 7,0 - 13,5 mm | |
| THP.387.B4A | 4 | Piercing | Piercing clip terminals max 1,5 mm² | 0,5 - 1,5 mm² | 7,0 - 12,0 mm | Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. |
| THP.387.B4A.L | 4 | Piercing | Piercing clip terminals max 1,5 mm² | 0,5 - 1,5 mm² | 7,0 - 13,5 mm |
