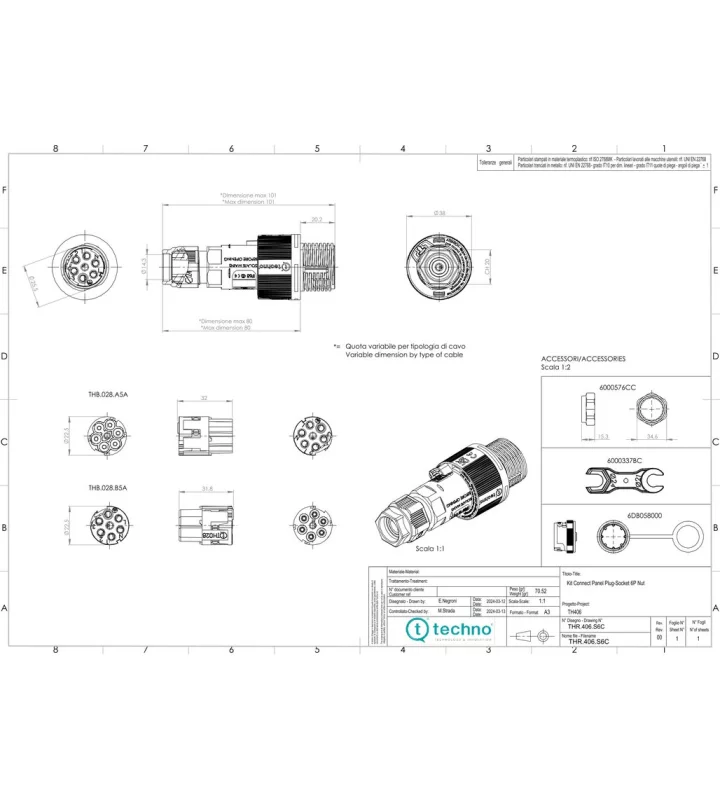

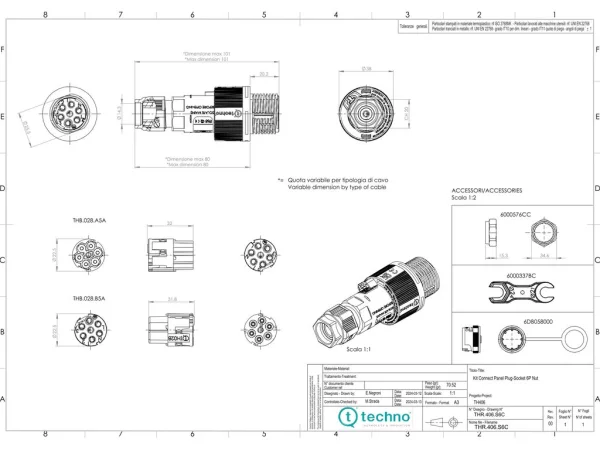

KIT plug & socket connector panel-mounted M28, screw
IP68
THR.406.S6C
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH406 |
| Number of contacts | 6 |
| Gender | Male & Female |
| Contact terminals | Screw |
| Cable section | 0,5 - 1,5 mm² |
| Protection degree | IP68 |
| Protection degree details | IP68 (10m/1h) |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Standards | EN61984:2001 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 17.5 A |
|---|---|
| Rated voltage | 400 V |
| Impulse withstand voltage | 6 kV |
Material
| Body | PA66 UL94 V2 |
|---|---|
| Impulse withstand category | II |
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 UL94 V2 |
| Grommets | TPE |
| Contact screw terminals | Brass |
| Standard/Piercing screws | Steel |
