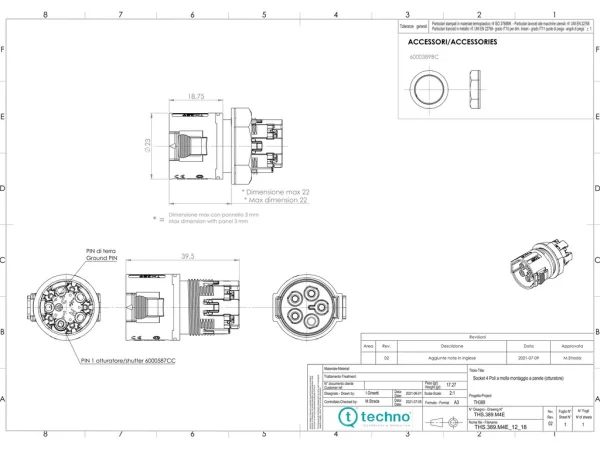

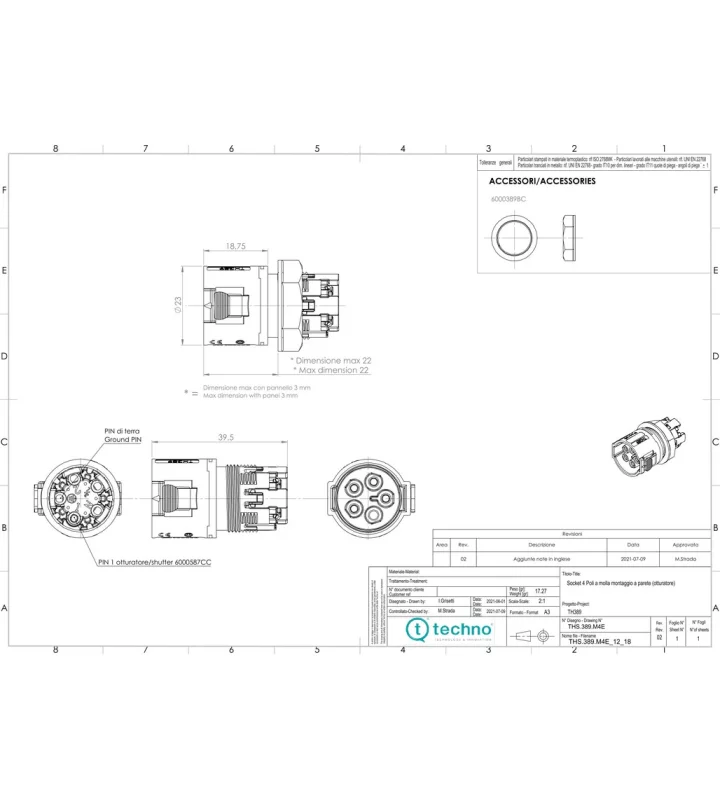

Mini socket connector panel-mounted, screwless
M20 IP66/IP68/IP69
THS.389.M5E
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH389 |
| Number of contacts | 5 |
| Gender | Female |
| Contact terminals | Screwless |
| Cable section | 0,25 - 1,5 mm² |
| Protection degree | IP66/IP68/IP69 |
| Protection degree details | IP68 (5m/1h) |
| Lower temperature | -40 °C |
| Upper temperature | +100 °C |
| Pollution degree | 2 |
| Standards | EN61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 17.5 A |
|---|---|
| Rated voltage | 500 V |
| Impulse withstand voltage | 4 kV |
Material
| Impulse withstand category | II |
|---|---|
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 UL94 V2 |
| Grommets | TPE |
| Co-moulded seals | TPE |
Varianten
| Art. number | Number of contacts |
|---|---|
| THS.389.M4E | 4 |
