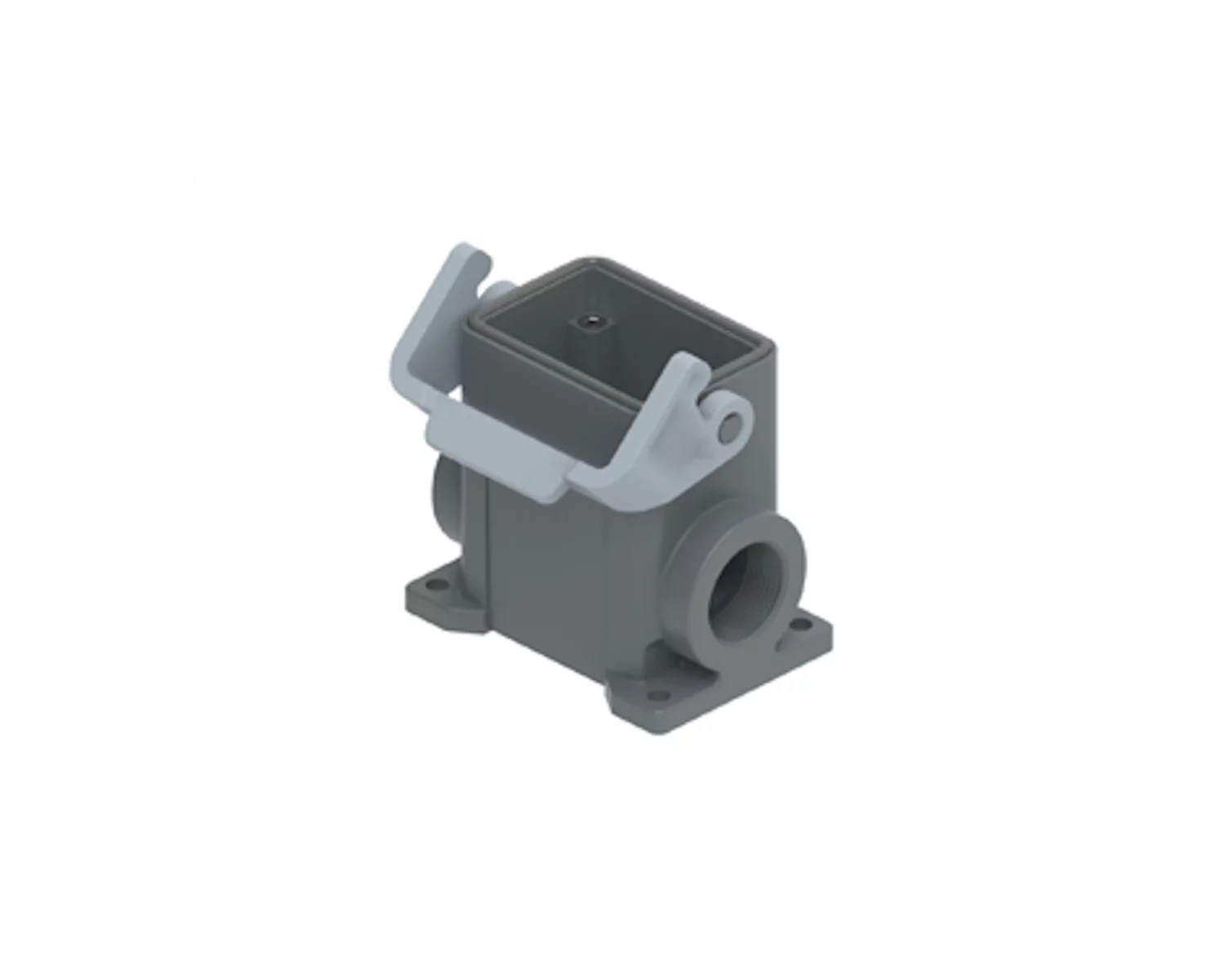

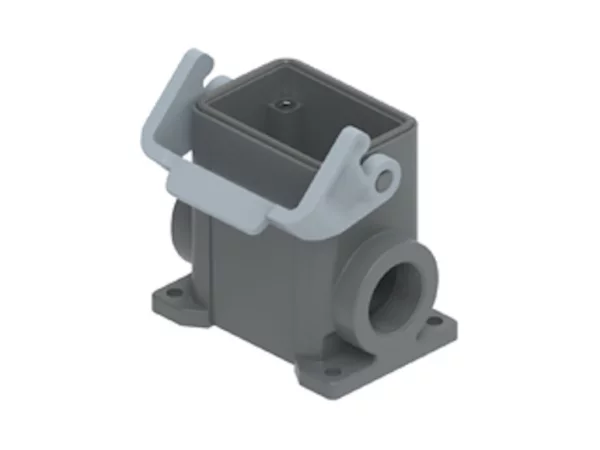

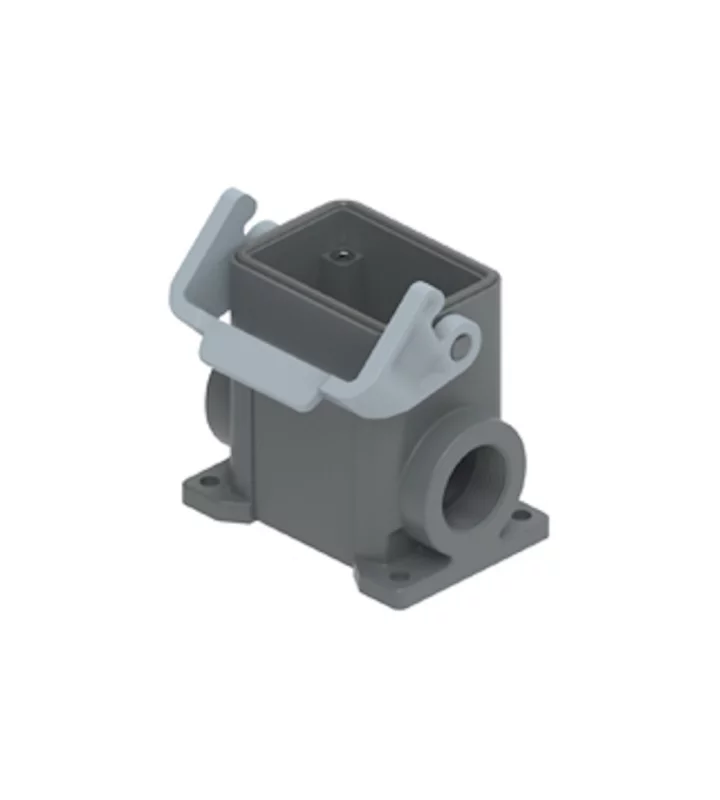

surface mounting housing, high, size 44.27, T-TYPE plastic, 1 lever, 1xM25 side, PE-jumper
TMAP 06L25B
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Surface mounting housing |
|---|---|
| Size | 44.27 |
| Enclosure series | T-TYPE |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 90 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 90 °C |
| Cable entry type | side cable entry |
| Cable entry size | M25 |
| Position cable feed | Side entry |

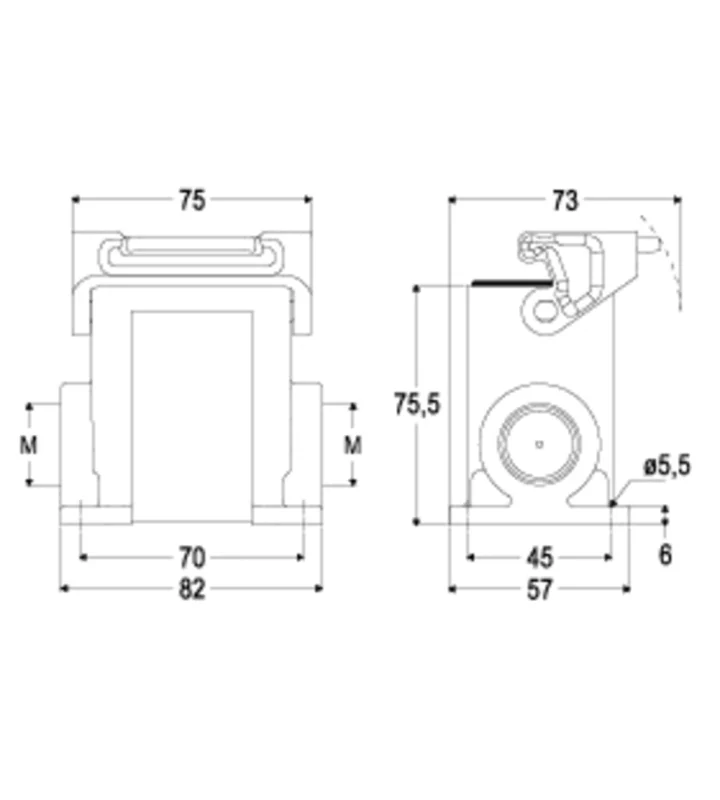

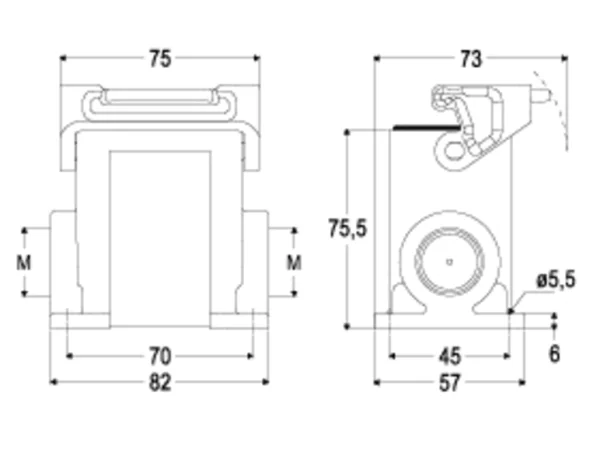

| Height | 75.5 mm |
| Width | 45 mm |
| Length | 70 mm |
Material
| Material housing | Thermoplastic |
|---|---|
| Coating housing | Uncoated |
| Inflammability class of insulation material acc. with UL94 | V0 |
