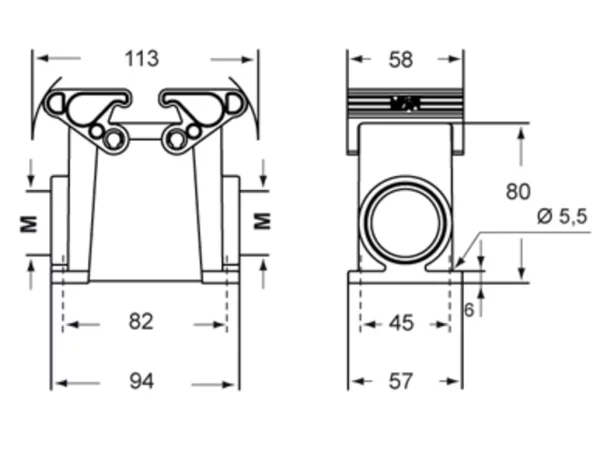

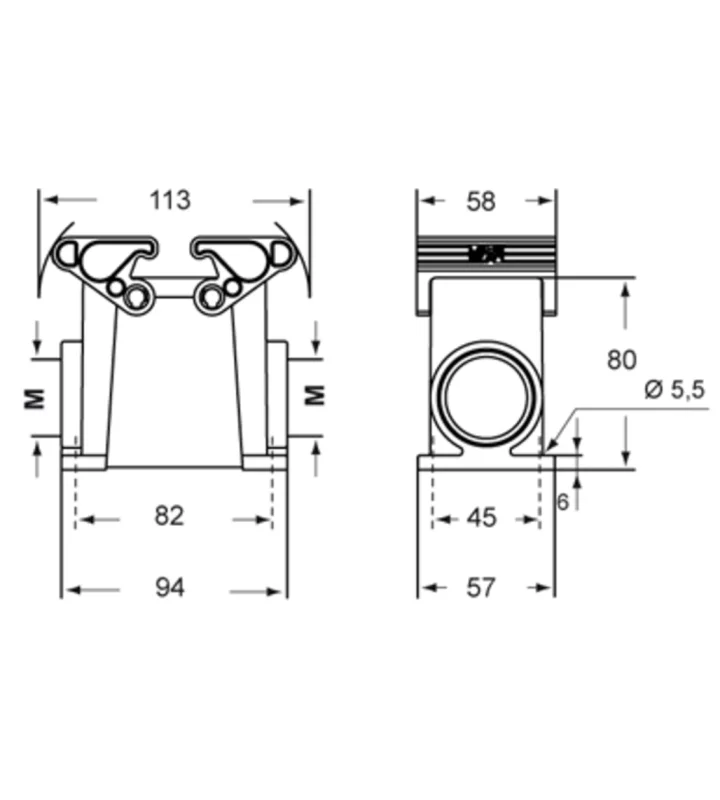

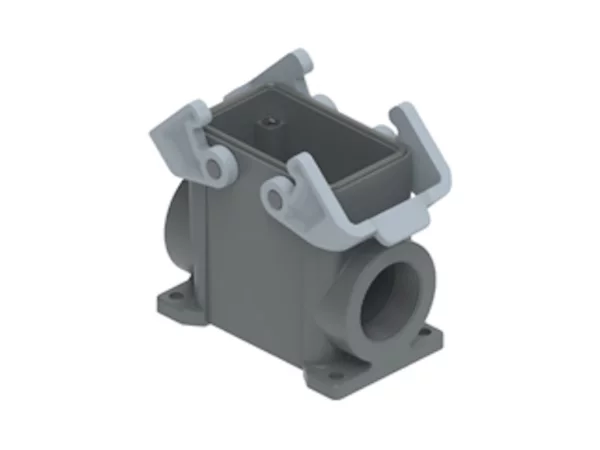

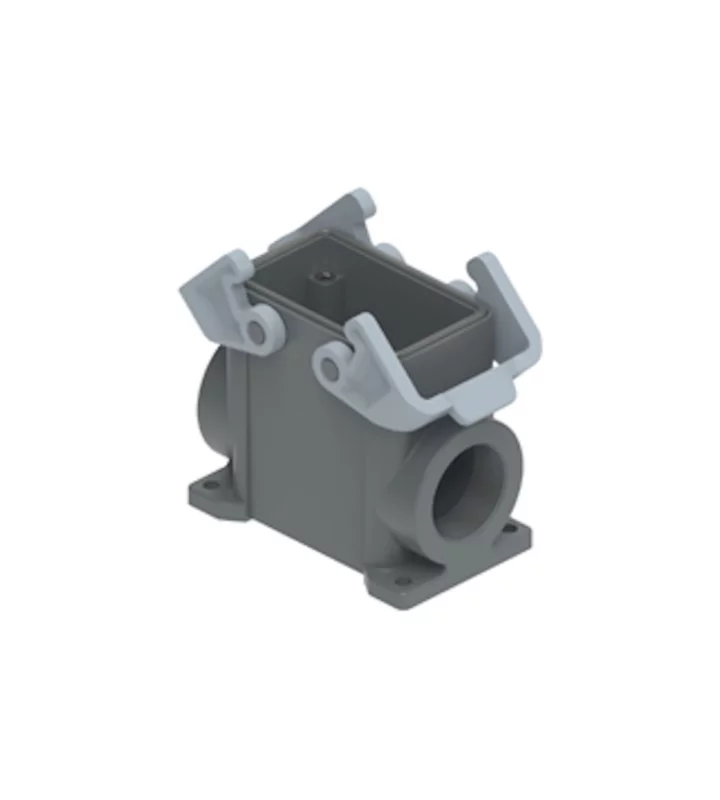

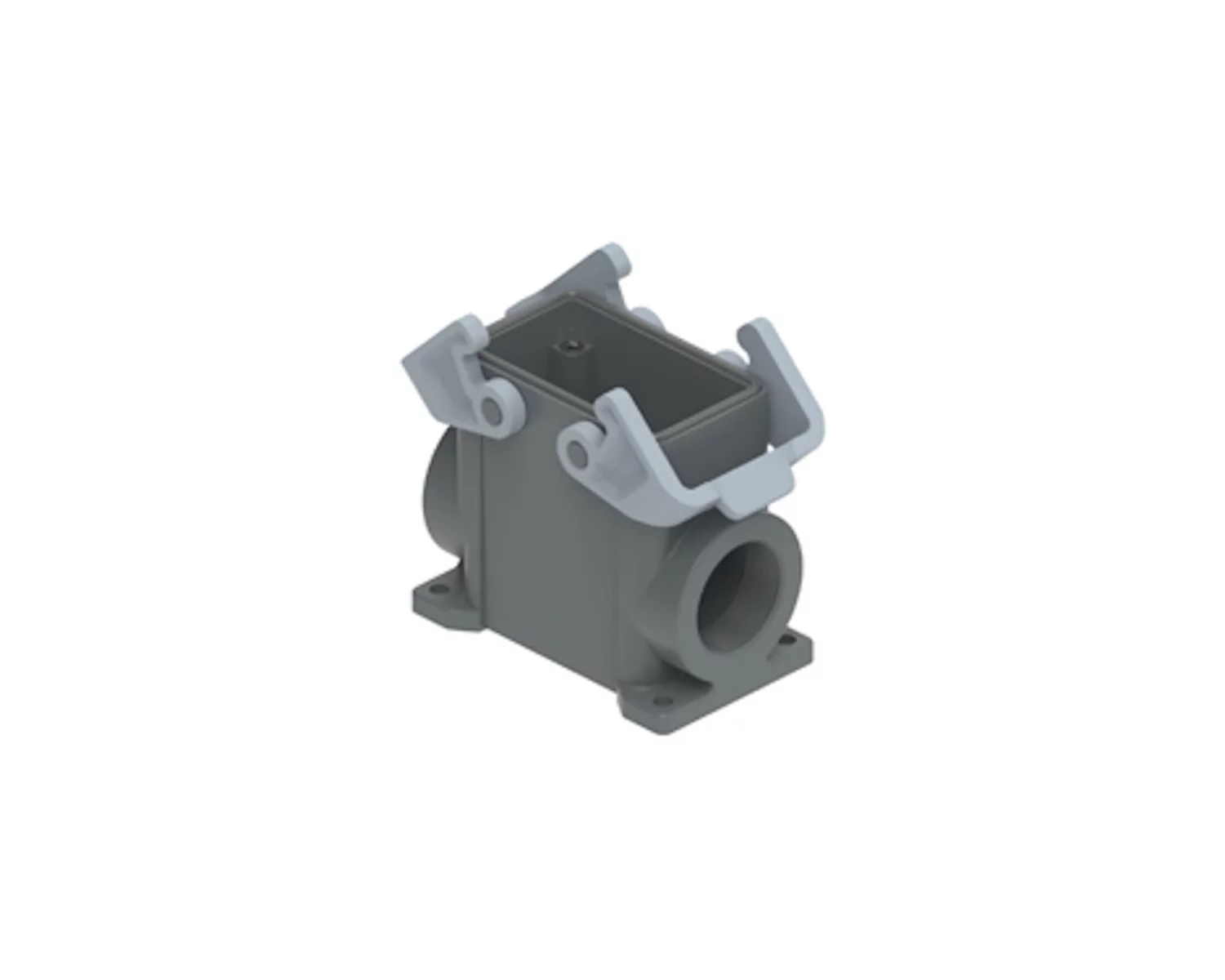

surface mounting housing, high, size 57.27, T-TYPE plastic, 2 levers, 2xM32 side, PE-jumper

TMAP10.232B

Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.

Enclosure type	Surface mounting housing
Size	57.27
Enclosure series	T-TYPE
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	90 °C
Operation lower temperature	-40 °C
Operation upper temperature	90 °C
Cable entry type	side cable entry
Cable entry size	M32 x 2
Position cable feed	Side entry
Height	80 mm
Width	45 mm
Length	82 mm

Material housing	Thermoplastic
Coating housing	Uncoated
Inflammability class of insulation material acc. with UL94	V0
