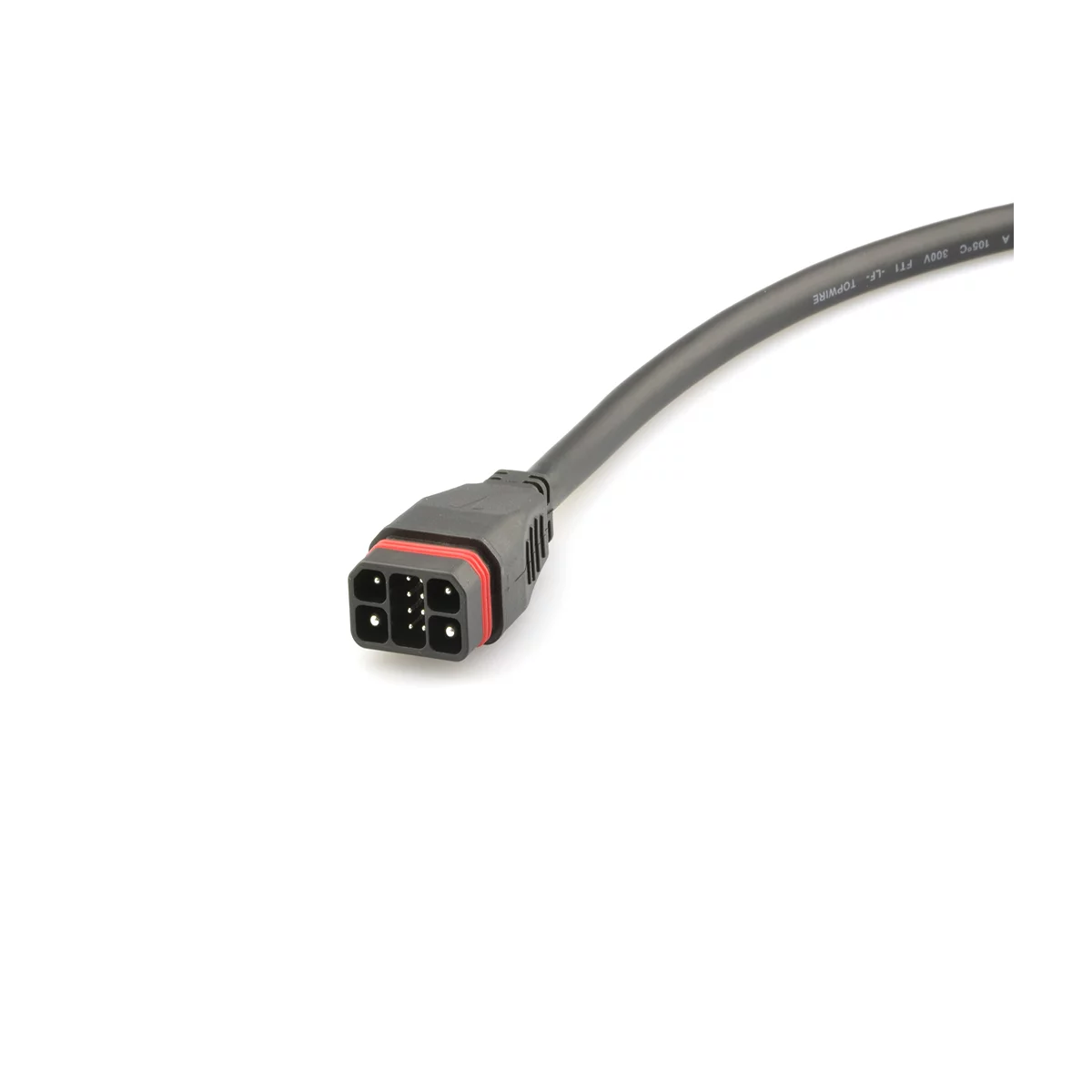

Male cable connector
Charging & discharging in 1
Z1228BG P 00 GK 1000
Specificaties
General Characteristics
| Number of contacts | 12 (2+2+8) |
|---|---|
| Connector shape | Plug |
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Mating cycles (times) | 3000 Times |
| Connector diameter | 26,4 mm |
| Fitting length | 90.8 mm |
| Cable Length | 1000 mm |
| Cable diameter | 8.5 mm |
| Wire section | 2 x 2,5 + 2 x 1,0 + 8 x 0,2 |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 25 / 10 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 mΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | PVC |
| Material of contact | Brass |
| Contact plating | Gold over Nickel |
