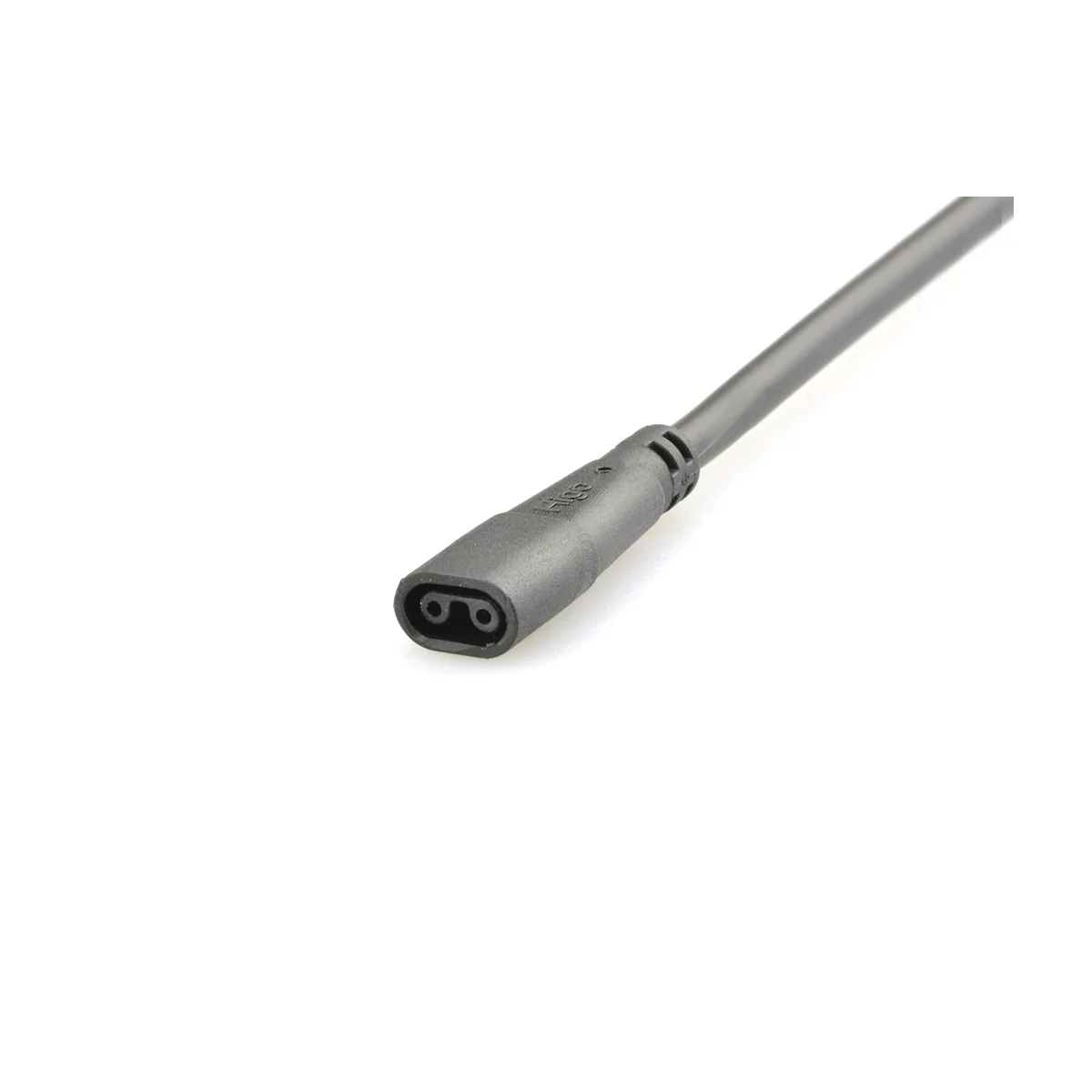

Mini E female cable connector
Z209EM P 00 A0 1000
Specificaties
General Characteristics
| Number of contacts | 2 |
|---|---|
| Connector shape | Plug |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP66 |
| Locking | Push-on (no locking) |
| Mating cycles (times) | 200 Times |
| Connector diameter | 8 mm |
| Cable Length | 1000 mm |
| Wire section | 0,2 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 mΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | PVC |
| Material of contact | Phosphor bronze |
| Contact plating | Gold over Nickel |
