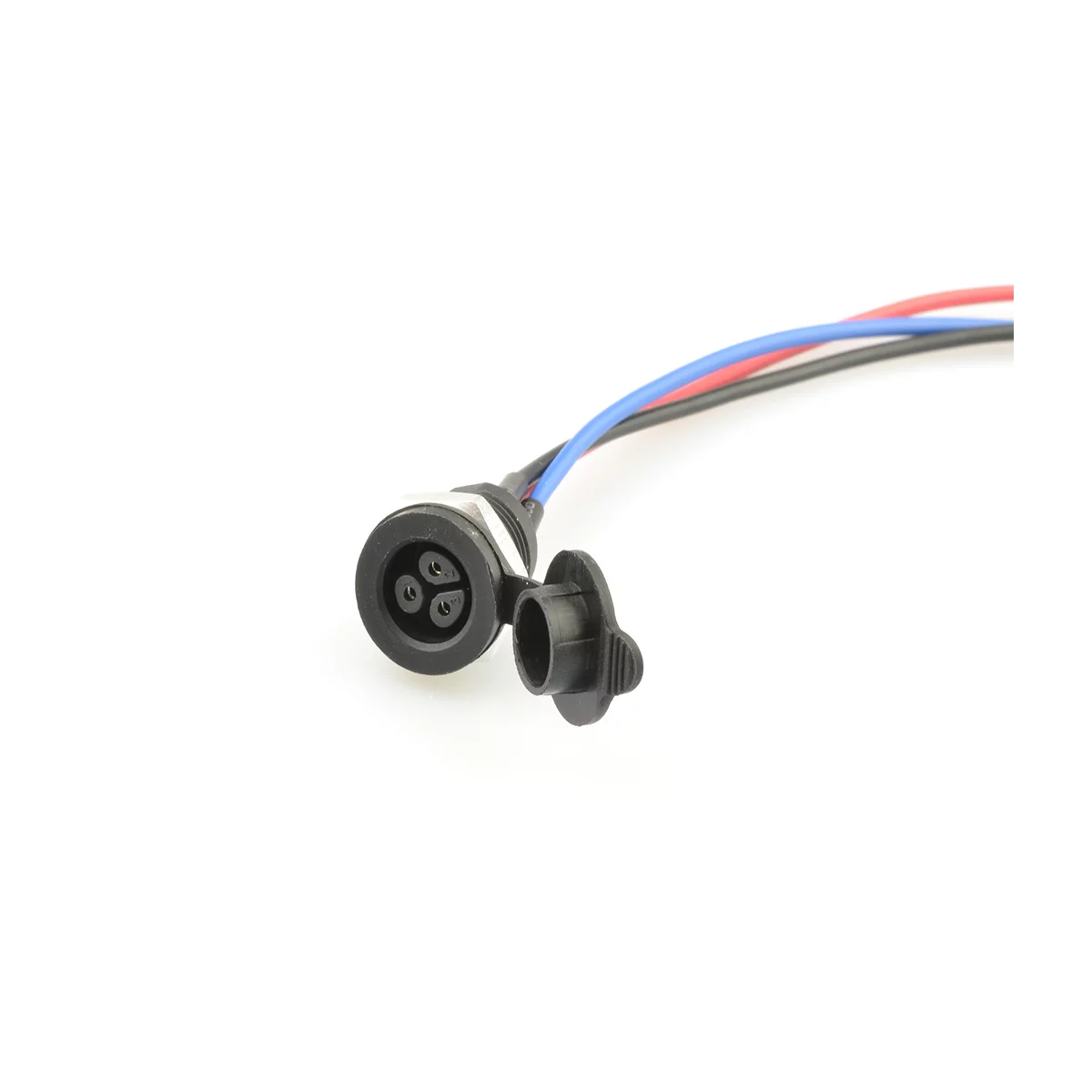

Female panel mount connector, no locking (push-on)
Z311AM C 03 FK 0300
Specificaties
General Characteristics
| Number of contacts | 3 |
|---|---|
| Connector shape | Panel mount |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP66 |
| Mating cycles (times) | 3000 Times |

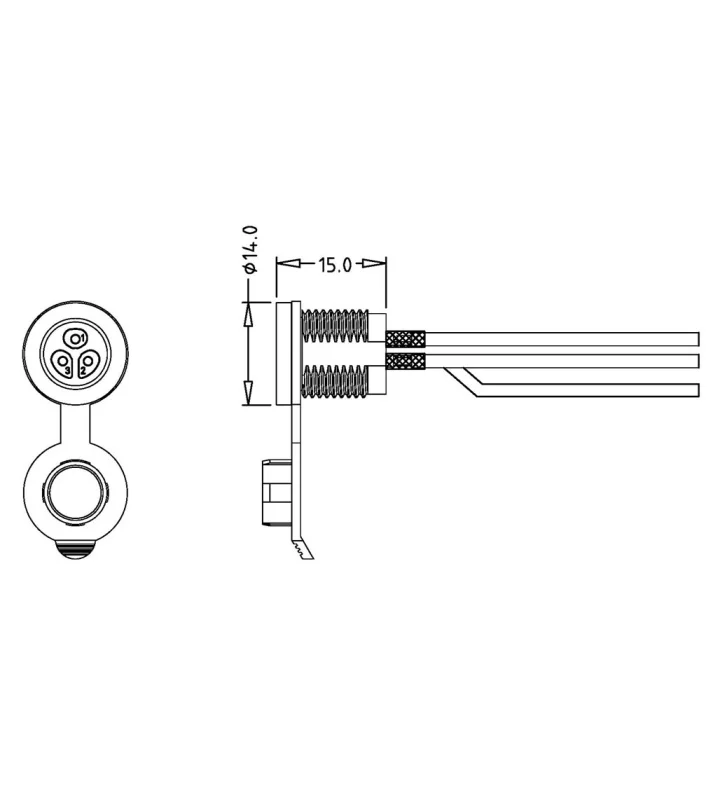

| Connector diameter | 14,0 mm |
| Cable Length | 300 mm |
| Wire section | 3 x 0,5 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 5 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 mΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | PVC |
| Material of contact | Phosphor Bronze |
| Contact plating | Gold over Nickel |
