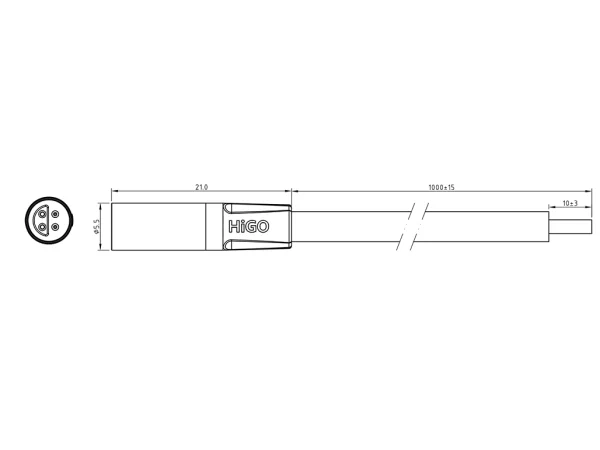

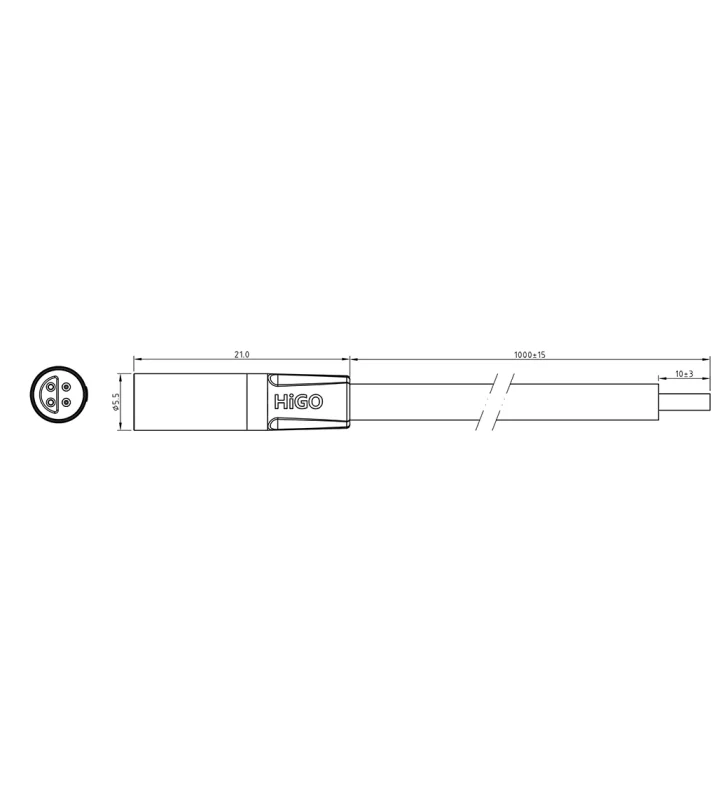

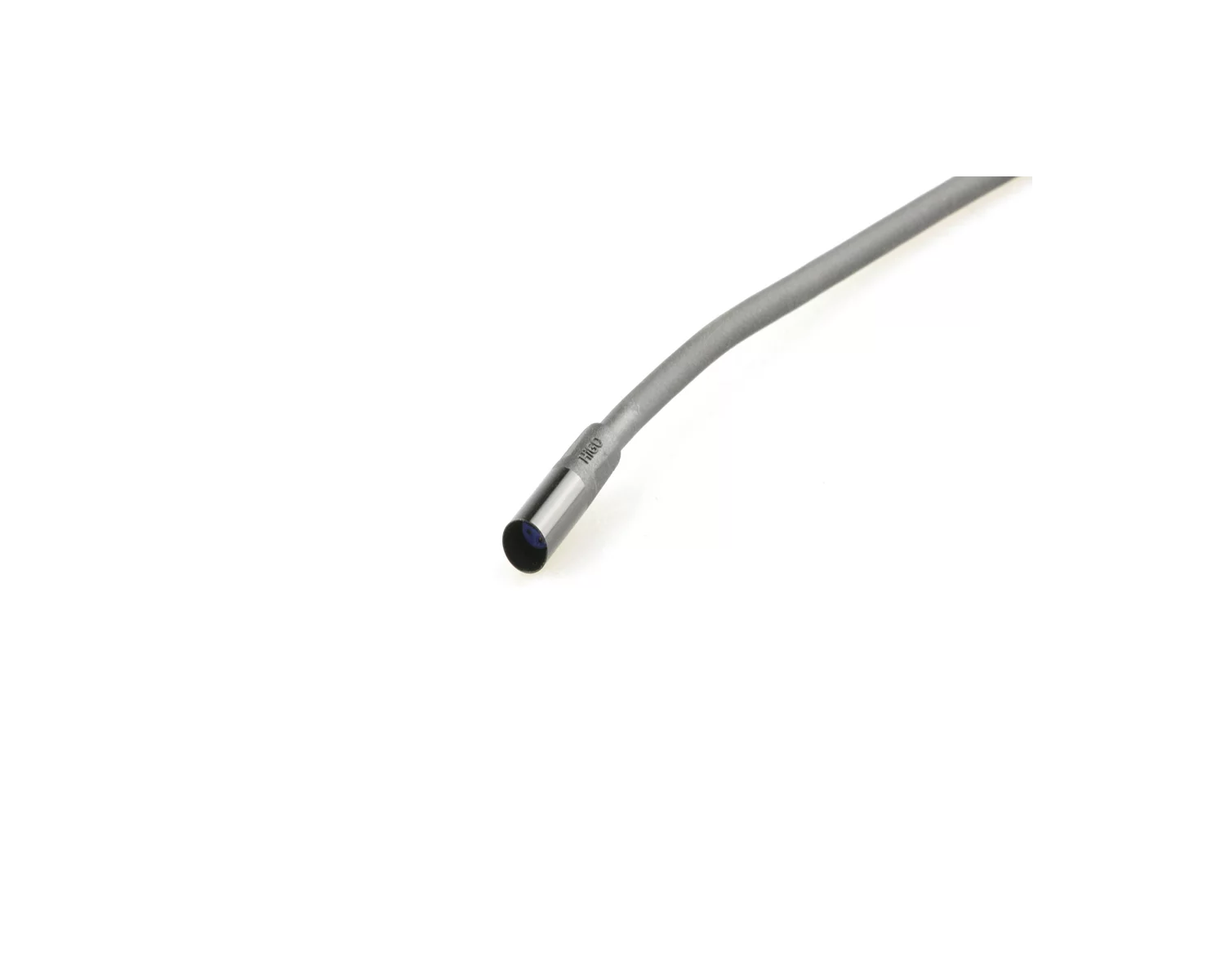

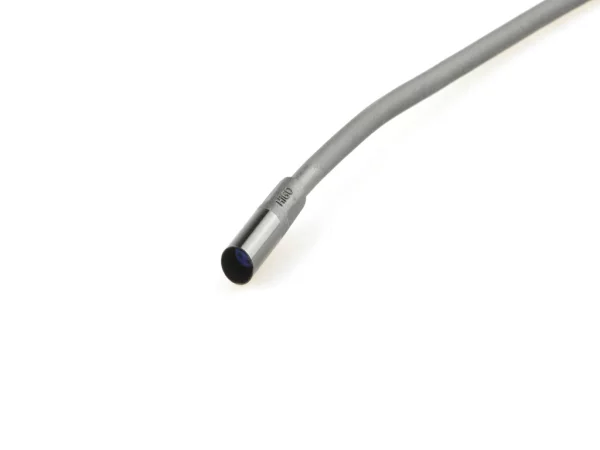

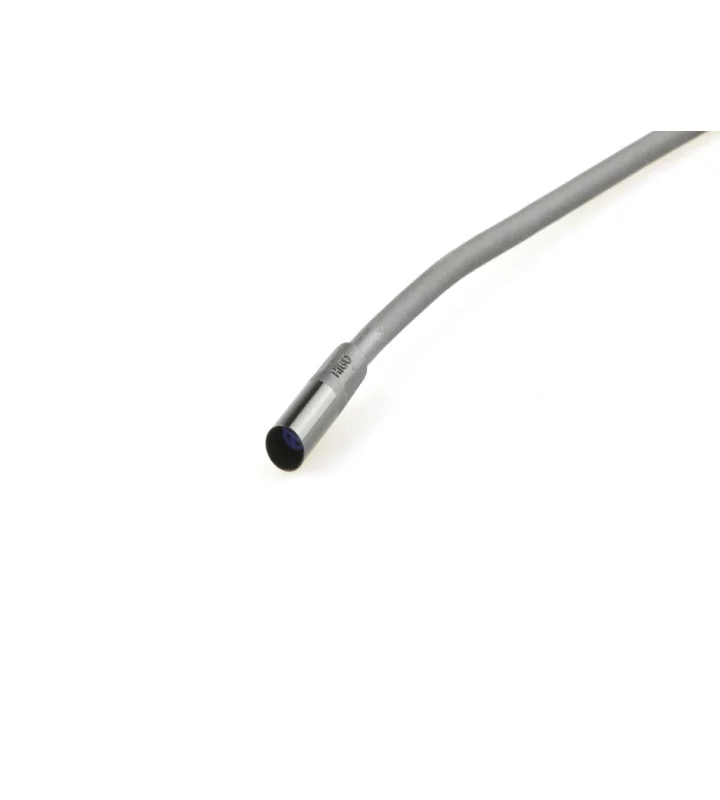

Micro M male cable connector
Z405MG P 00 MD 1000
Specificaties
General Characteristics
| Number of contacts | 4 |
|---|---|
| Connector shape | Plug |
| Gender | Male |
| Color | BLUE |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking | Push-on (no locking) |
| Mating cycles (times) | 50 Times |
| Connector diameter | 5.5 mm |
| Fitting length | 30 mm |
| Cable Length | 1000 mm |
| Cable diameter | 3.3 mm |
| Wire section in AWG | 4 x AWG26 |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 mΩ |
Material
| Material jacket | TPU |
|---|---|
| Insulation wire | FEP |
