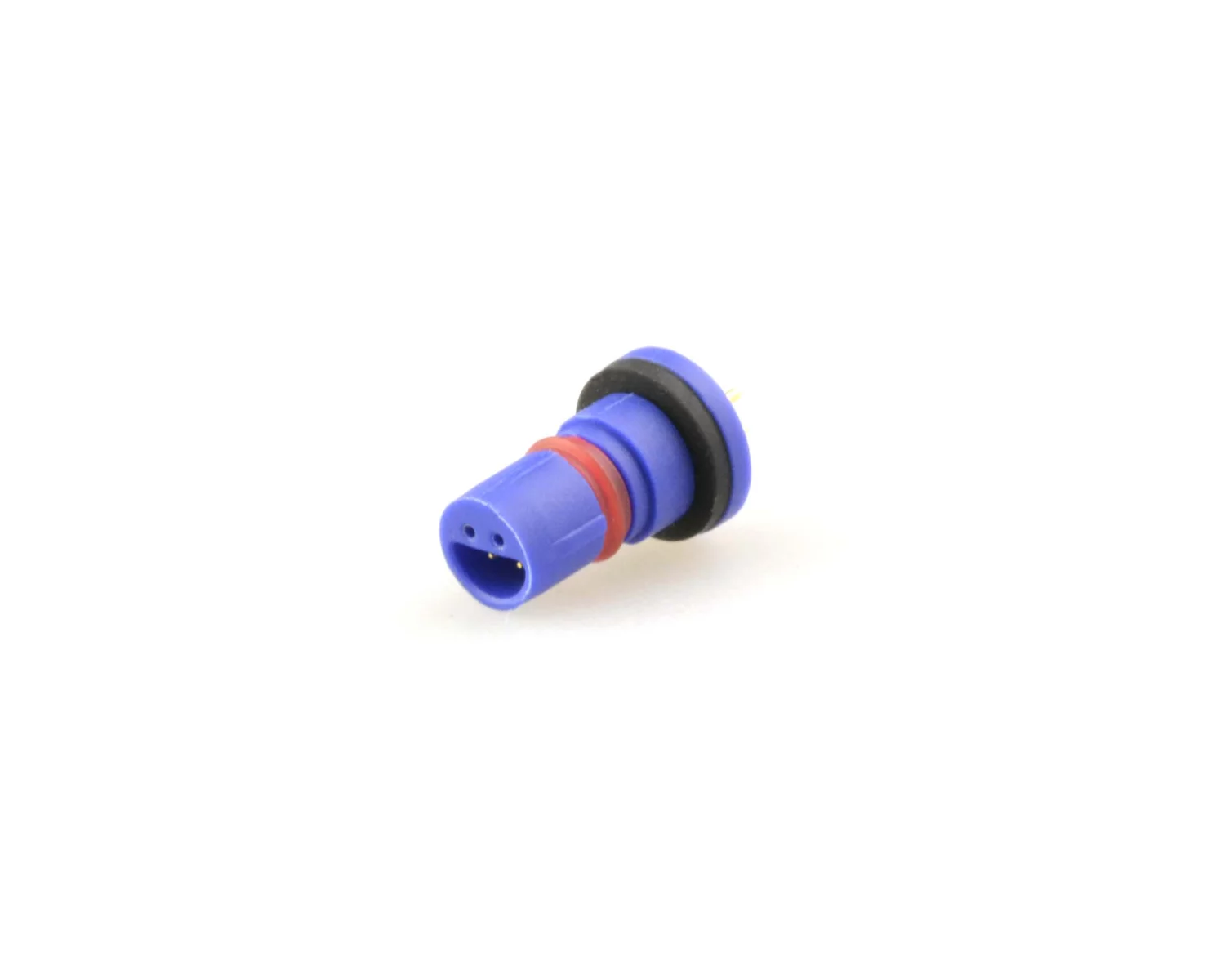

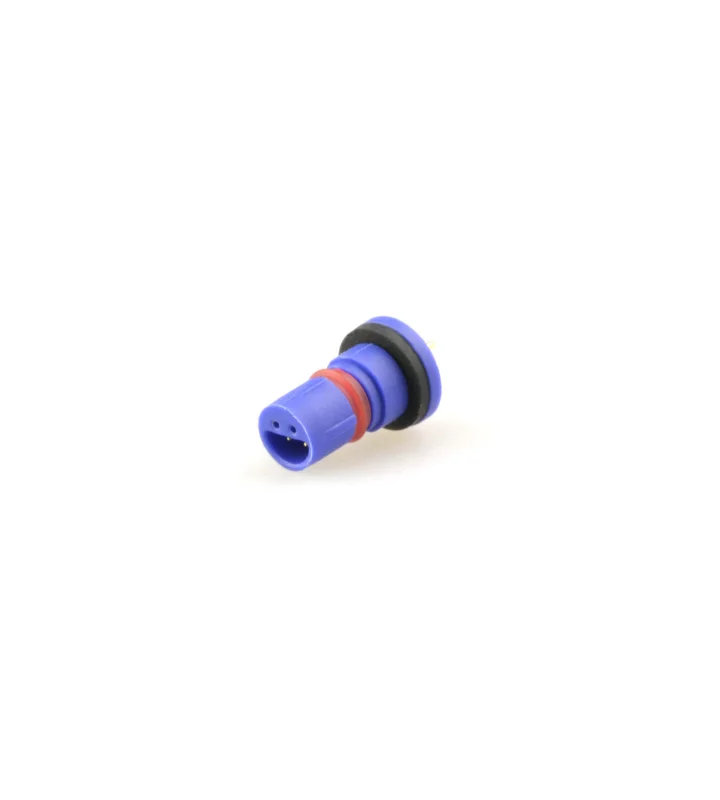

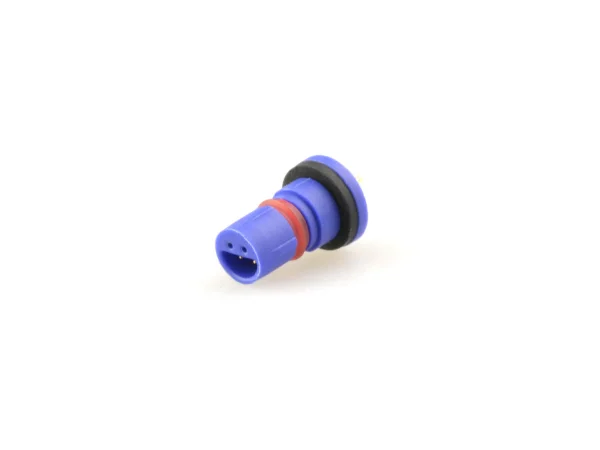

Micro M female panel mount
Z405MM C 04 00 0000
Specificaties
General Characteristics
| Number of contacts | 4 |
|---|---|
| Color | BLUE |
| Protection degree | IP67 |
| Locking | Push-on (no locking) |
| Mating cycles (times) | 50 Times |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 mΩ |
