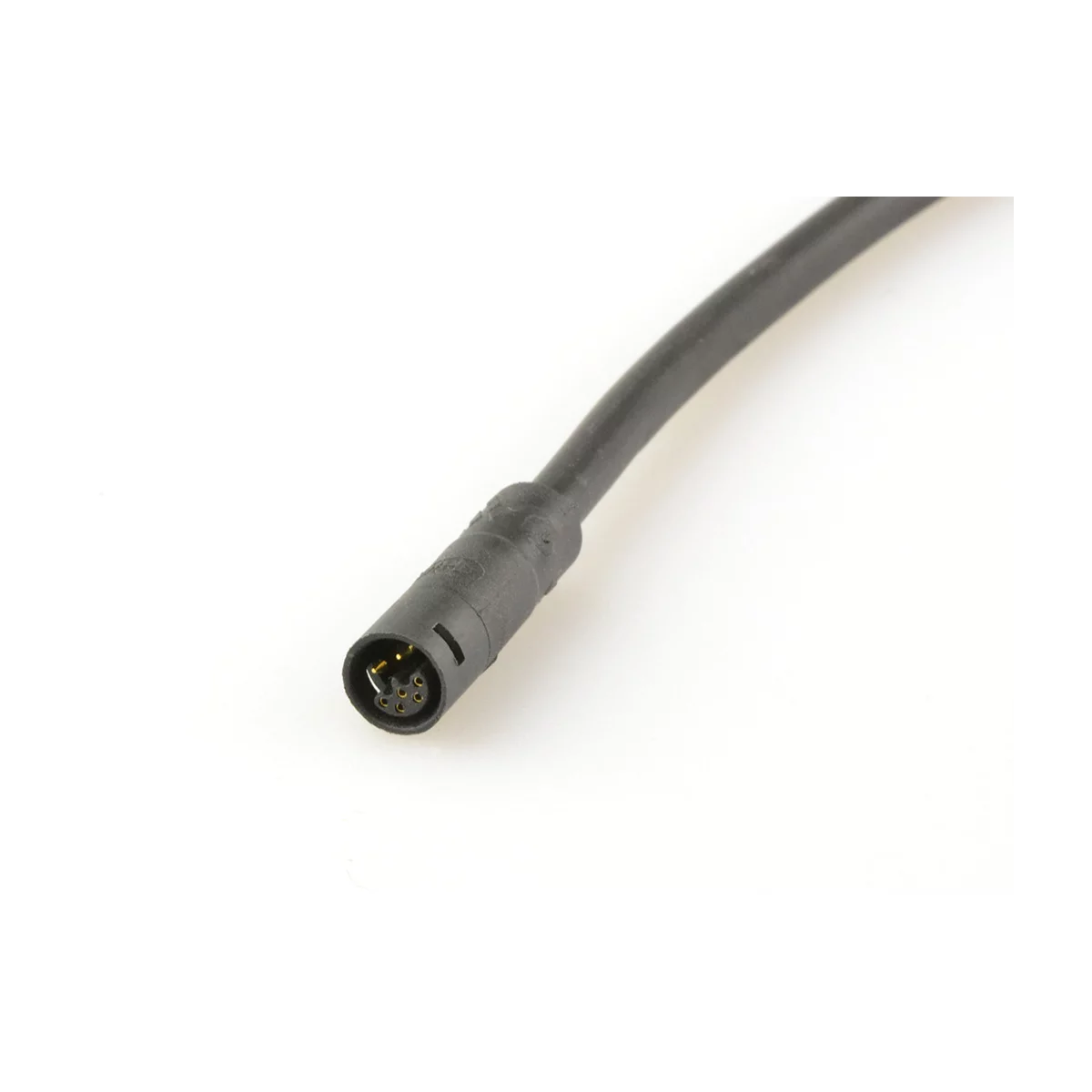

Male cable connector
Z707DG P 00 E9 1000
Specificaties
General Characteristics
| Number of contacts | 7 (2+5) |
|---|---|
| Connector shape | Plug |
| Gender | Male |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking | Push-on (no locking) |
| Mating cycles (times) | 200 Times |
| Fitting length | 40 mm |
| Cable Length | 1000 mm |
| Terminal type | NA |
Electrical Parameters
| Rated current | 5 / 2 A |
|---|---|
| Rated voltage | 48V AC/DC |
| Withstanding voltage | 500 V |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 mΩ |
Material
| Material jacket | TPU |
|---|---|
| Insulation wire | FEP |
| Contact plating | Gold |
