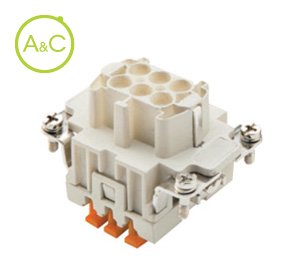

Inserts, 6P + PE, Spring terminal connections
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CSHF 06 |
| Pollution Degree | 3 |
| Number Of Poles | 6 |
| Connection Type | Spring clamp connection |
| Contact Type | Female |
| Extra Information |
With protective conductor With wire protection |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Min. Cross Section Without End Sleeve | 0.14 mm² |
| Max. Cross Section Without End Sleeve | 2.5 mm² |
| Min. Cross Section Solid Wire | 0.14 mm² |
| Max. Cross Section Solid Wire | 2.5 mm² |
| Required Housing |
C-type size 44.27 C7 size 44.27 Simplex size 44.27 V-type size 44.27 BIG size 44.27 T-type size 44.27 T-type/W size 44.27 T-Type/H size 44.27 T-type/C size 44.27 W-type size 44.27 EMC size 44.27 Central Lever size 44.27 High protection IP68 LS-type size 44.27 COB size 44.27 |
| Diameter Male Contact | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Material Contact | Brass |
| Plating Of Contact | Silver |
| Max. Rated Current | 16 A |
| Nominal Rated Voltage | 500 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 6 kV |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
