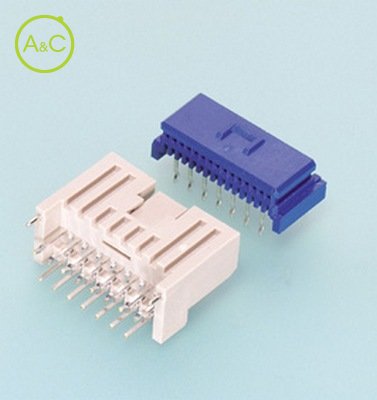

Plug for JET Connector
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 9
- 15
| Article Number | 09P-JET |
| Number Of Contacts | 9 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.25mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.25 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Characteristics differ between variants of a connector

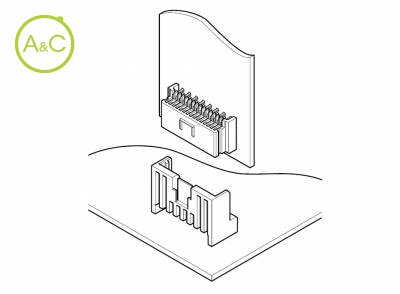

Self-supporting style board-to-board connectors. Both secure lock and friction lock type receptacles are available.
The connector halves can be easily mated, yet have a high retention force because of the housing lock mechanism.
Good connection is assured even after severe shock & vibration
Because of their construction, even severe shocks and long periods of vibration will not cause circuit interruption. Both secure lock and friction lock connectors are available.
Correct and secure mating
The connector halves can be easily mated, yet have a high retention force because of the housing lock mechanism.
RoHS Compliant
