Applicable Wire
- AWG 24 to 20
| Article Number | SDF-01T-1.0A | SDF-01T-1.3AS |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | Single-Circuit Disconnectable Crimp Style | Single-Circuit Disconnectable Crimp Style |
| Applicable Wire Size | 0.2 to 0.5 ( AWG #24 to #20) mm² | 0.2 to 0.5 ( AWG #24 to #20) mm² |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm | Single-Circuit mm |
| Rated Current (ac/dc) | 5 A | 5 A |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark* | Applicable pin and post: WR-1009 | Applicable pin and post: RT-01T-1.3B |
Characteristics differ between variants of a connector

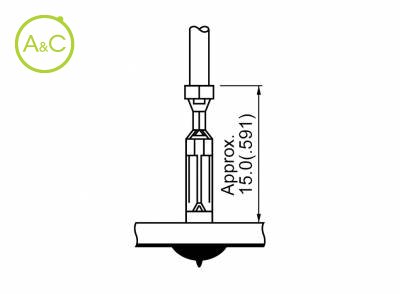

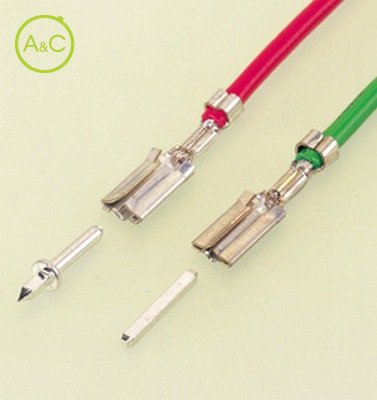

This terminal is used for 1.3mm (.051") diameter and 1.0mm (.039") square contacts.
It can connect wires on high-density printed circuit boards in the same manner as JST's SMF connectors.
The terminal provides a high pressure connection to the post for exceptional reliability.
RoHS Compliant
