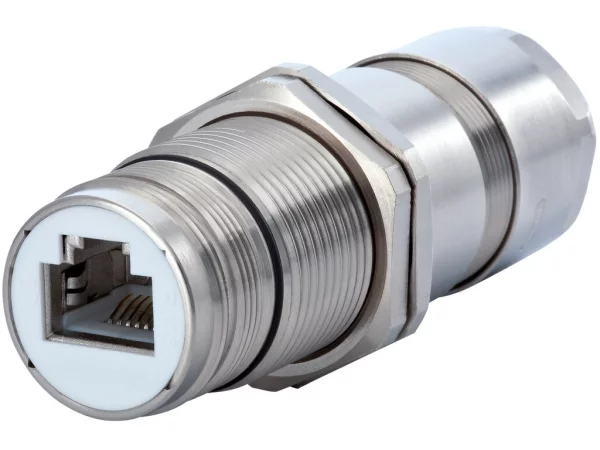

Single Hole Panel Connector with strain relief
Rear Mount
Single hole
7.R52.408.000
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Number of contacts | 8 |
|---|---|
| Gender of required insert | Male |
| Connector diameter | 46 mm |
| Connector locking system | Screw |
| Protection degree | IP67 |
| Terminal type | Coupler |
| Thread | M25 x 1,5 |
| Remark 1 | Incl. 8 poles coupler, fully occupied. Locking Nut included |
Electrical parameters
| Nominal current | upon request |
|---|---|
| Nominal voltage | upon request |
Material
| Housing material | Brass Alloy, Die Cast |
|---|---|
| Housing plating | Nickel Plated |
