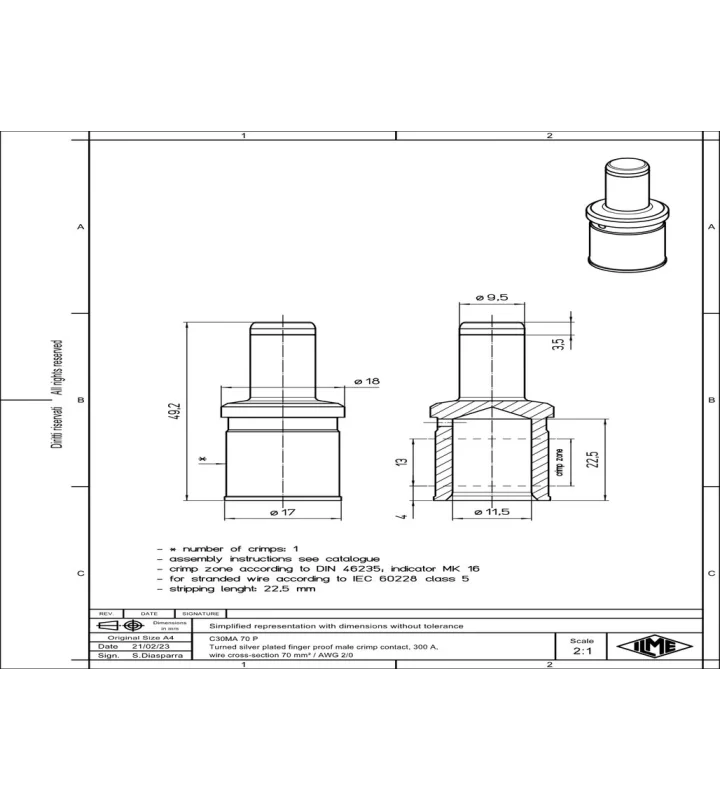

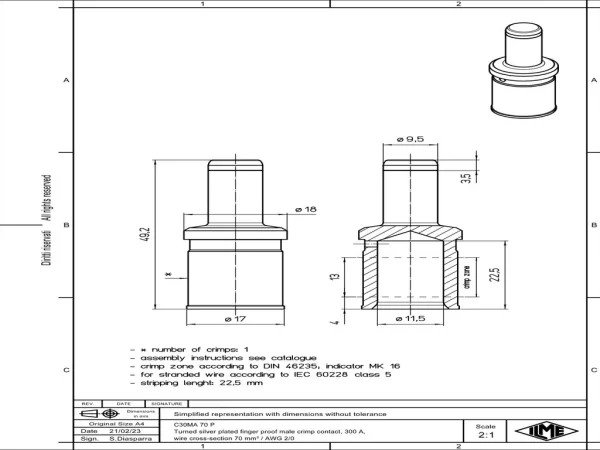

male contact, 70mm², silver, turned crimp, 300A, series C30
C30MA 70 P
Specificaties
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Male |
| Min. Cross section | 70 mm² |
| Max. Cross section | 70 mm² |
| AWG size | 2/0 |
| Diameter male contact | 9.5 mm |
| Wire strip length | 22.5 mm |
Electrical parameters
| Max. rated current | 300 A |
|---|
Material
| Material contact | Copper alloy |
|---|---|
| Plating of contact | Silver |
