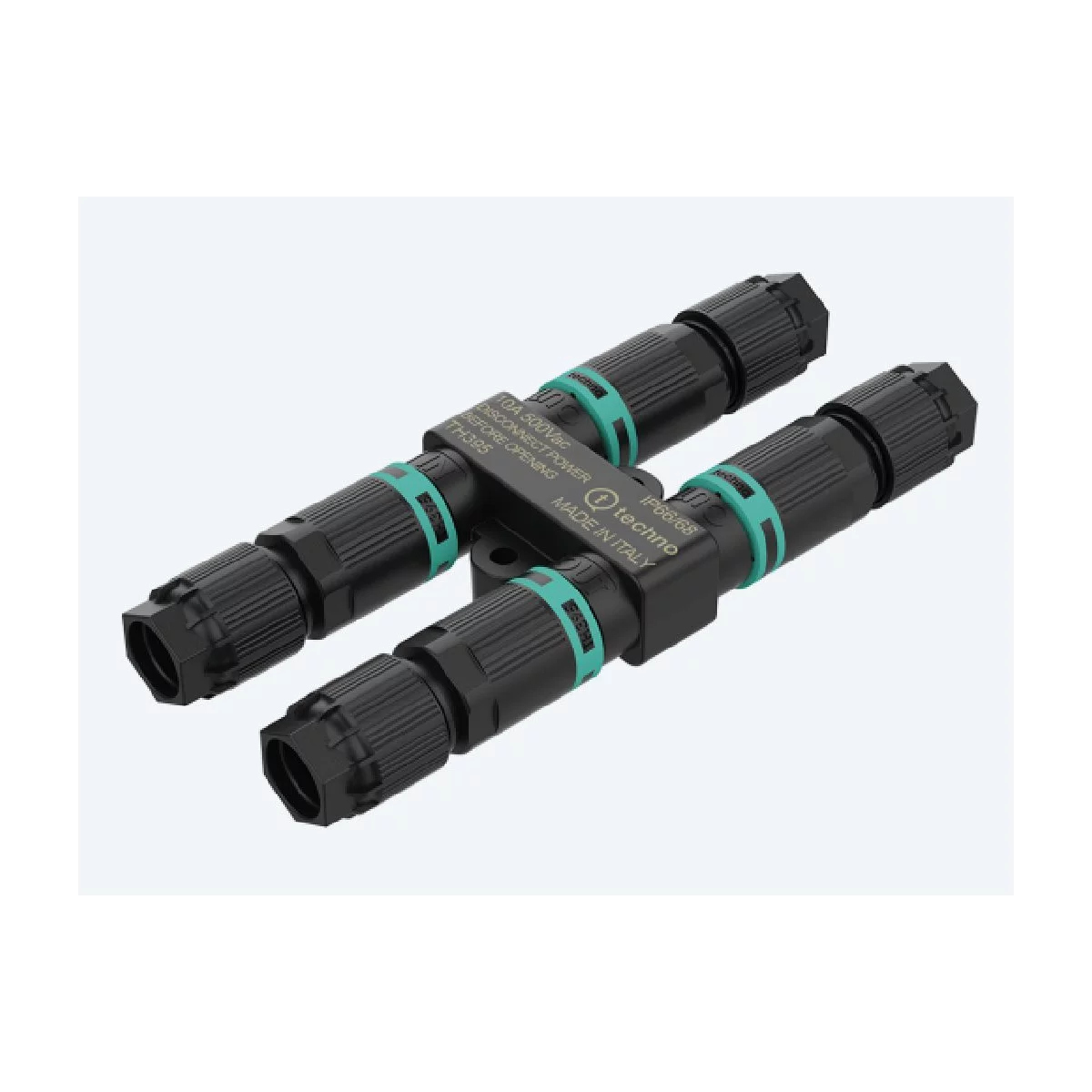

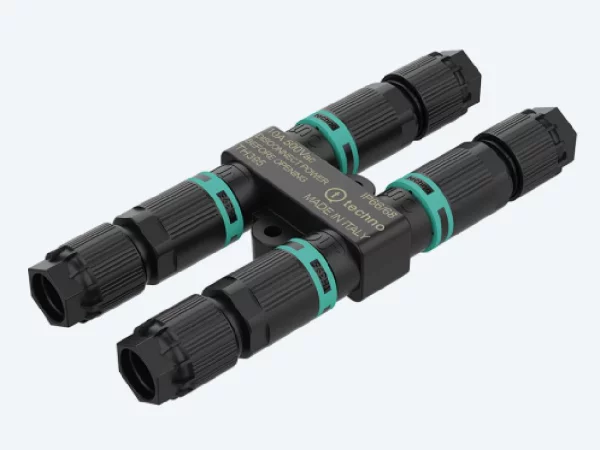

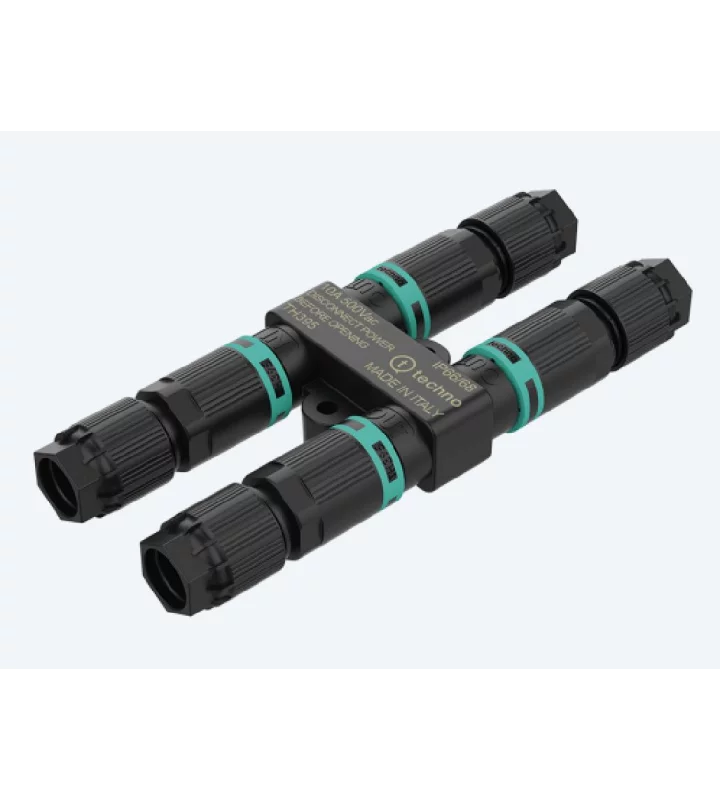

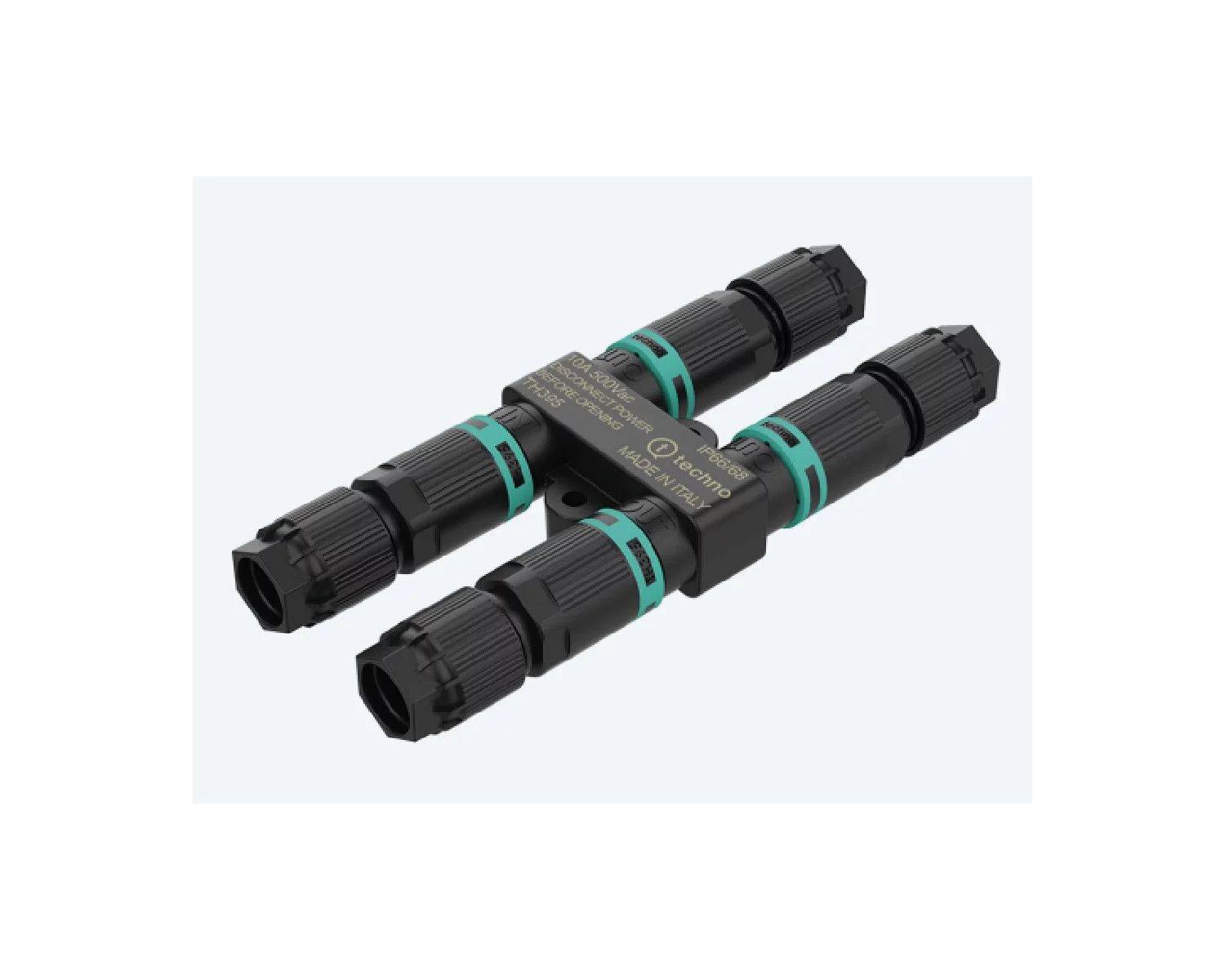

Micro Junction Connector "H" 2p Screw L-N
IP66/IP68
THB.395.H2E
Specifications
General Characteristics
| Series | TEETUBE |
|---|---|
| Subseries | TH395 |
| Number of contacts | 2 |
| Color | Black (Plastic components) - Green (Rubber components) |

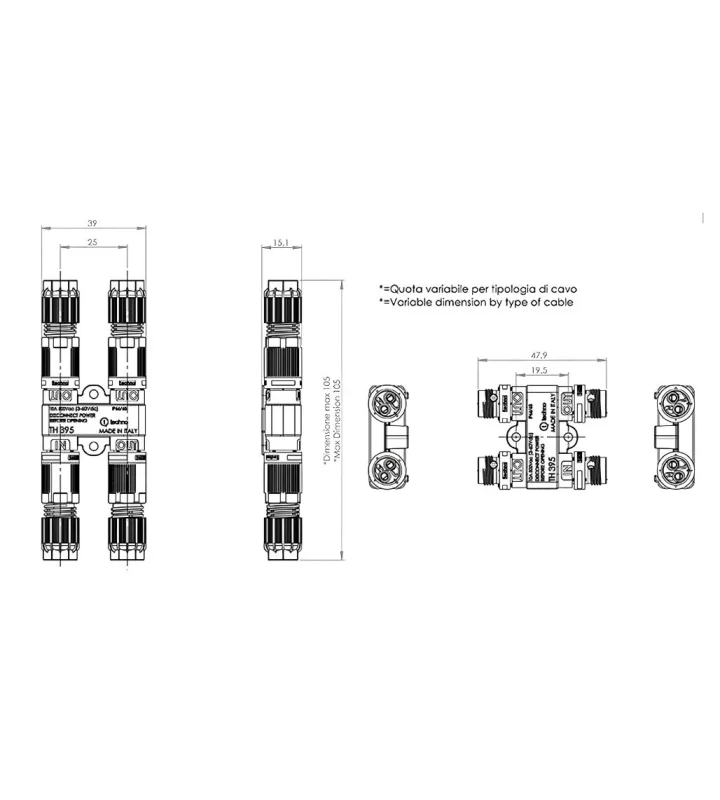

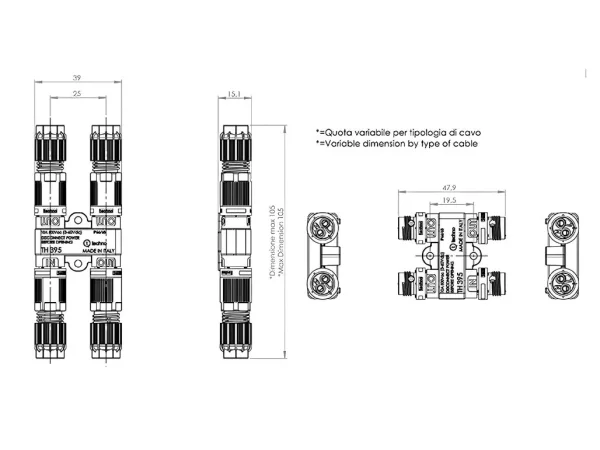

| Inner dimensions | 105,0 x 39,0 x 15,1 |
| Product shape | H |
| Contact terminals | Screw |
| Cable section | 0,25 - 1,5 mm² |
| Min-max cable diameter | 5,4 - 7,9 mm |
| Protection degree | IP66/IP68 |
| Protection degree details | *IP68 (2m/24h) |
| Max. temperature | 85 °C |
Electrical parameters
| Rated current | 10 A |
|---|---|
| Rated voltage | 500 V |
| Nm | M2 - 0.2 |
Material
| Body | TPE |
|---|---|
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA68 UL94 V0 |
| Contact screw terminals | Brass |
| Screw | Steel |
