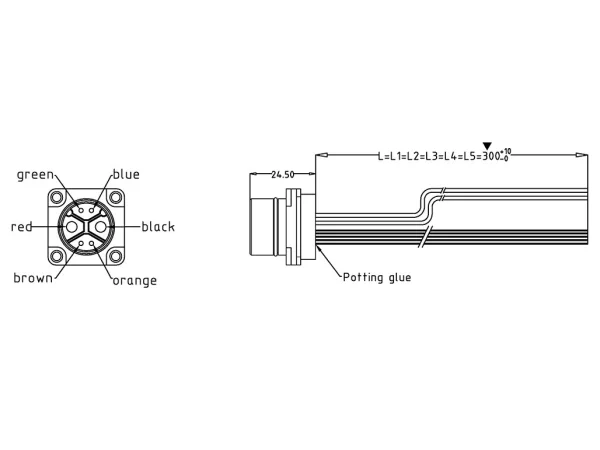

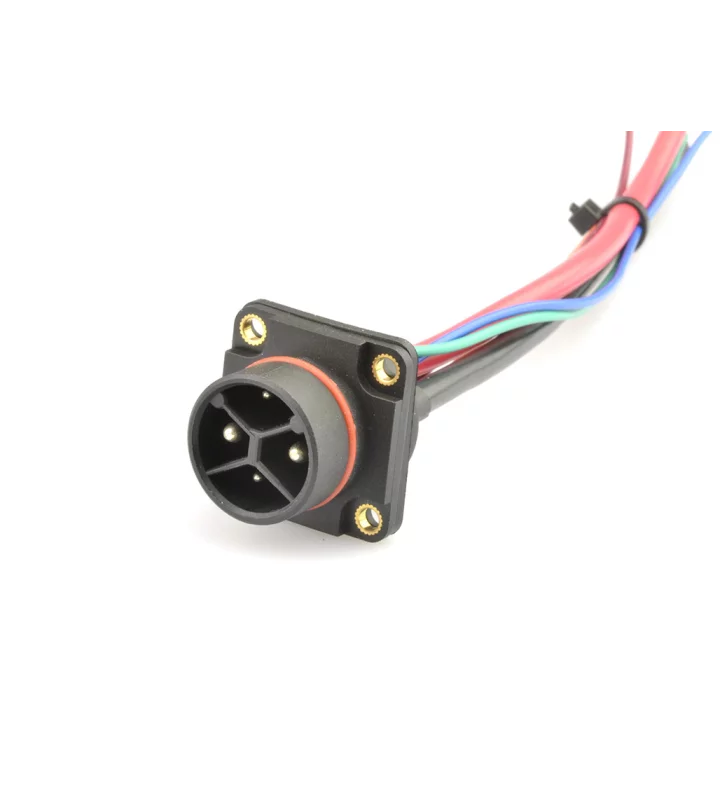

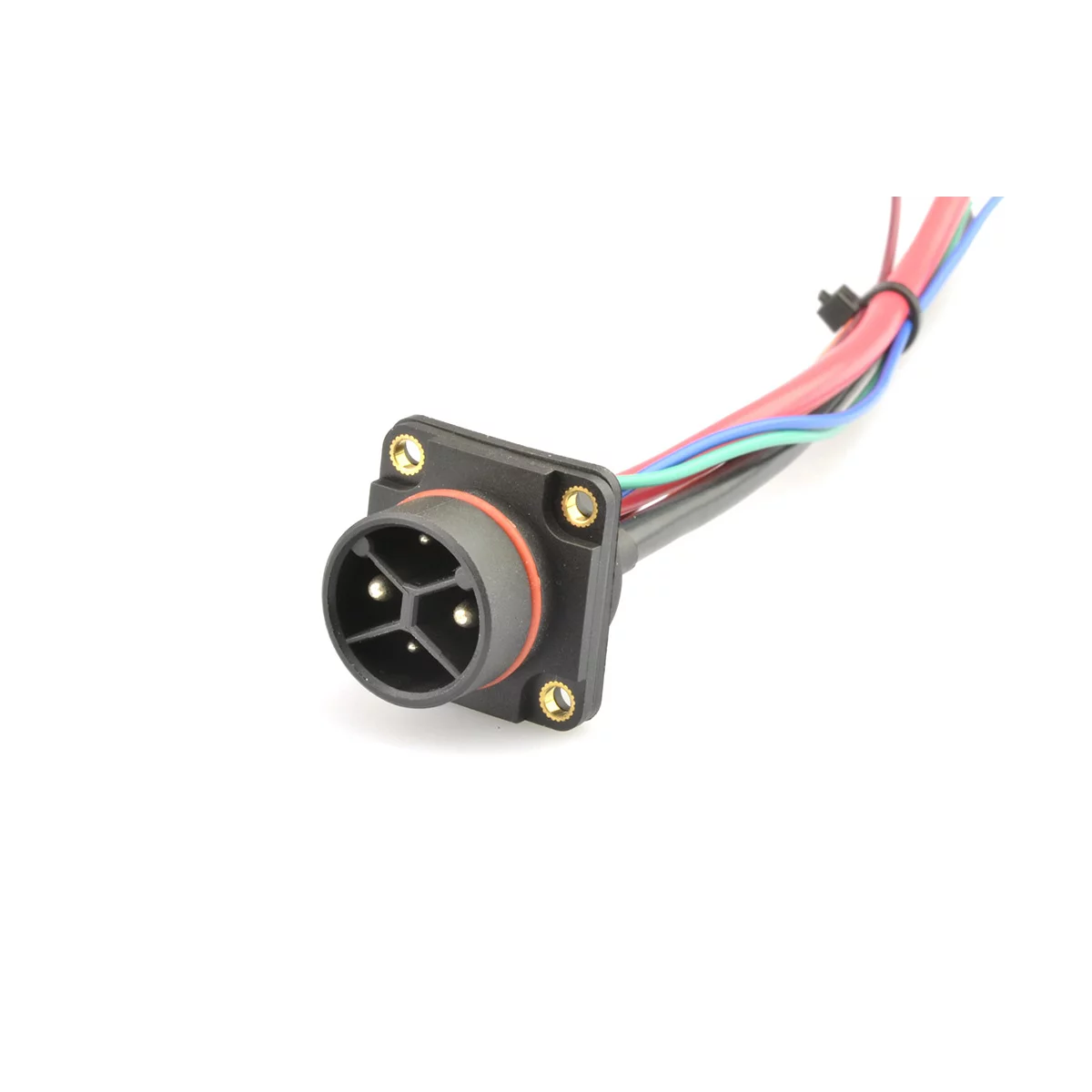

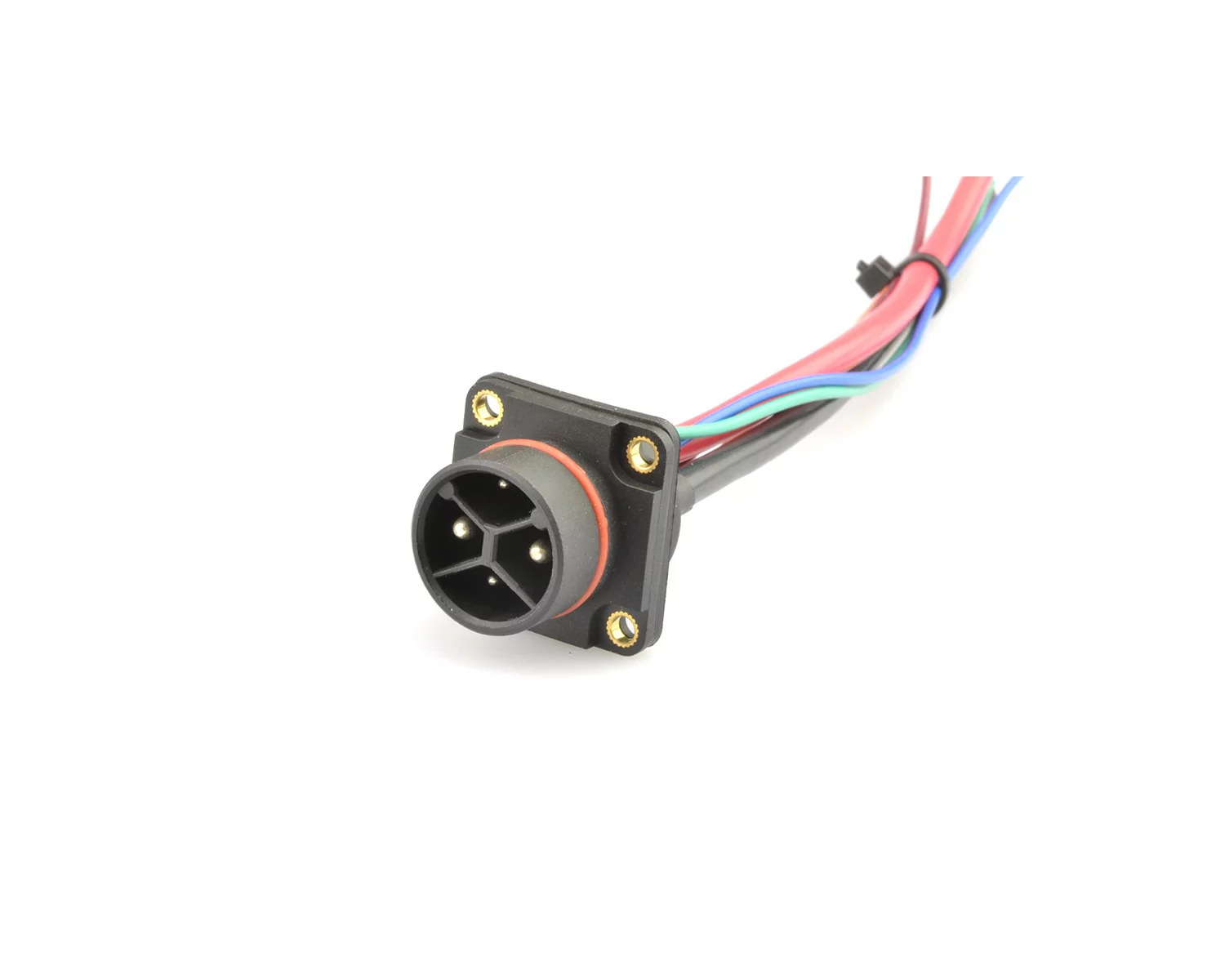

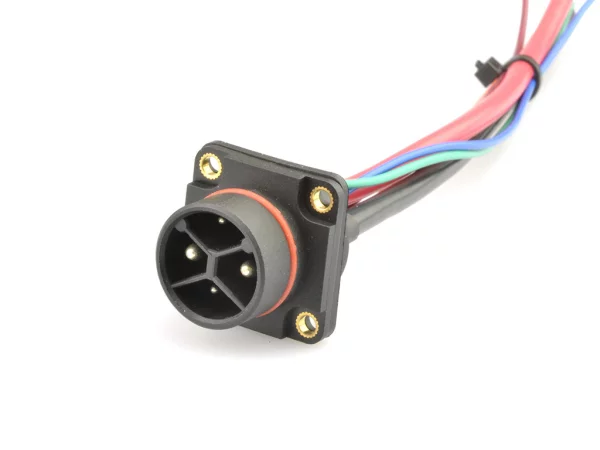

Battery male panel mount connector 48V code, no locking (push-on)
Only for use in 48V applications
Z624BG C 03 D1 0300

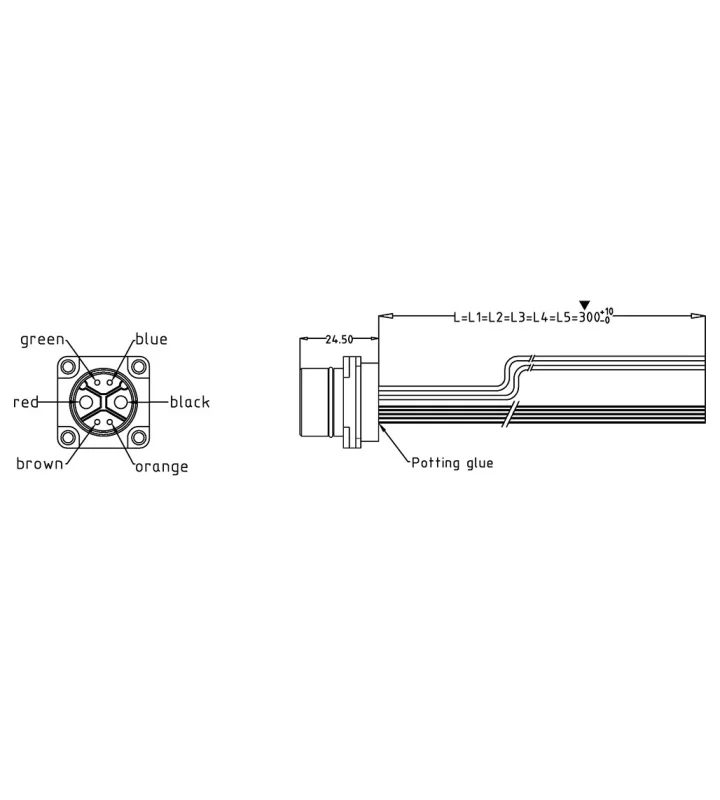

Specifications
General Characteristics
| Number of contacts | 6 (2+4) |
|---|---|
| Connector shape | Panel mount |
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Mating cycles | 3000 Times |
| Connector diameter | 28.5 mm |
| Cable Length | Single wires 300 |
| Wire section | 2 x 2,0 + 4 x 0,34 |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 25 / 5 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Material of contact | Phosphor bronze |
|---|---|
| Contact plating | Gold over Nickel |
Variations
| Item number | Connector shape | Number of contacts | Rated current | Rated voltage | Series | Gender | Material of contact | Subseries | Color | Contact plating | Max. insulation resistance | Max. contact resistance | Upper temperature | Lower temperature | IP Protection | Locking | Mating cycles | Nominal voltage | Connector diameter | Cable Length | Application | Wire section | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Z624BG C 03 DR 0300 | Panel mount | 6 mixed layout | >30 - ≤40 A | ≤5 A | 48 V AC / 60 V DC | Battery | Male | Phosphor bronze | Z624B | Black | Gold over Nickel | ≥20 MΩ | ≤10 mΩ | 80 °C | -25 °C | IP67 | Push-on (no locking) | 3000 Times | ≤200 V | 28.5 mm | Single wires 300 | Bike Sharing | E-Bike | E-Cargo Bike | E-Scooter | 2 x 4,0 + 4 x 0,20 | Other cable length/type on request |
| Z624BG C 03 DR 0300 |
