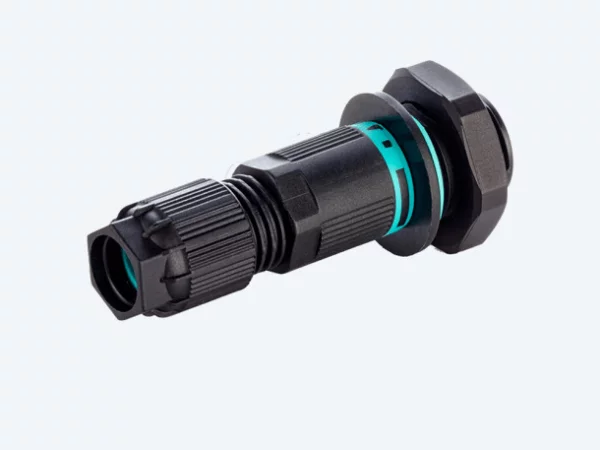

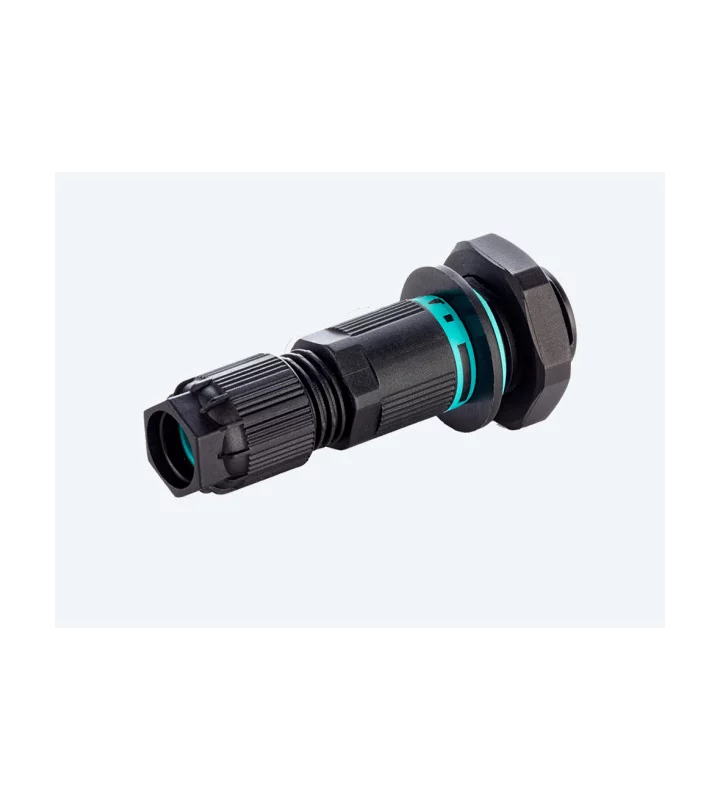

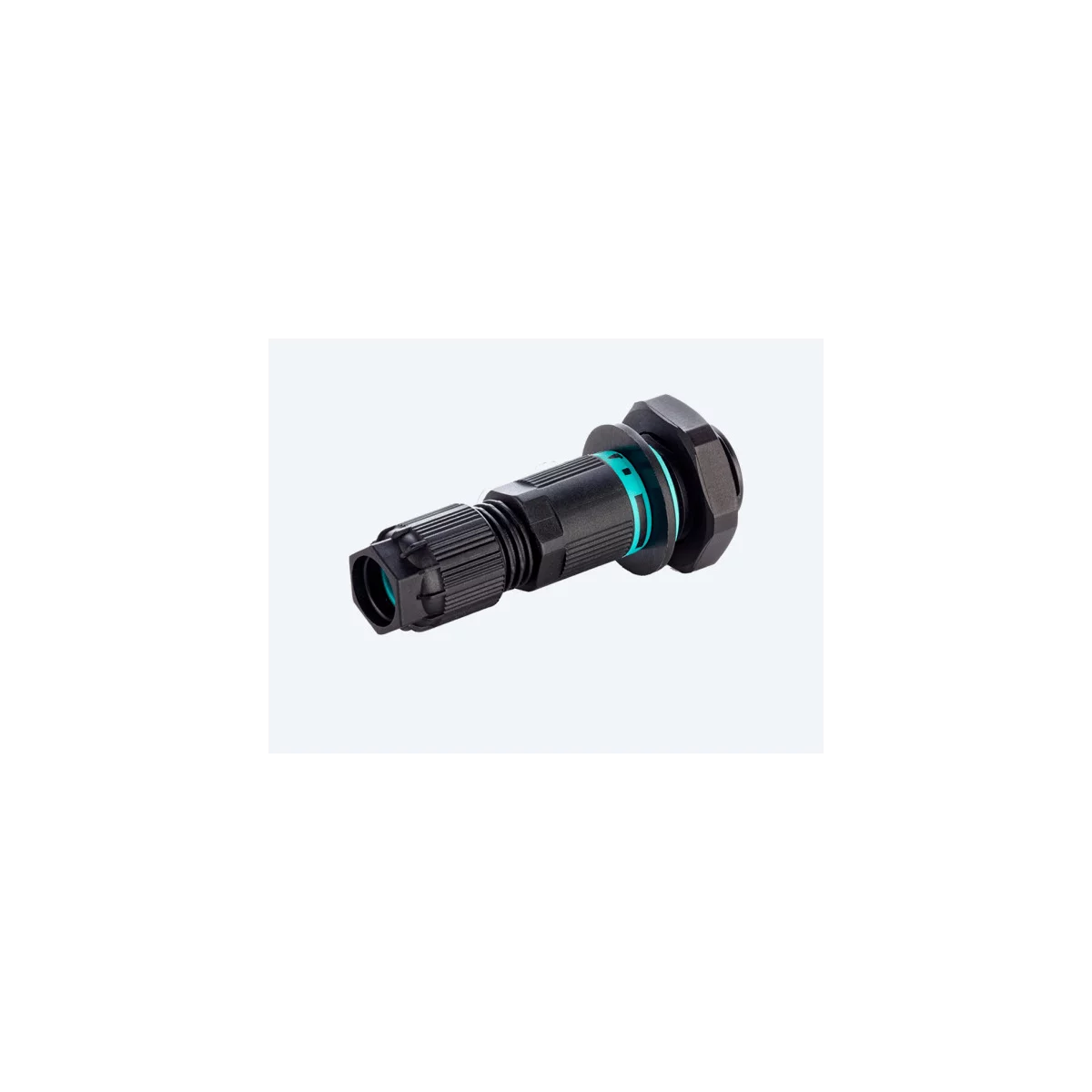

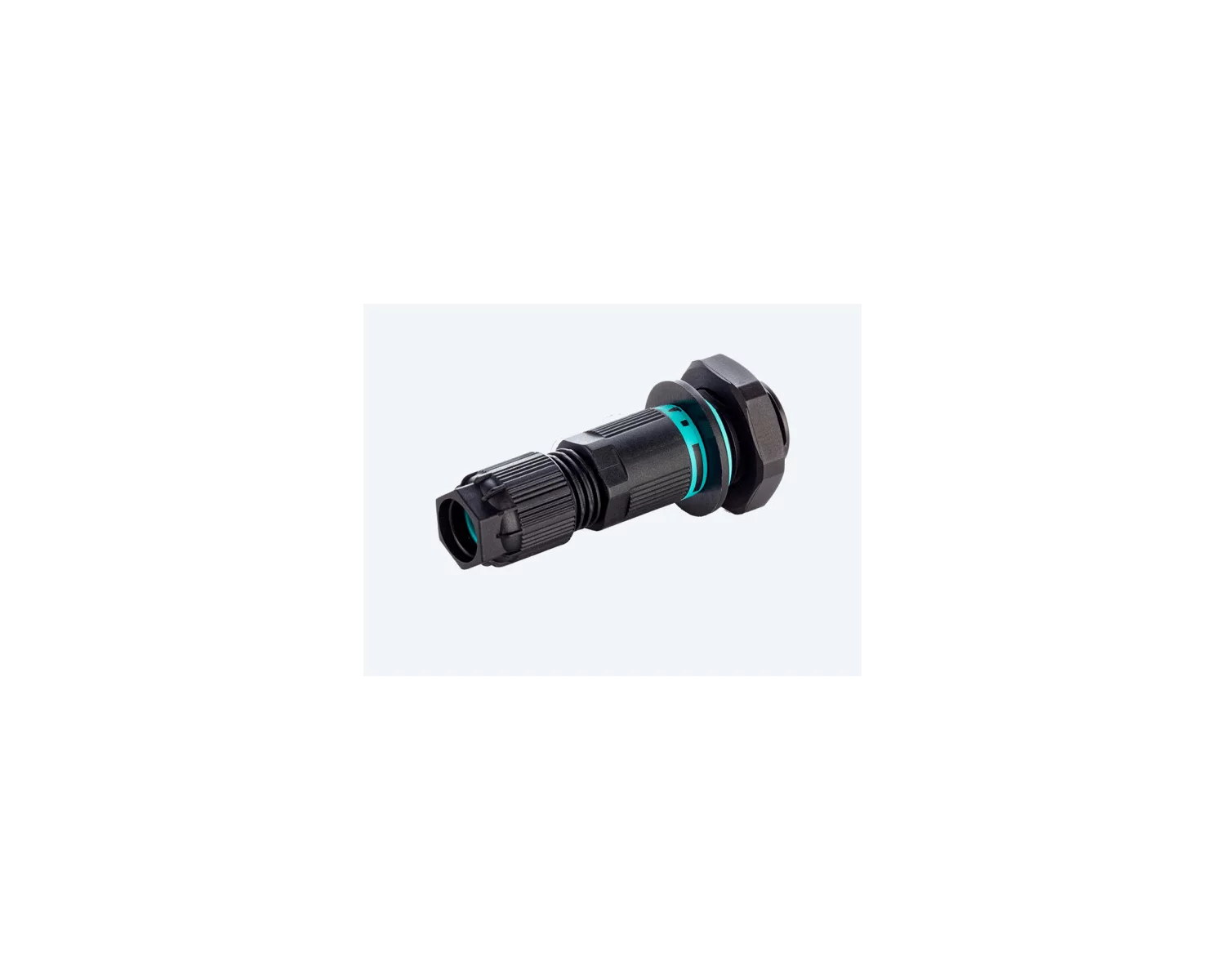

Micro Joint panel-mounted Connector M16 2p screw L-N
IP66/IP68
THB.395.N2E
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEETUBE |
|---|---|
| Subseries | TH395 |
| Number of contacts | 2 |
| Color | Black (Plastic components) - Techno green (Rubber components) |

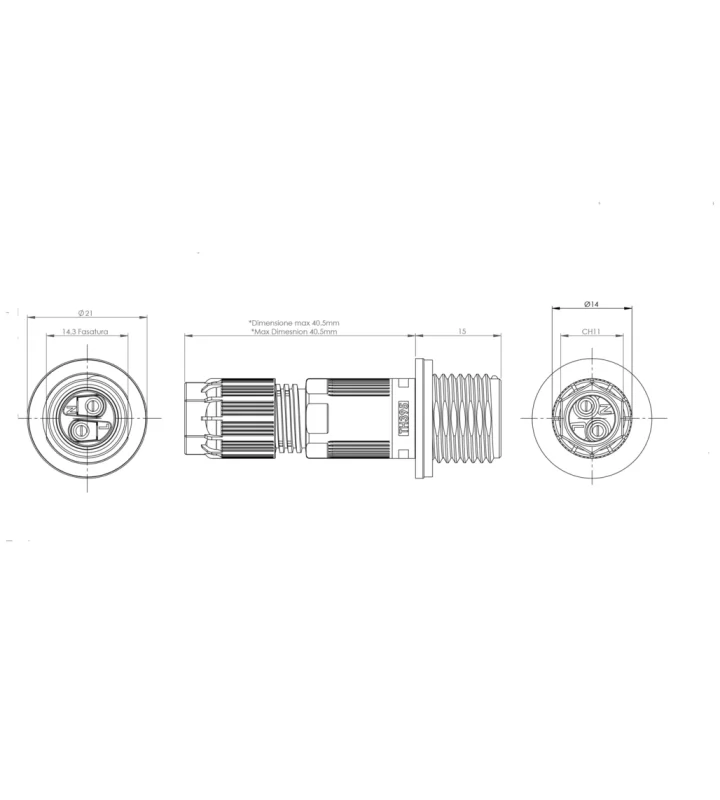

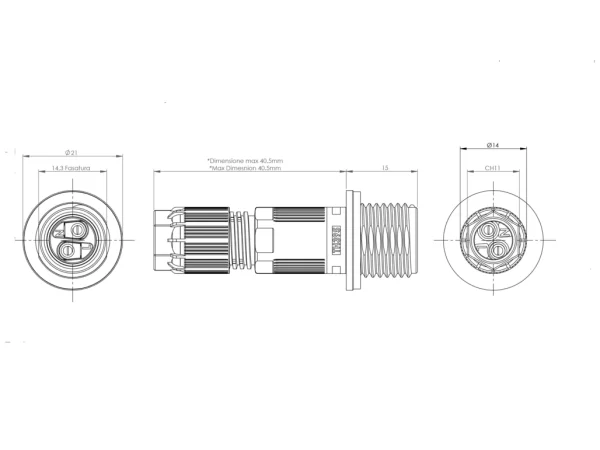

| Inner dimensions | Ø 14.0 x 76.0 |
| Contact terminals | Screw |
| Cable section | 0,25 - 1,5 mm² |
| Min-max cable diameter | 5,4 - 7,9 mm |
| Cable entries/exits | 2ways |
| Protection degree | IP66/IP68 |
| Protection degree details | *IP68 (2m/24h) |
| Max. temperature | T85 |
| Tracking index | PTI 250 |
Electrical parameters
| Rated current | 10 A |
|---|---|
| Rated voltage | 500 V |
Material
| Body | PA66 GF UL94 V0 |
|---|---|
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 UL94 V0 |
| Contact screw terminals | Brass |
| Screw | Steel |
