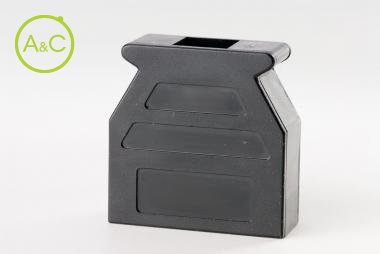

Plastic hood black and metallized with slide-/clip locking and 3 cable outputs

  • Hoods as single parts
Download product sheet

Number Of Poles

  • 9
  • 15
  • 25
  • 37
  • 50
Article Number 07 09 0BT 000 07 09 0M 000
Number Of Contacts 9 9
Upper Temperature +90 °C +90 °C
Lower Temperature -20 °C -20 °C
Plating Nickel plated copper Nickel plated copper
Remark * Multi opening possible Multi opening possible
Material ABS UL 94-V0 ABS UL 94-V0

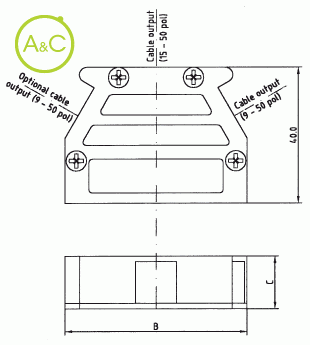

Extra Information A two-part hood providing 3 cable outputs (9 pole 2 cable outputs) Large interior space for your wiring A two-part hood providing 3 cable outputs (9 pole 2 cable outputs) Large interior space for your wiring
Hood Version black Metallized
Locking Style Slide lock Clip Slide lock Clip
Cable Exit Straight Angled: 2x30°** Straight Angled: 2x30°**
Cable Fixing Clamp intern (al) Clamp extern (al) Crimp flange Clamp intern (al) Clamp extern (al) Crimp flange
Cable Diameter Internal Cable Clamp 4-10 4-10
Cable Diameter External Cable Clamp 4-14 4-14
Cable Diameter Crimping Flange 2,7-8,7 2,7-8,7
Material/surface Cover Screws ST Zinc plated ST Zinc plated
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
KT 07 KB
Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC
KT 07 GB
Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC
5815GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5815KDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5825GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5837GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5850GDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
5850KDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
5850LDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
