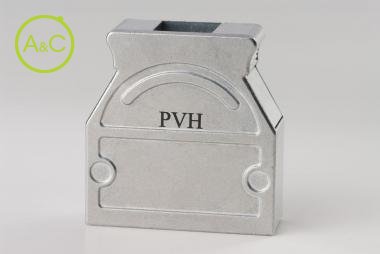

Diecast hood with 2-3 cable outputs slide-/clip locking

  • Hoods as single parts
Download product sheet

Number Of Poles

  • 9
  • 15
  • 25
  • 37
  • 50
Article Number 07 09 DC 000
Number Of Contacts 9
Upper Temperature +90 °C
Lower Temperature -20 °C
Remark Crimping flange must be ordered seperately
Material zn alloy
Extra Information Easy assembling by pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjuntion with crimp flange Multi opening possible
Locking Style Slide lock Clip lock
Cable Exit Straight 180° Angled: 2x30°
Cable Fixing Crimp flange
Cable Diameter Crimping Flange 2,7-8,7
Material/surface Locking Screws Diecast ST tin plated
Material/surface Cover Screws ST Zinc plated
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
KT 07 KB
Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC
KT 07 GB
Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC
5815GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5815KDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5825GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5837GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5850GDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
5850KDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
5850LDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
