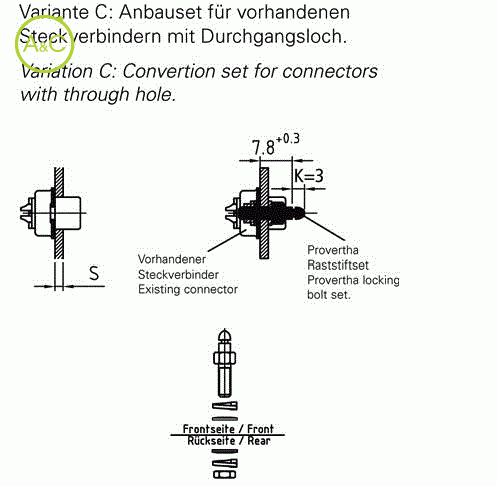

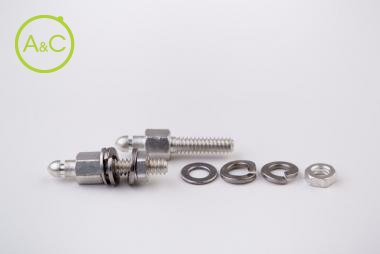

Convertion set for connectors with trough hole

103 TA 002

103 TA 002

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Thread

4-40 UNC
M3

Article Number	103 TA 002	103 T 1002	103 T 15002	103 T 172002
Remark	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head
Panel Thickness S	/	1,0-1,3	1,5-1,8	1,7-2,0

Article Number	103 M3TA 002	103 M3T 1002	103 M3T 15002	103 M3T 2002
Remark	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head
Panel Thickness S	/	1,0-1,3	1,5-1,8	2,0-2,3

Eigenschappen verschillen tussen varianten en subvarianten
