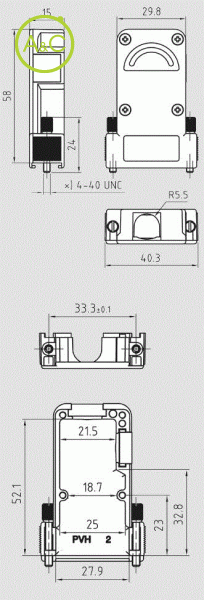

Long die cast hood with knurled screws

  • Hoods as seperate parts in plastic bag
  • Cable output 180° and 90°, External cable clamp/crimp flange
Download product sheet

Number Of Poles

  • 15
Article Number 118150DC25000 118151DC25000
Number Of Contacts 15 15
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Thread UNC 4-40 M3
Material zn alloy zn alloy
Extra Information Extend installation space for big cable diameter, mixed layout D-Sub, EMC electronic housing Simple assembly by only a few single parts and pre-assembled locking screws Extend installation space for big cable diameter, mixed layout D-Sub, EMC electronic housing Simple assembly by only a few single parts and pre-assembled locking screws
Locking Style knurled screw knurled screw
Cable Exit Straight 180° Angled: 1x90° Straight 180° Angled: 1x90°
Cable Fixing Cable clamp extern (al) crimping flange Cable clamp extern (al) crimping flange
Cable Outputs 2 2
Cable Diameter External Cable Clamp 4-14 4-14
Cable Diameter Crimping Flange 3,7-8,7 3,7-8,7
Material/surface Locking Screws Diecast ST tin plated ST tin plated
Material/surface Cover Screws ST Zinc plated ST Zinc plated
Eigenschappen verschillen tussen varianten en subvarianten
