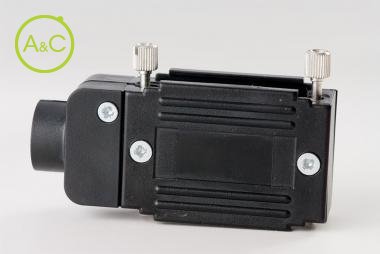

Modular hood system without connectors

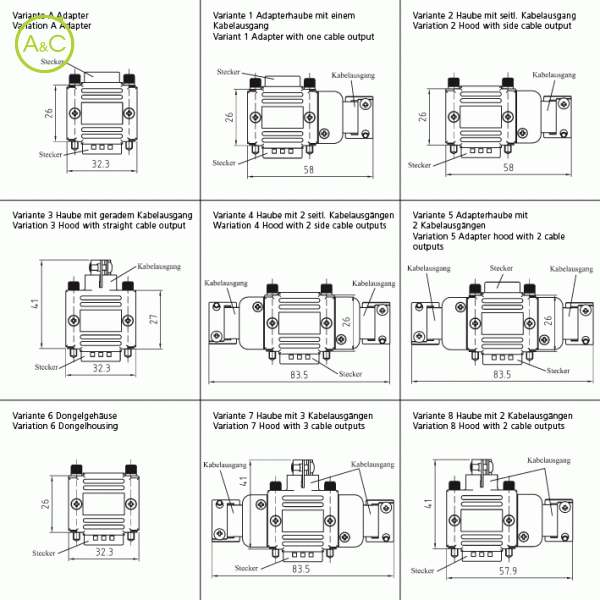

  • Variation 5 Adapter hood with 2 cable outputs
Download product sheet

Number Of Poles

  • 9
  • 15
  • 25
  • 37
Article Number 77 09 5B 77 09 5M
Number Of Contacts 9 9
Upper Temperature +90 °C +90 °C
Lower Temperature -20 °C -20 °C
Plating Nickel plated copper Nickel plated copper
Thread UNC 4-40 UNC 4-40
Material ABS UL 94-V0 ABS UL 94-V0
Extra Information You can select up to 3 cable outputs, adapter hood, distributor for up to 4 cables, dongle hood, transmission distributor, etc. Small height of 16 mm Big cable clamping area max. 10 mm You can select up to 3 cable outputs, adapter hood, distributor for up to 4 cables, dongle hood, transmission distributor, etc. Small height of 16 mm Big cable clamping area max. 10 mm
Hood Version black Metallized
Locking Style knurled screw knurled screw
Cable Exit Straight Angled: 2 x 90° Straight Angled: 2 x 90°
Cable Fixing Clamp intern (al) Clamp intern (al)
Cable Diameter Internal Cable Clamp 4-10 4-10
Material/surface Cover Screws ST Zinc plated ST Zinc plated
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
55 35 44T
Thumb screw tinned with slot and internal thread in the head, fitting for plastic hoods
55 35 33T
Thumb screw tinned with slot and internal thread in the head, fitting for plastic hoods
