Diecast adapter hoods

  • Adapterhousing as set in bag
Download product sheet

Number Of Poles

  • 9
  • 15

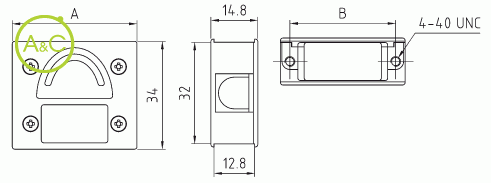

Article Number 77 09 DC 001
Number Of Contacts 9
Upper Temperature +90 °C
Lower Temperature -20 °C
Material zn alloy
Extra Information Can be used as BUS hood system Easy/Quick assembly
Locking Style Slide lock Clip lock
Cable Fixing Cable calmp external (al) Crimp flange
Cable Outputs 2 D-Sub outputs 2 side cable outputs
Cable Diameter External Cable Clamp 4-14
Cable Diameter Crimping Flange 2,7-8,7
Material/surface Locking Screws Diecast ST tin plated
Material/surface Cover Screws ST Zinc plated
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
KT 07 KB
Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC
5815GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5815KDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5825GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5837GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
