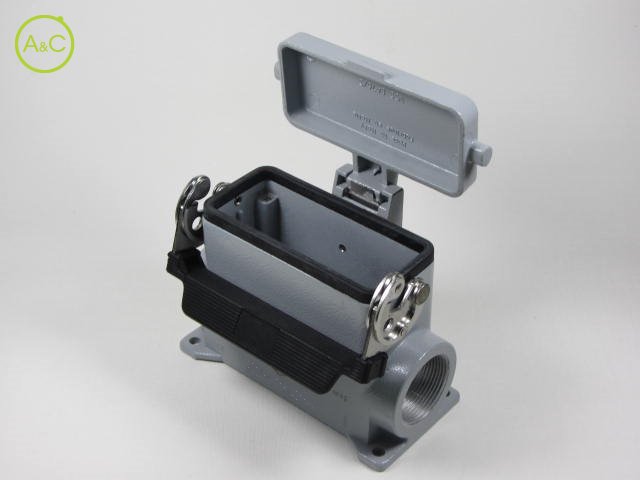

Surface mounting housings, high construction

With single lever and cover
Aluminium, PG entry

CAP 06 LS

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Entry

1xPG21
1xPG29
2xPG21
2xPG29

Article Number	CAP 06 LS
Protection Degree	IP65
Material Housing	Aluminium
Height	74 mm
Length	82
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	CAP 06 LS29
Protection Degree	IP65
Material Housing	Aluminium
Height	74 mm
Length	82
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	CAP 06 LS2
Protection Degree	IP65
Material Housing	Aluminium
Height	74 mm
Length	82
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Article Number	CAP 06 LS229
Protection Degree	IP65
Material Housing	Aluminium
Height	74 mm
Length	82
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Eigenschappen verschillen tussen varianten en subvarianten
