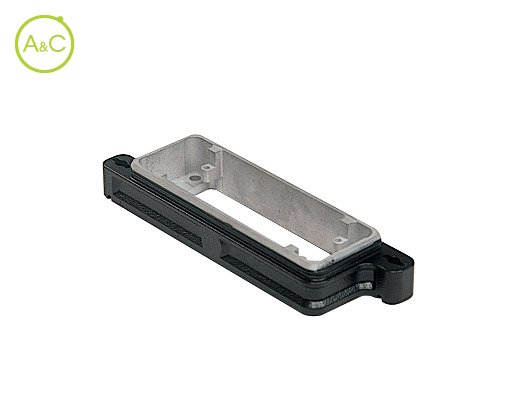

Bulkhead mounting housings, Bayonet locking

  • Aluminium
Download product sheet
  • General
Article Number CGI 10 B
Protection Degree IP68
Material Housing Aluminium
Height 29 mm
Length 146
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules;CDSH 18 P + PE
Locking Mechanism Bayonet
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 58 mm
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CGC 10 B
Covers for bayonet locking
CG 10 FL
Frame for bulkhead mounting housings
