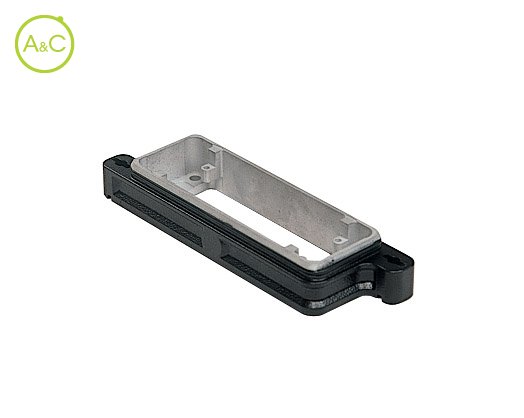

Bulkhead mounting housings, Bayonet locking

  • Aluminium
Download product sheet
  • General
Article Number CGI 24 B
Protection Degree IP68
Material Housing Aluminium
Height 29 mm
Length 193
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux) + PE; CMSH 10+2 (aux) + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism Bayonet
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 58 mm
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CGC 24 B
Cover for bayonet locking
CG 24 FL
Frame for bulkhead mounting housings
