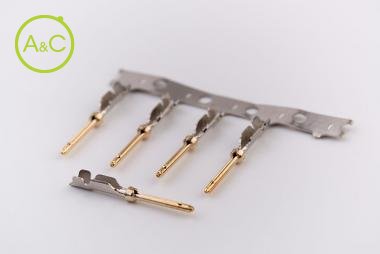

High Density D-Sub Crimp contacts

Heeft u nog vragen over dit product?

Download product sheet

Meer info over dit merk:

Article Number	CH052400G2	CH062400G2
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Contact Material	Cu alloy	Cu alloy
Gender	Male	Female
Awg Range	AWG 24-28	AWG 24-28
Awg Size	AWG 24-28	AWG 24-28
Current Rating At 20°c	VDE: 3,5 A CSA: 2,5 A UL: 3	VDE: 3,5 A CSA: 2,5 A UL: 3
Quality Class	Class 2 = 200 mating cycles	Class 2 = 200 mating cycles
Cross Section	0,22 - 0,08	0,22 - 0,08

Eigenschappen verschillen tussen varianten en subvarianten
