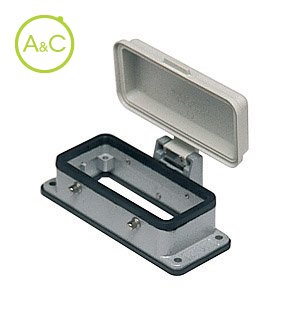

Bulkhead mounting housings

  • With 4 pegs and plastic cover
  • Aluminium
Download product sheet
  • General
Article Number CHI 16 CP*
Protection Degree IP65
Material Housing Aluminium
Height 29 mm
Remark May be combined with enclosures: CHO 16 X; CAO 16 X; CHV 16 X; CAV 16 X; MHO 16 X; MAO 16 X; MHV 16 X; MAV 16 X
Length 115.5
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CT-CTS 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CT-CTSE 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Inflammability Class Of Insulation Material Acc. With Ul94 V2
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 45.5 mm
Eigenschappen verschillen tussen varianten en subvarianten
