Ilme
- General

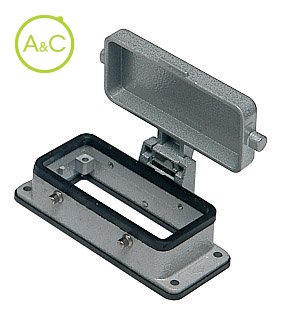

| Article Number | CHI 16 CS* |
| Protection Degree | IP65 |
| Material Housing | Aluminium |
| Height | 29 mm |
| Remark | May be combined with enclosures: CHO 16 X; CAO 16 X; CHV 16 X; CAV 16 X; MHO 16 X; MAO 16 X; MHV 16 X; MAV 16 X |
| Length | 115.5 |
| Extra Information |
Corrosion resistant UV resistant With hinged lid With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CD 40 P + PE; CT-CTS 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CT-CTSE 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE |
| Locking Mechanism | Double locking levers |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Below |
| Width | 45.5 mm |
Eigenschappen verschillen tussen varianten en subvarianten
