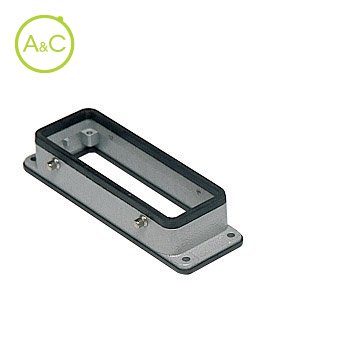

Bulkhead mounting housings

  • With 4 pegs
  • Aluminium
Download product sheet
  • General
Article Number CHI 24 C*
Protection Degree IP66
Material Housing Aluminium
Height 29 mm
Remark May be combined with enclosures: CHO 24 X; CAO 24 X; CHV 24 X; CAV 24 X; MHO 24 X; MAO 24 X; MHV 24 X; MAV 24 X
Length 142.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CT-CTS 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CT-CTSE 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 45.5 mm
Eigenschappen verschillen tussen varianten en subvarianten
