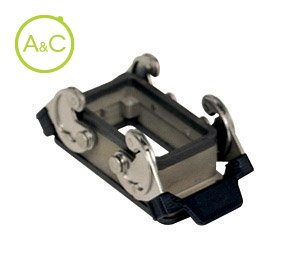

Bulkhead mounting housings, For electromagnetic compatibility

  • With lever
  • Aluminium
Download product sheet
  • General
Article Number CHIS 10
Protection Degree IP66
Material Housing Aluminium
Height 29 mm
Length 95.5
Extra Information Corrosion resistant
EMC Version
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CT-CTSE 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 59 mm
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CHCS 10
Cover for electomagnetic compatibility with pegs
