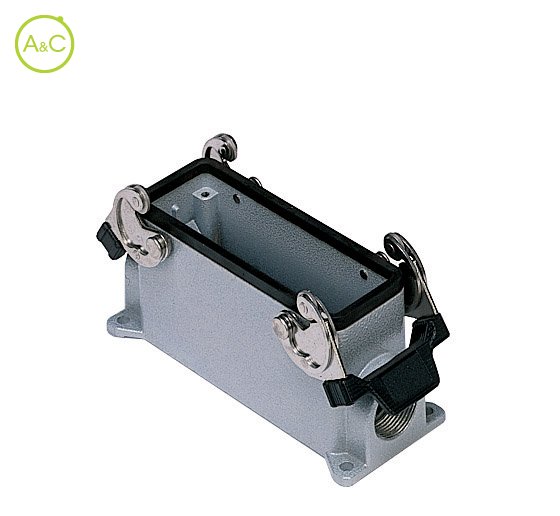

Surface mounting housings

  • With 2 levers
  • Aluminium, PG entry
Download product sheet

Entry

  • 1xPG21
  • 2xPG21
Article Number CHP 24
Protection Degree IP66
Material Housing Aluminium
Height 63 mm
Length 144
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Eigenschappen verschillen tussen varianten en subvarianten
