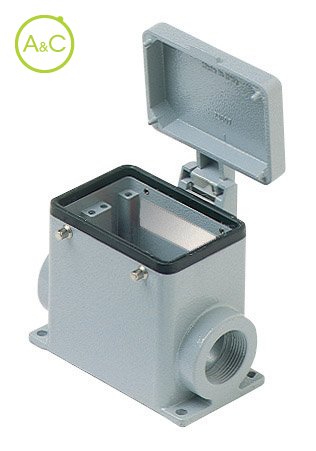

Surface mounting housings

  • With 4 pegs and cover, side entry
  • Aluminium, PG entry
Download product sheet

Entry

  • 1x21PG
  • 1x29PG
  • 2x21PG
  • 2x29PG
Article Number CHP 50 CS*
Protection Degree IP65
Material Housing Aluminium
Height 82 mm
Remark May be combined with enclosures: CHO 50 X;cao 50 X;CAV 50 X; MHO 50 X;MAO 50 X;MFO 50 X;MAV 50 X;MFV 50 X
Length 106
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57.3 mm
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CHC 50 G
Covers with 2 levers
