Ilme
- General

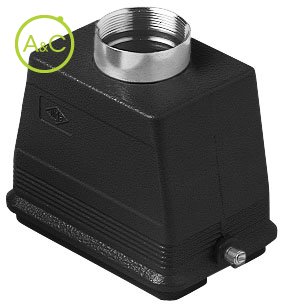

| Article Number | CHVW 48 L |
| Protection Degree | IP66 |
| Material Housing | Aluminium |
| Height | 121 mm |
| Length | 150.5 |
| Extra Information |
Corrosion resistant UV resistant With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CD 128P+PE; CDD 216P+PE; CDS 84P+PE; CSH 48P+PE; CNE-CSE 48P+PE; CCE 48P+PE; CSS 48 P+PE; CQE 92P+PE; CMCE 20+4(aux)P+PE; CME 20+4(aux)P+PE; CMSH 20+4(aux)P+PE; CMCE 32+4(aux)P+PE; CME 32+4(aux)P+PE; MIXO 6+6 modules; CDSH 84 P+PE |
| Locking Mechanism | Single locking lever |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Top entry |
| Width | 90 mm |
Eigenschappen verschillen tussen varianten en subvarianten
