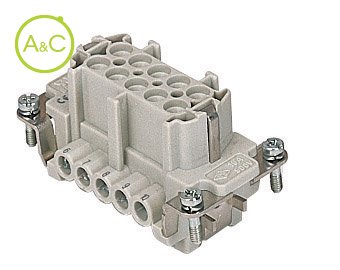

Inserts, 10P + PE, Screw terminal connections

  • Female inserts with female contacts
  • Silver plated contacts, Direct without plate
Download product sheet
  • General
Article Number CNEF 10 TX
Pollution Degree 3
Number Of Poles 10
Connection Type Screw connection
Contact Type Female
Extra Information With protective conductor
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Min. Cross Section With End Sleeve 0.25 mm²
Max. Cross Section With End Sleeve 2.5 mm²
Required Housing C-type size 57.27
C7 size 57.27
Simplex size 57.27
V-Type size 57.27
BIG size 57.27
T-type size 57.27
T-type/W size 57.27
T-type/H size 57.27
T-type/C size 57.27
W-Type size 57.27
EMC size 57.27
Central Lever size 57.27
high protection IP68
LS-type size 57.27
COB size 57.27
Diameter Male Contact 2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Material Contact Brass
Plating Of Contact Silver
Max. Rated Current 16 A
Nominal Rated Voltage 500 V
Over Voltage Category III
Rated Surge Voltage 6 kV
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CR VNTG
Screws for second earth terminal
CRBM
Coupling screws
CR 10 SC*,**
Ground terminals for shielded cables and for several earth connections clams
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
