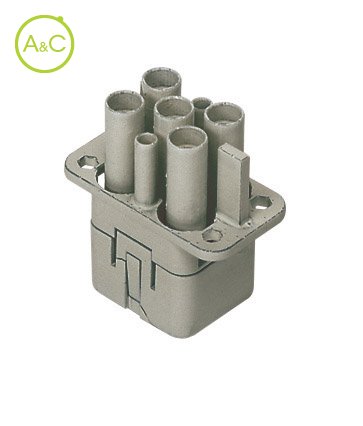

Inserts 4P+2P+PE , crimp connections

  • Female inserts for female contacts
Download product sheet
  • General
Article Number CQF 04/2
Pollution Degree 3
Number Of Poles 4 + 2
Connection Type Crimp connection
Contact Type Female
Required Crimp Contacts CDFA 0.3, CDFA 0.5, CDFA 0.7, CDFA 1.0, CDFA 1.5, CDFA 2.5, CDFD 0.3, CDFD 0.5, CDFD 0.7, CDFD 1.0, CDFD 1.5, CDFD 2.5, CXFA 1.5, CXFA 2.5, CXFA 4.0, CXFA 6.0, CDF2D 0.3, CDF2D 0.5, CDF2D 0.7, CDF2D 1.0, CDF2D 1.5, CDF2D 2.5, CDFJD 0.3, CDFJD 0.5, CDFJD 0.7, CDFJD 1.0, CDFJD 1.5, CDFJD 2.5
Colour Grey
Extra Information Contact insert without contacts
With protective conductor
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Required Housing C-type size 32.13
EMC size 32.13
Diameter Male Contact 4 poles: 4 mm 2 poles: 1,6 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 4 poles: 40A 2 poles: 10 A
Nominal Rated Voltage 4 poles: 400/690V 2 poles: 250 V
Over Voltage Category III
Rated Surge Voltage 4 poles: 6 kV 2 poles: 4 kV
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CR CPQ*
Plain coding pin for CDC, CQ,CQE,CCE,CMCE and MIXO 16A inserts
